Specifications
VIDEO | |
Network Video input | 8CH |
Network video input bandwidth | 80Mbps |
Video compression | H.265/H.264 /MJPEG |
Video output | HDMIoutput |
3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ | |
Video bit rate | 16-16000Kbps |
Video resolution | 4K/5MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QC IF |
Image display | 1/4/6/8/9/16 |
Snapshot | Support timing snapshot, manual snapshot, JPEG format |
Intelligent detection | Motion detection, video loss, video tampering, support FSAN SMART IPC intelligentfunction |
AUDIO | |
Audio compression | G.711U |
Audio input | 1CH (IPC complex audio input) |
Audio output | 1CH [RCA port] |
Bidirectional talk | / |
VIDEO RECORDING AND PLAYBACK | |
Video frame rate | 1-30 FPS |
Record method | Manual/external alarm/MD/timing/intelligent analysisalarm |
Playback ability | Support 1CH 4K/5MP/3MP; 4CH1080P 8CH sub-stream record sync playback |
Playback mode | Instant playback,Local video, local image, External file playback |
Video search | Time, calendar, event search, channel search(ANR,regular video, motion detection video, alarm video, intelligent detection video) |
Video playback | Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds,fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback |
STORAGE AND BACKUP | |
Interface | 2 SATA |
HDD capacity | Single max.6T |
Backup location | Local, network |
Backup method | USB mobile hard disk, U disk, network backup |
FUNCTION | |
Network protocol | TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P |
Interface protocol | ONVIF, RTSP, GB28181 |
Mobile surveillance | iOS and Android via FSEYE app |
Web Browser | Supports IE, Chrome, Firefox, Safari |
Display function | Channel shortcuts: Instant playback,3D positioning, show smart detection,show face detection,voice intercom,channel audio |
IPC timing | Manual/ auto/ timing /reconnect timing IPC timing |
Network detection | Flow monitoring, networkwireshark, network test |

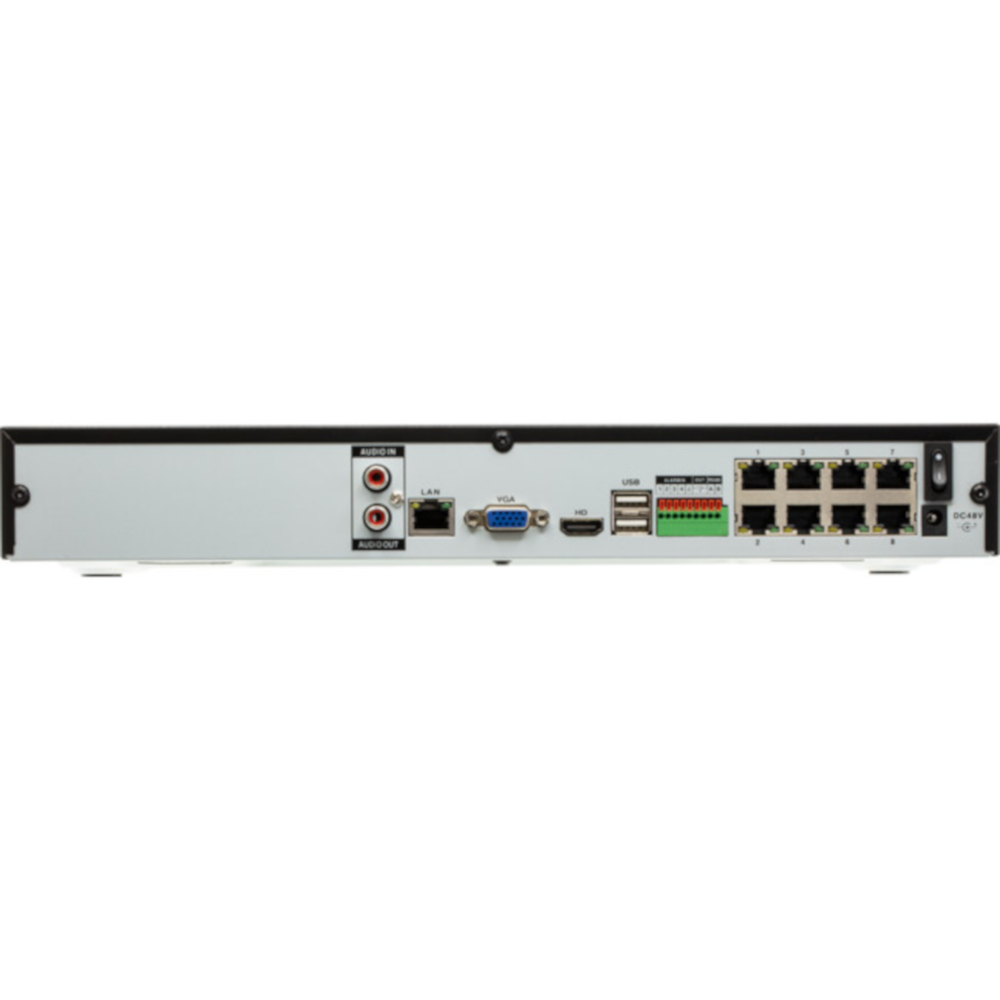

EXT INTERFACE | |
Network interface | 1x RJ45 100M/1000M adaptive Ethernet port |
PoE interface | 8CH (IEEE 802.3af) |
Alarm input | 4CH |
Alarm output | 1CH |
RS-485 | Support |
USB ports | 2x USB2.0 ports |
Audio | Audio input and output |
GENERAL | |
Power supply | DC 48V/2.5A |
Power consumption | <10W (Without HDD) |
Operation temperature/ humidity | -10°C ~ 55°C/10% 90% |
Dimension (mm) | 360(L)x242.4(W)x48(H)mm |
Weight | 2 kg |
(NVR8IQ4KV3)
12months
SKU | NVR8IQ4KV3 |
Model # | RC7-02008K-8P |
Barcode # | 9328202031396 |
Brand | DOSS |
Unit Of Measure | 1 |
Assembled Width | 2.850m |
