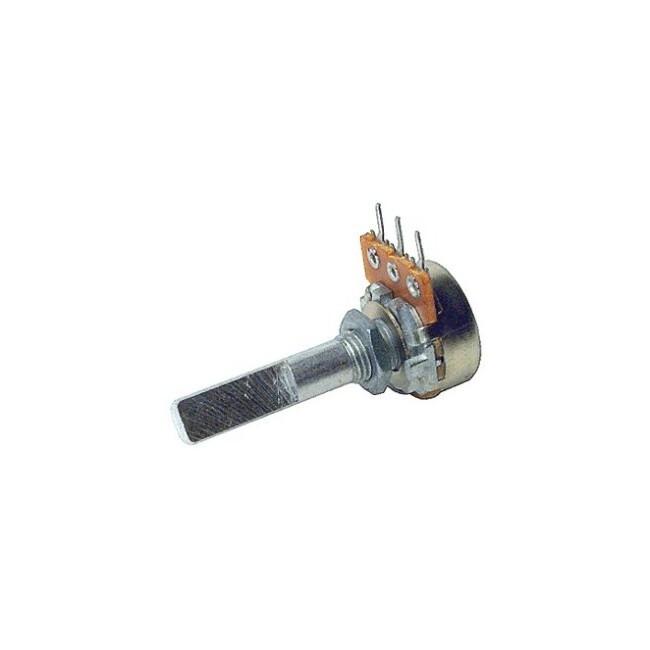

High quality rotary controls widely used throughout the industry for applications in the professional, industrial and entertainment electronics field. Produced by advanced manufacturing techniques using the highest quality materials, these rotary controls conform to: AS 1347 (1972) JIS 5049, EIA RC682, UL E359611 Specifications:
- Resistance Tolerance: 20%
- Rotation Angle: 20%
- Rated Temp. Range: -25°C to + 70°C
- Operational Noise: <47mV
- Insulation Resistance: 1000M �
- Isolation Voltage: 500V AC 1Min
- Limiting Element V: 200V
- Wattage Rating (Max): .2Watt
- Shaft & Bush : 20mm L
- Shaft : 6.00 mm Ø Flat 8 mm L
- Overall Ø: 16.8mm
- Value: 10K �
- Curve: Linear

(18PN10KB)

SKU 18PN10KB
Model # R2243
Barcode # 9321758030837
Unit Of Measure ea
Assembled Width 0.006m
