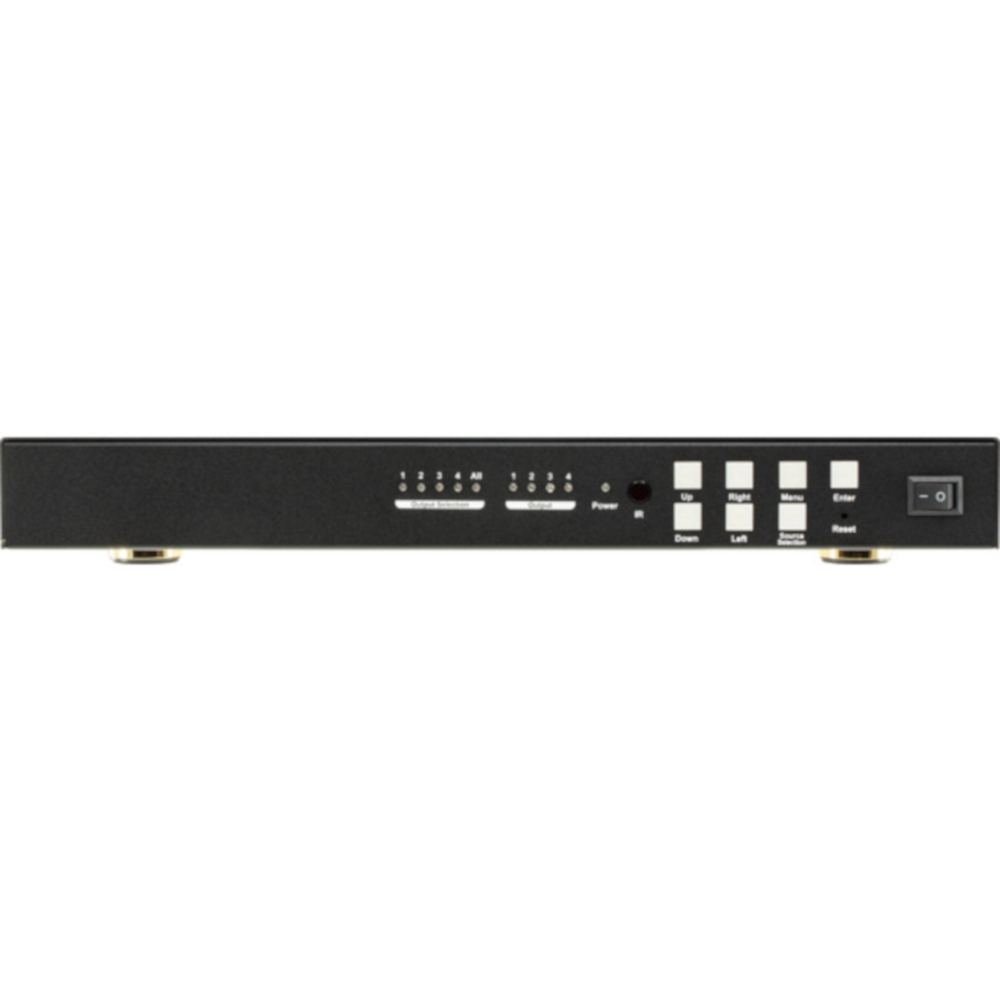

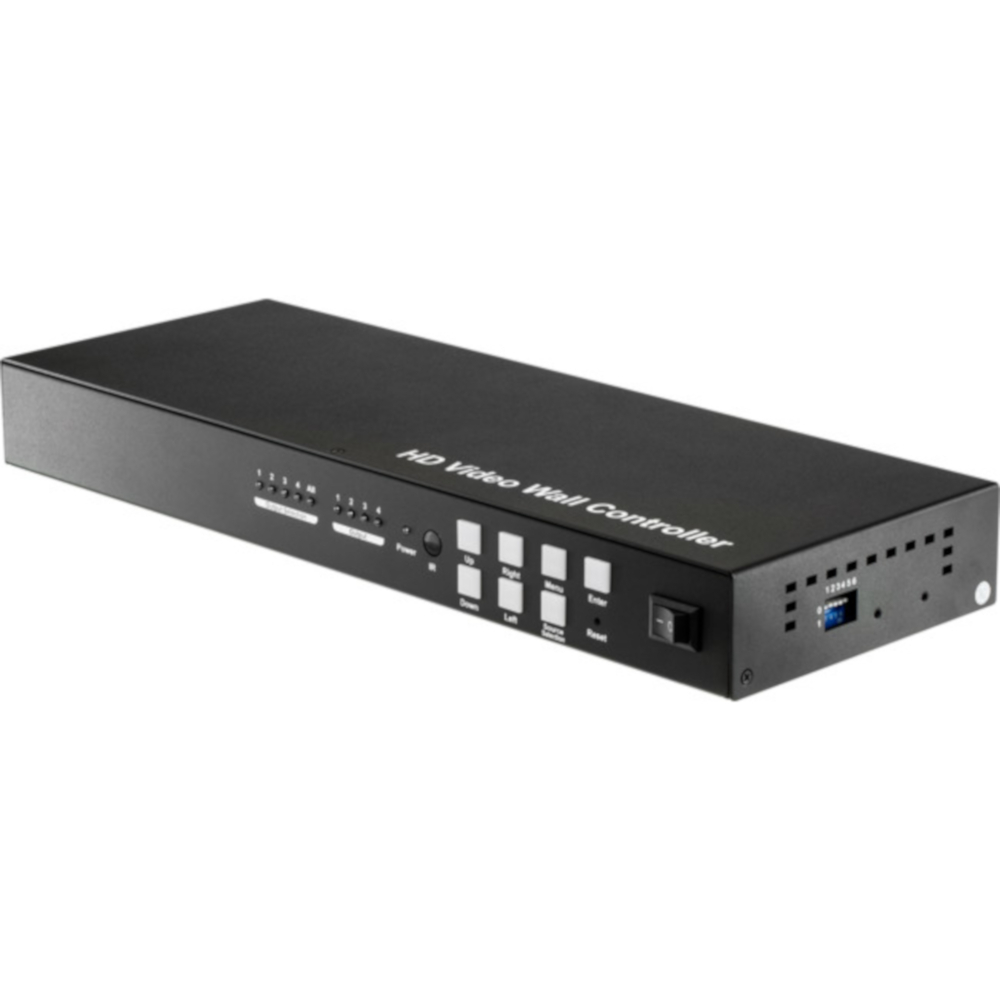

Full HD Video Wall Controller with Mixed Inputs

FEATURES

  • Support USB/VGA/Composite/HDMI input.
  • Select 1 of 4 source and distribute to 4 displays.
  • Create a 2x2 Video Wall Controller from any source tofour displays.
  • Support multi-level cascading to create 3x3, 4x4...Video Wall (Max 10x10). d
  • Support 180° rotation.
  • Support resolution up to 1080p Full HD.

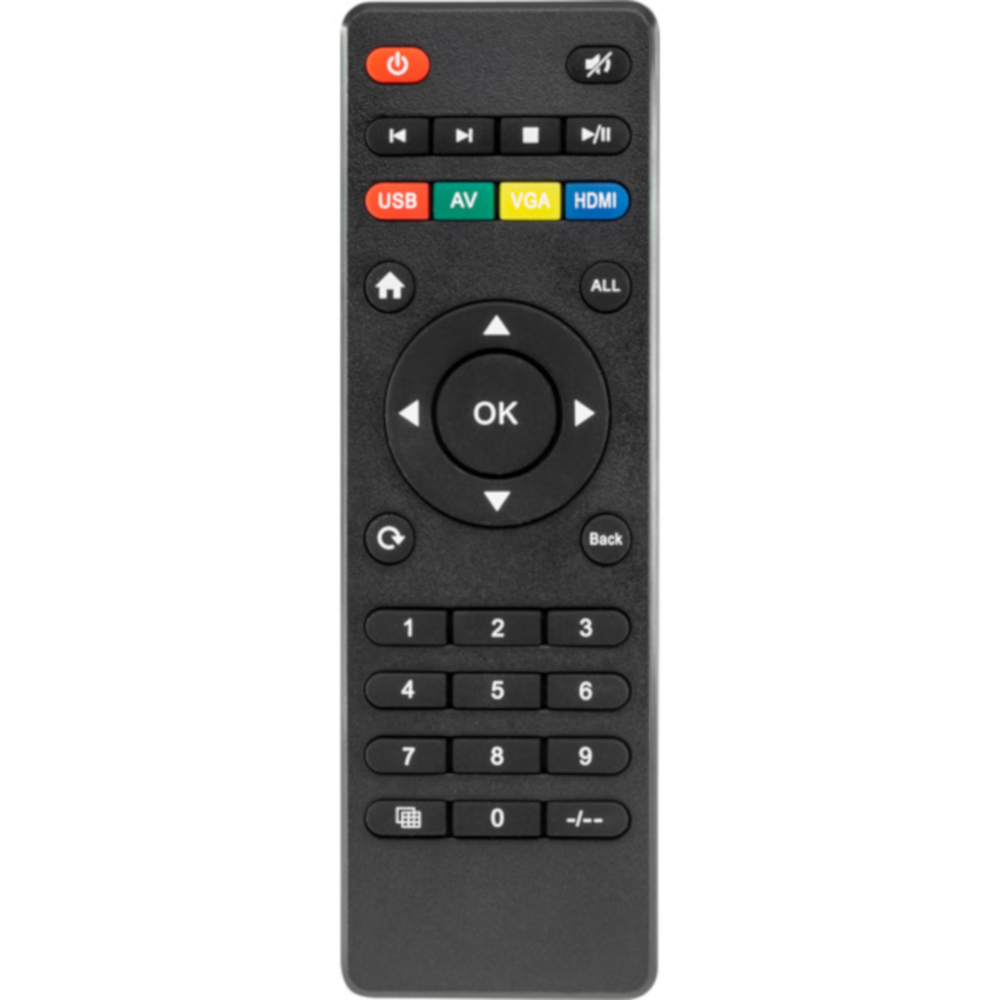

  • Support Panel control, IR control, RS232 control.

SPECIFICATIONS

Operating Temperature Range

0 to +35°C (32 to +95°F)

Operating Humidity Range

5 to 90 % RH (no condensation)

Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Video Format Supported

DTV/HDTV: 1080P/1080i/720P/
576P/480P/576i/480i

Audio Format Supported

LPCM

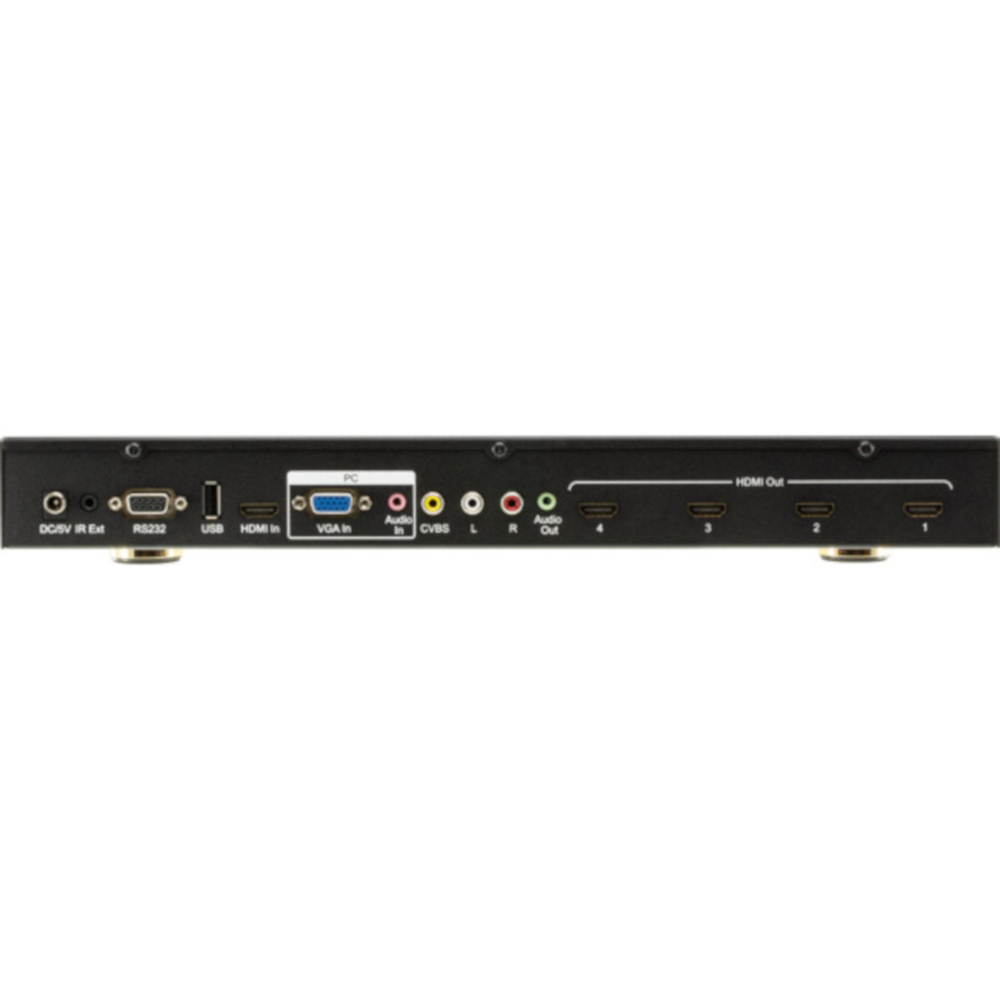

Input ports

1xHDMI, 1xUSB, 1xVGA, 1xAV

Output ports

4xHDMI

Splitter mode

1x4 HDMI Splitter

Video wall mode

2x2,3x3,4x4......10x10 video wall

Control Way

Panel control, IR control, RS232 control

Power consumption

15watts(Maximun)

Dimension (mm)

L380.6XW136.6XH43.5 mm

Weight

1725g



















Application 1: Split a single source to 4 displays



Application 2: 2x2 Video Wall Displaying



Application 3: Multi-Level Cascading (Max 10x10 Video Wall)



(VWC22)

12months

SKU VWC22
Model # VW-02
Brand PRO2
Unit Of Measure 1
Assembled Width 2.400m
