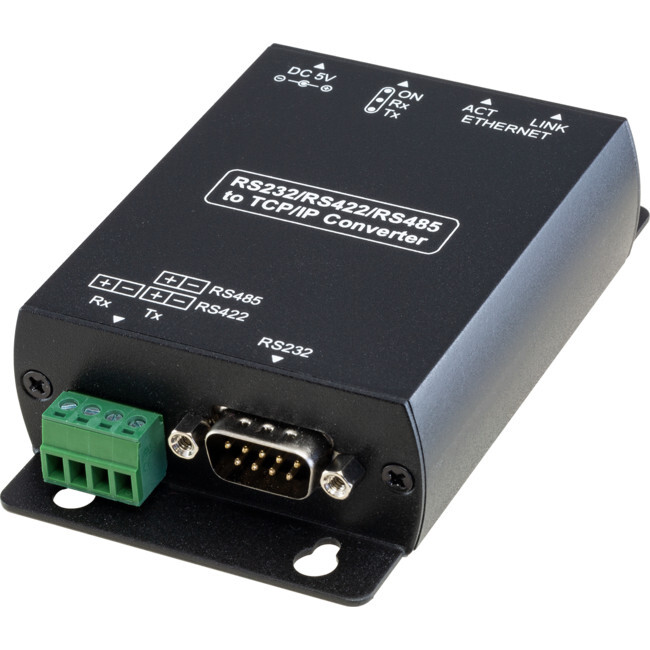

RS232/RS422/RS485 and Ethernet TCP/IP converter

RS007 is a universal data converter that supports serial signal RS232, RS422, and RS485 to the TCP / IP protocol bi-directionally and makes the RS232 based devices accessible via the network.

TCP server, TCP client, and UDP modes offer more flexibilities of the converter. Easily set up the device via the WebGUI or the PC software supplied to create the virtual COM ports or DHCP server or TFTP server.

Features:

• RS232: Standard DB9 connectors
• RS422, RS485: Terminal Block
• Ethernet: RJ45 network interface, use the interface through the network line of intelligent communication converter access TCP / IP network
• Support Data Baud rate: 1200 ~ 115200 bps
• Support three operation mode: TCP Server, TCP Client, UDP Mode
• Support Virtual COM Port
• Support full-duplex transmission
• Auto-detection network 10/100 Mbps
• Support auto MDI / MDIX
• Built-in LED indication

Specification:

• TCP/IP Ethernet: RJ-45 Connector × 1
• RS232 Interface: DB9 Male x 1
• RS485/RS422 Interface: Terminal Block 4 Pin × 1
• Operation Modes: TCP Server, TCP Client, UDP Mode
• Network: 10 / 100 Mbps
• Distance: Ethernet Cable 100M (Max)
• Data Baud Rate: 1200 ~ 115200 bps
• Modem Control Function: CTS, RTS, DSR, DTR, RI and DCD
• LED Indication: Power: Green, RX TX: Blue Red, RJ45: Green, Orange
• Power Adapter: DC5V 1Amp
• Power Consumption: 3W (Max)
• Operation Temperature: 0 to 70°C
• Storage Temperature: -20 to 85°C
• Humidity: up to 95%
• Dimension: 67 × 110 × 27mm
• Weight: 180g

What is in the box?

• RS007 x 1pc
• DC 5V 2A power supply x 1pc
• Manual x 1pc
• CD Disc x 1pc
• Screws x 4 sets
• 3M sticker x 4pcs
