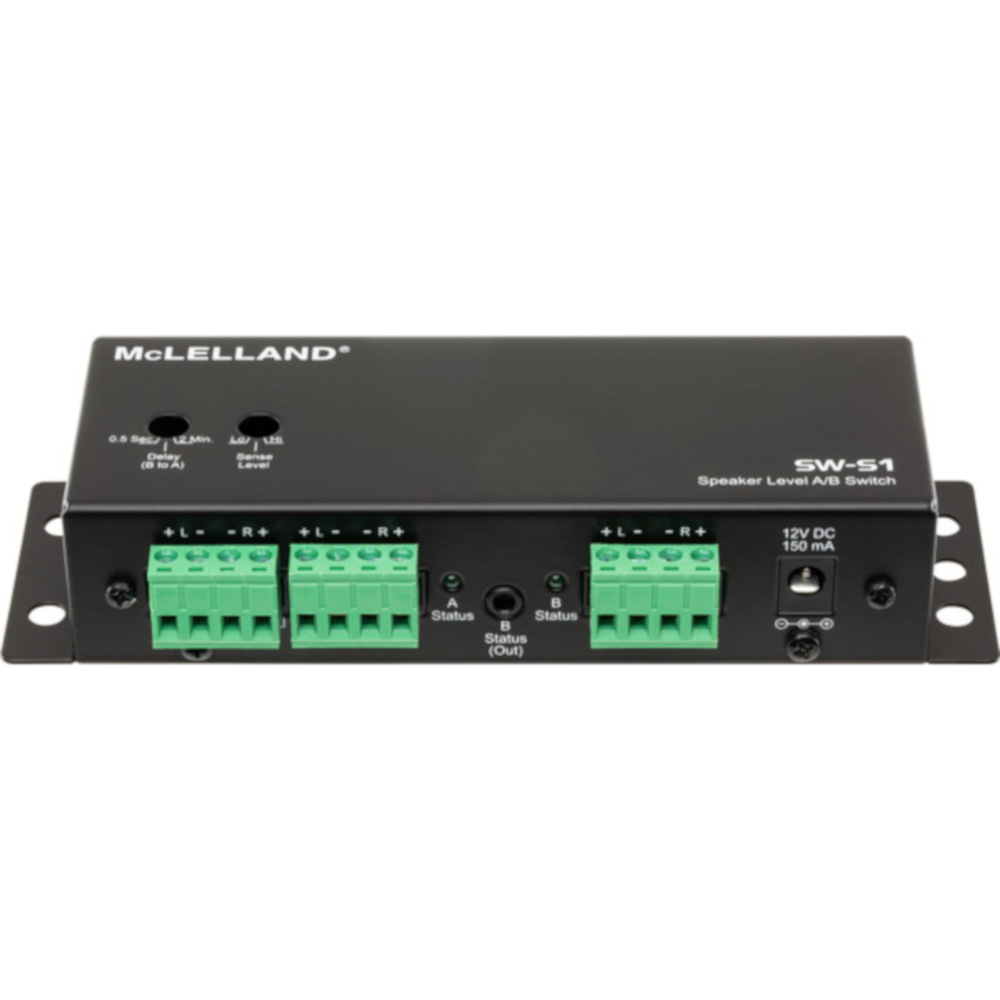

McLELLAND SW-S1 Speaker Level Audio AB Switch Box includes External Power Supply
Features
- Automatically switches the signal to stereo speakersbetween two power amplifiers.
- Dual Relays handle music power Levels up to 150 Watts.

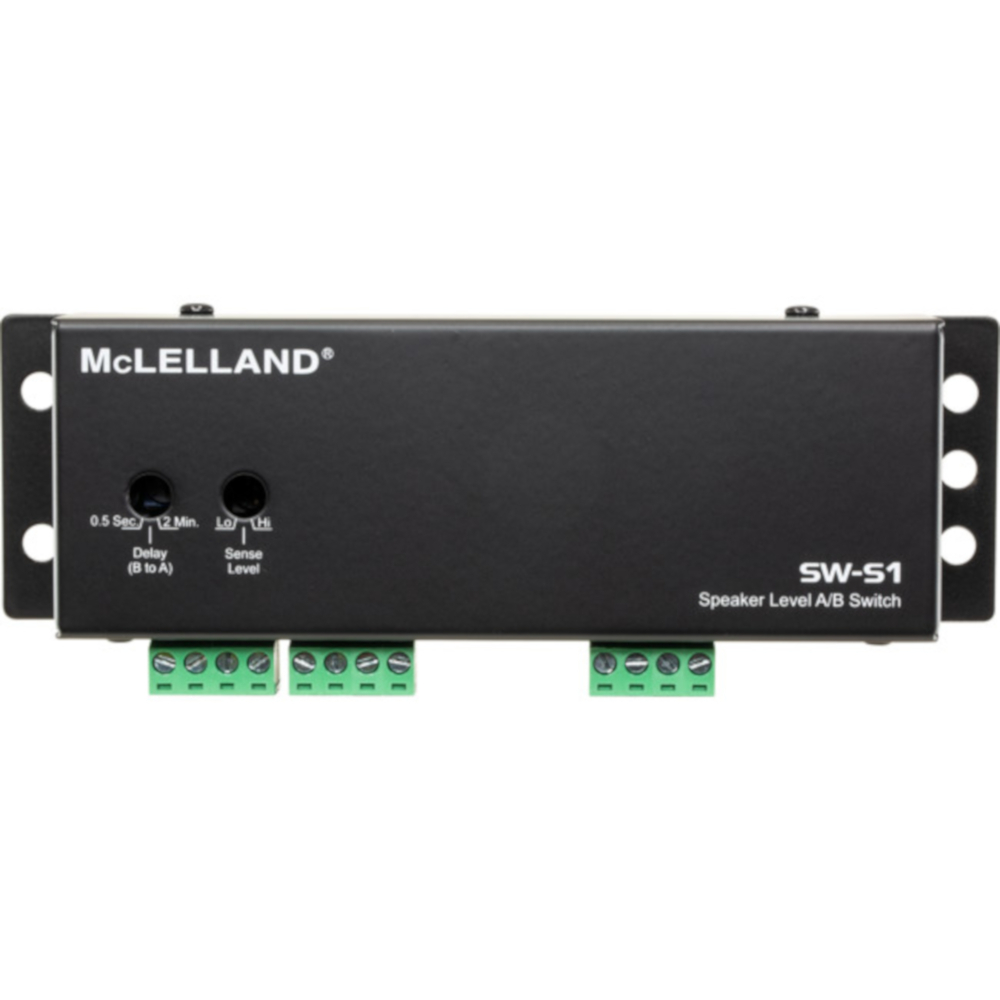

- Delay Switch allows setting the Delay time from 0.5 Seconds to 2 Minutes to
- change the music automatically.
- Sense Level allows the adjustment of sensitivity to the desired Threshold.

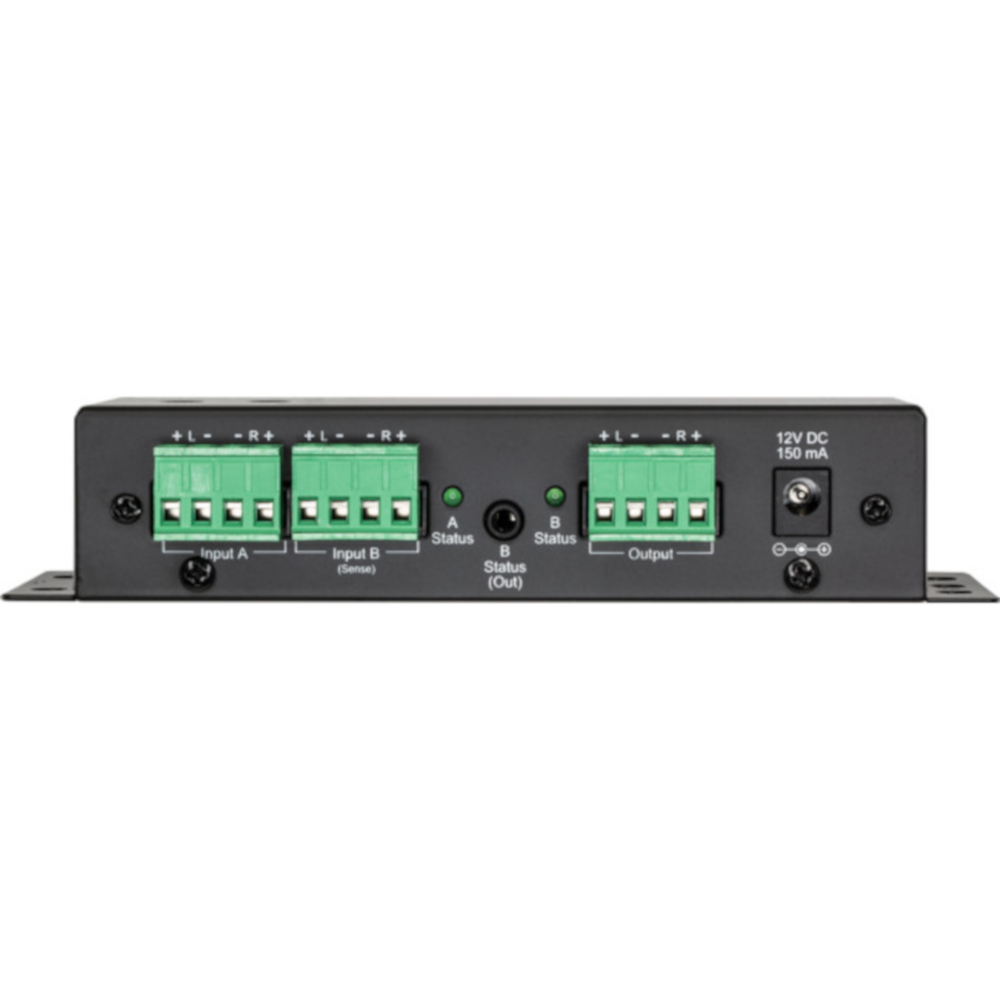

- A/B Status LED indicate the music plays from Input A or Input B.
- B Status 3.5mm Output Jack provides 12VDC Trigger to local devices (Lighting,Shades, etc.).
- Isolated independent ground allows use of BTL (Bridged) Amplifiers.
- External power supply required
- Mounting hole for easy installation.
Specifications
- Delay Range: (0.5-2) Sec, to 2 Min
- Sensitivity Range: 30mV to 300mV
- Max, Music Power Handling: 150Watts
- Independent Grounds: for BTL Amps
- Dual Relays Contact Rating: 24V@2A
- B Status Output Voltage: 12V DC @10mA/9V DC @100mA Max.
- Power Requirements: 12V DC@150mA
- Power Jack: 2.1mm ,center pole positive
- Dimensions (WxDxH): 6.5” x 2.35” x 1.25” (165 x 60 x 32 mm)
(SW-S1)
| SKU | SW-S1 |
| Model # | SW-S1 |
| Barcode # | 9328202031501 |
| Brand | McLELLAND |
| Artist / Author | Revathy |
| Shipping Weight | 0.3870kg |
| Unit Of Measure | 1 |
| Assembled Width | 0.387m |
