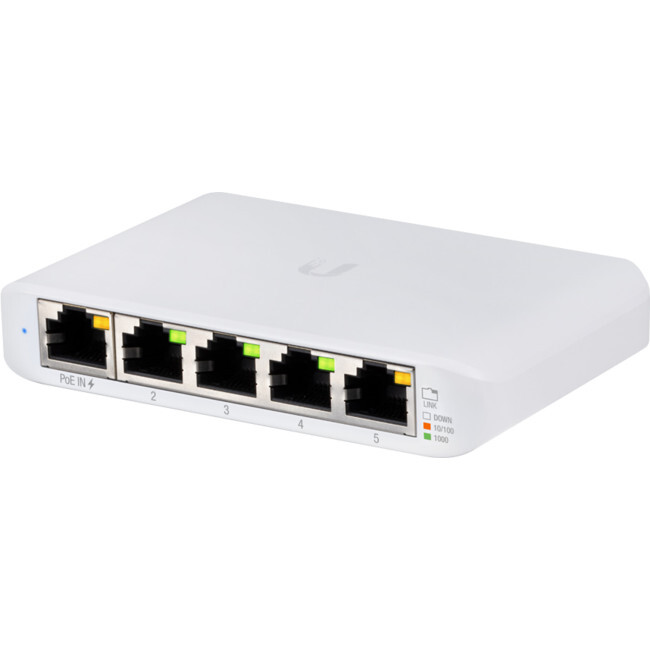

USW Flex Mini 5-Port Managed Gigabit PoE Switch

Build and expand your network with the UniFi® Switch,part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1Gigabit links to your devices. The 5-Port managed Gigabit Ethernet Switch can be powered by 802.3af/at PoE switch, PoEAdapter (Model USW-FLEX-MINI-NPS), or 5V, 1A USB-C power adapter (Model USW-FLEX-MINI-PS).

Power Options

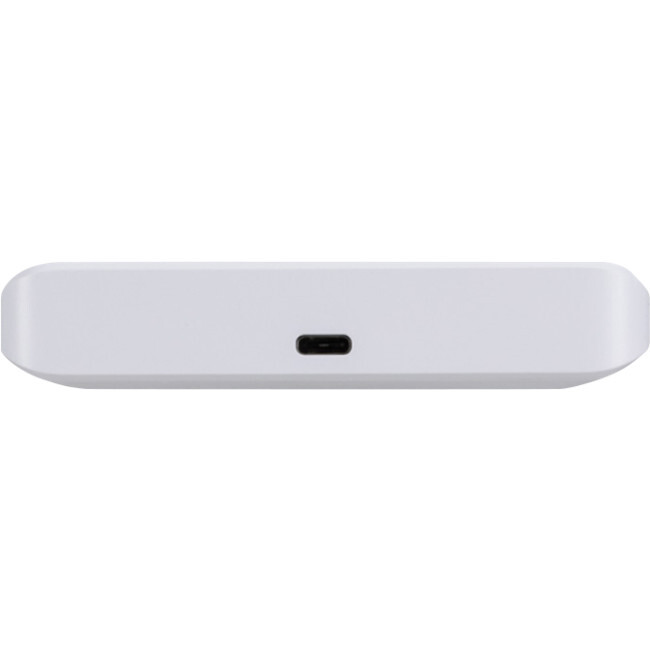

Power up with USB Type-C power adapter or with802.3af/at PoE Adapter(Sold Separately), or 802.3af/at PoE switch via Ethernet in port 1.

Specifications

USW-Flex-Mini

Dimensions

107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")

Weight

150 g (5.29 oz)

Networking Interfaces

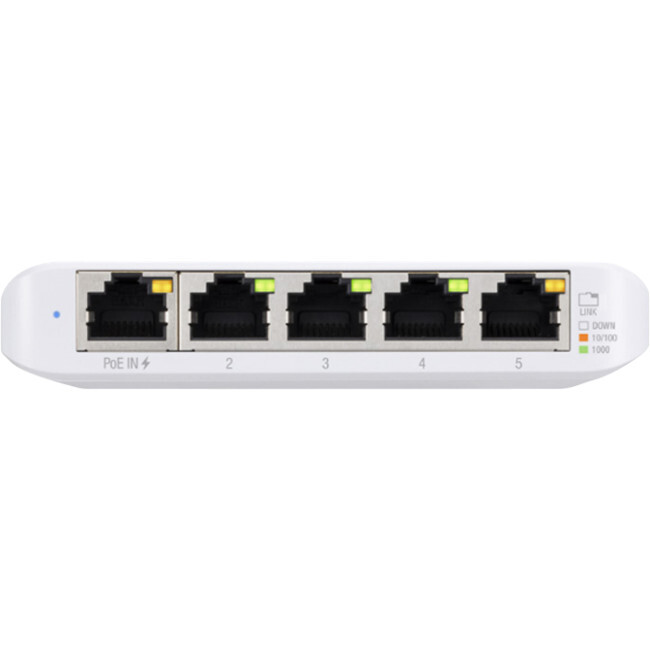

(5) 10/100/1000 Mbps RJ45 Ports

PoE In Interface

802.3af/at PoE (Pins 1, 2+; 3, 6-)

Max. Power Consumption

2.5W

Power Method

USB Type C, 5V
802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)

Power Supply

5V, 1A Power Adapter*

Voltage Range

USB Type C 4.7 - 5.2VDC
802.3af/at PoE 44 - 57VDC

LEDs

System Status
RJ45 Data Ports Link/Speed/Activity

ESD/EMP Protection

± 16kV Air, ± 12kV Contact

Operating Temperature

-5 to 45° C (23 to 113° F)

Operating Humidity

10 to 90% Noncondensing

Certifications

CE, FCC, IC

* Included only in the single-pack of the USW-Flex-Mini.

(USW-FLEX-MINI)

12
SKU USW-FLEX-MINI
Model # USW-FLEX-MINI
Barcode # 817882029810
Brand UBIQUITI
Assembled Width 0.200m
