FTA Regenerating Headend - 4 Channel Input DVB-T/T2 or DVB-S to DVB-T or DVB-C Output.

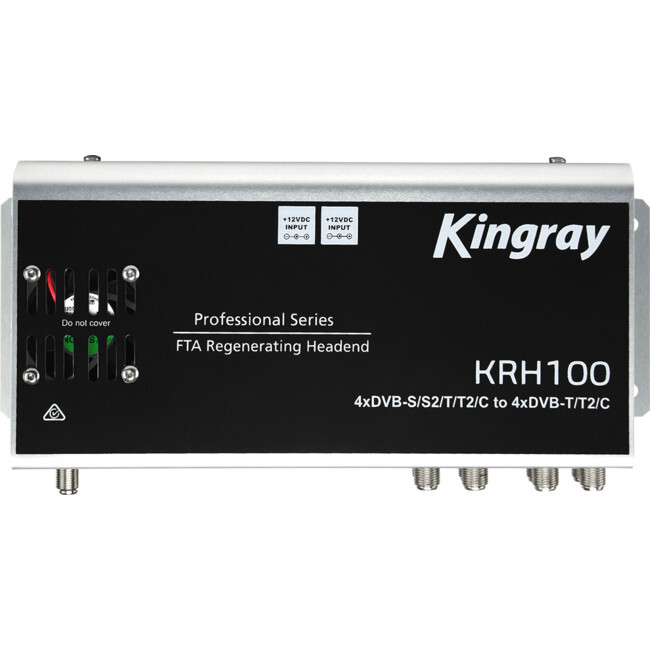

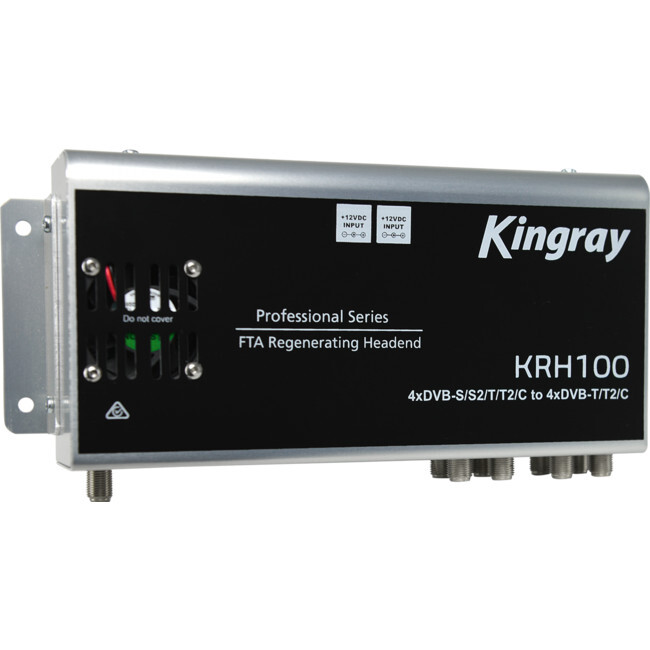

• Introducing the KRH100 all-in-one compact headend, capable of receiving 4 individual services, terrestrial, satellite or cable and converting them to either 4 x DVB-T or DVB-C RF Output channels.
• It supports pool technology, meaning the user can select any program from any of the 4 inputs and assign them to any of the 4 RF output channels.
• The KRH100 is more than just a FTA headend, as it can regenerate signal with a poor MER level as well as a poor digital power input level.
• The embedded web server of the KRH100 provides a very user-friendly interface and with the LAN input you can access the device locally or remotely.
• Its compact size and its powerful features make the KRH100 the ideal solution to distribute FTA (Free-To-Air) TV programs from satellite (DVB-S/S2), terrestrial (DVB-T/T2) or cable (DVB-C) sources to a CATV output using DVB-T or DVB/C.

Features

• Input: 4 x DVB-S/S2/T/T2/C
• Output: 1 x RF output containing up to 4 x DVB-T/C channels (software selectable)
• Input Frequency Range: 174~862MHz (DVB-T/T2/C) & 950~2150MHz (DVB-S/S2)
• Output Frequency Range: 174~862MHz (DVB-T/C)
• Maximum Output Power Level: 90dB
• MER Output: >42dB

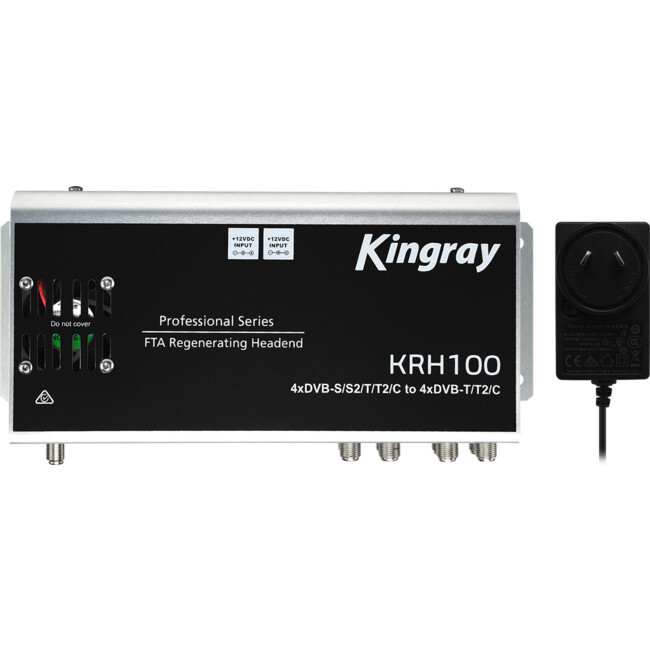

• Dual Power Supply: 1 + 1 backup
• 5 Years Warranty on the main unit, 2 Years Warranty on the power supply
• Power Consumption: 1.8A maximum
• Operating Voltage: 12V DC 2.5A
