300MBPS OURDOOR ACESS POINT

{tab Features}

300Mbps Wireless N Outdoor Access Point

Excellent Hardware Designs With the special design of its antenna, appearance, power options andinstallation methods, EAP110-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

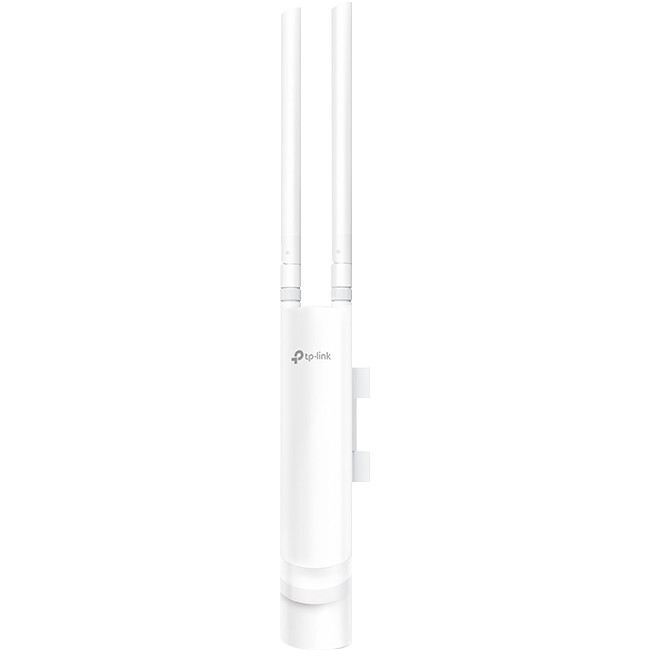

Detachable Antennas EAP110-Outdoor isdesigned with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications EAP110-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1 in (215 × 46 × 27 mm) Wi-Fi
Supports Passive PoE for Easy Outdoor Set up Do away with DC power adapters and power cords with passive Power over Ethernet (PoE), making outdoor deployment simple and fast.

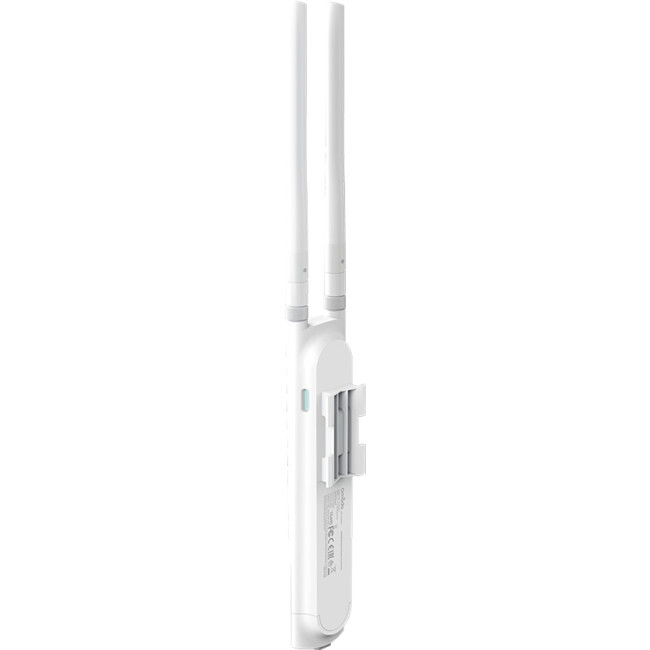

Flexible Deployment EAP110-Outdoor can be easily installed to a pole or on a wall with the mounting kits provided.

Wi-Fi That Goes the Distance With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.

Specially Designed Weatherproof Enclosure for Outdoor Environment Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.

Omada SDN—Smarter Cloud Solution for Business Networking Omada Software Defined Networking (SDN) platform integrates network devices including access points,switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralised Cloud Management: 100% centralised cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

{tab Specifications}

HARDWARE FEATURES

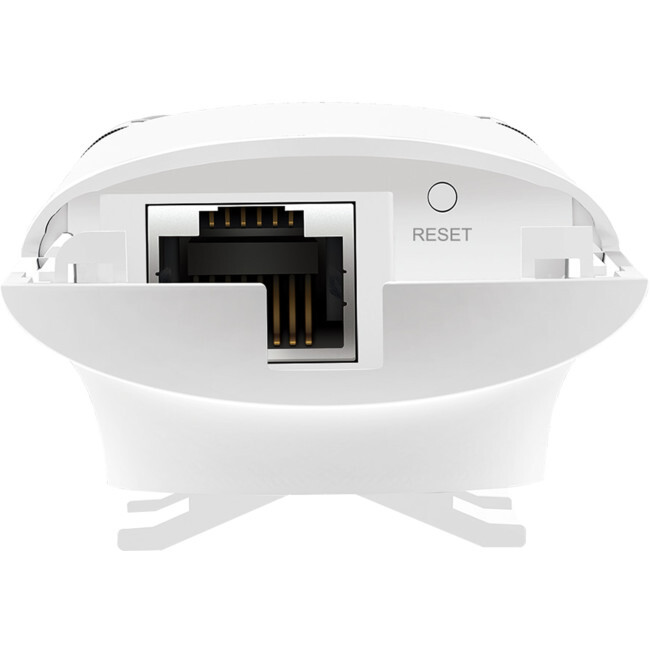

Interface	Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Button	Reset
Power Supply	24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)
Power Consumption	3.12 W
Dimensions ( W x D x H )	8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm)
Antenna Type	2*3dBi External Omni waterproof
Weatherproof Enclosure	IP65
Mounting	Pole / Wall Mounting (Kits included)

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n/g/b
Frequency	2.4GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Transmit Power	CE: =20dBm FCC: =30dBm
Wireless Functions	Multiple SSIDs(Up to 8 SSIDs) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

MANAGEMENT
Omada App	Yes
Auranet Controller Software	Yes
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller
Cloud Access	Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	Yes
System Logging Local/Remote Syslog	Yes
Telnet	Yes
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes

OTHERS
Certification	CE, FCC, RoHS

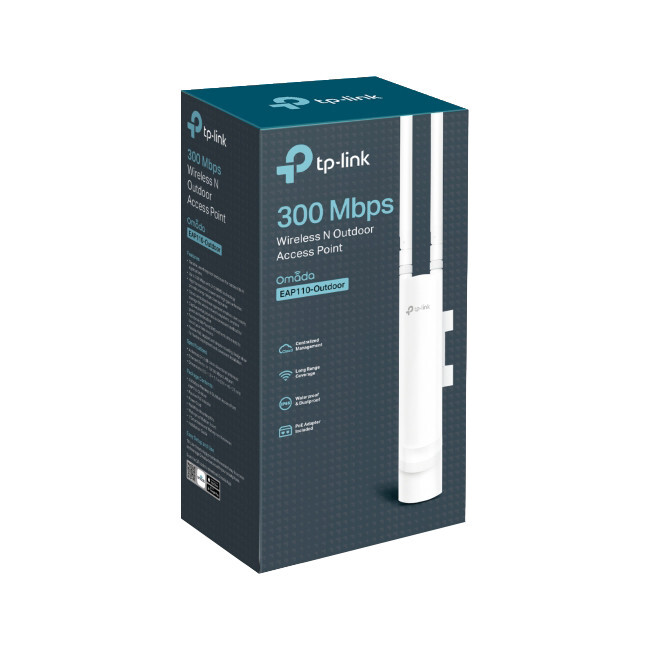

Package Contents	300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor Passive PoE Adapter Power Cord Mounting Kits Waterproof Rubber Insert Waterproof Antennas Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Environment	Operating Temperature: -30°C~65°C (-22°F~149°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Warranty	Limited 5-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
