Bench Top Power Supply

An advanced new circuit design makes this power supply with higher efficiency, regulated output and specifically suitable for use with radio equipment. The power supply provides a stable, clean and RFI filteredsuppressed and filtered DC source.

The smart fan speed control program will adapt the just the right speed (0-100%) to ensure a quiet and safe operation at various ambient temperature and power output.

The isolated ground design allow parallel and series connection of power supplies. The constant current limiting,over temperature, over voltage protections offer reliabilityand protection to the power supplies and the load.

Features

  • High RFI immunity
  • Wide Range AC input voltage
  • Quiet cooling fan variable speed operation
  • Over load, Short circuit, Over temperature protection by constant current
  • Power Factor Control
  • Isolated Ground
  • User adjustable fine tune setting (10 - 15V)

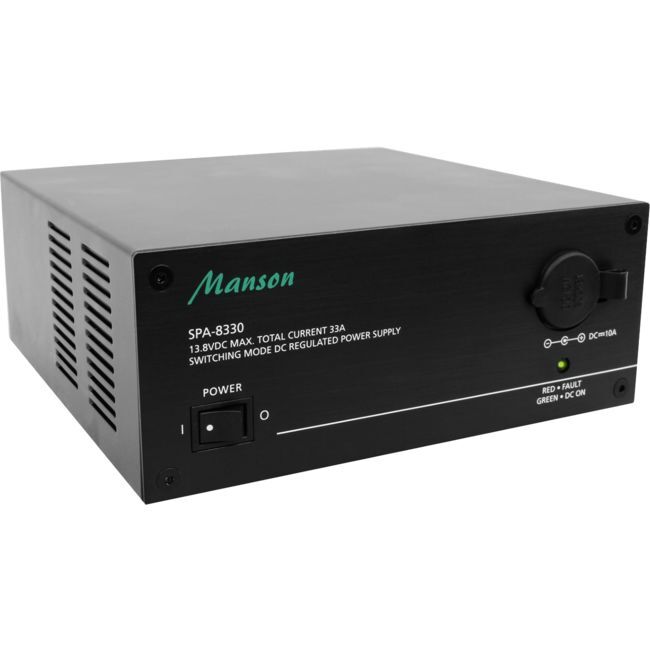

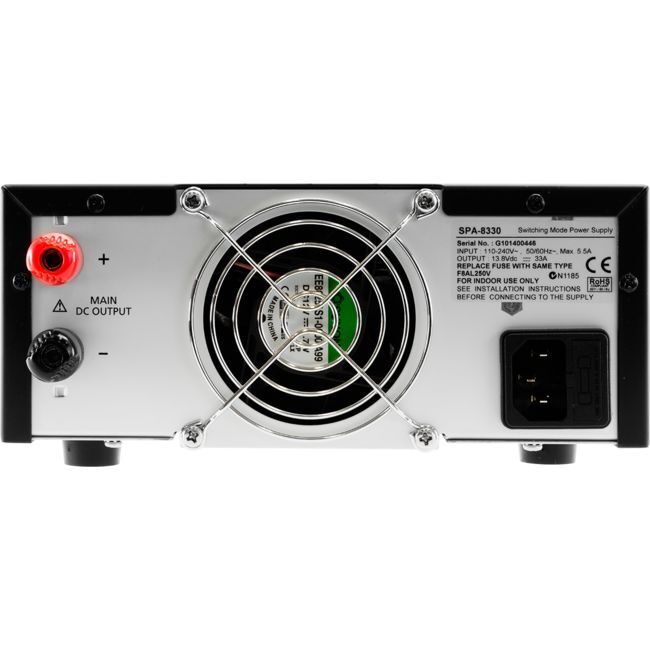

  • Binding post and cigar socket DC output

Specifications

Model SPA8330B
Output Voltage Fixed 13.8VDC ±0.5V
Output Current
(Main Output Posts)
33A Continuous, 36A Max.
(30sec ON / 30sec OFF)
Output Current
(Main Output Posts + Cigar Socket)
33A Continuous, 36A Max.
(30sec ON / 30sec OFF)
Ripple & Noise ≤50mVp-p 5mVrms
Load Regulation
(10-100% Load)
≤50mV
Line Regulation
(100-264VAC Variation)
≤20mV
Input Voltage 110 - 240VAC 50/60Hz~
Indicators Red Color Fault LED Indicator
Cooling System Fan Cool (0 to full speed)
Operating Temperature 0 - 40°C
Protection Overload,
Over Temperature,
Short Circuit Protection
(by Constant Current Circuitry and
Output Over Voltage Protection)
Approvals CE EMC: EN 55022
LVD: EN 60950
Dimensions
(WxHxD)
200x80x213 mm (7.8x3.2x8.4 inch)
Weight 2.6 kgs (5.7 lbs)


(SPA8330)

SKU SPA8330
Model # SPA8330
Barcode # 9328202033390
Brand Manson
Unit Of Measure ea
Assembled Width 3.233m
