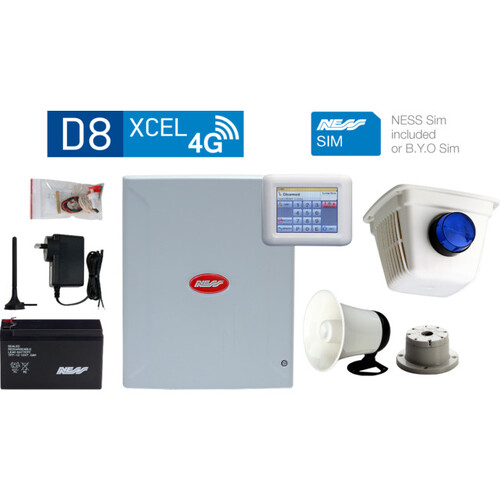

K-9312 D8XCEL4G NAVIGATOR & SIREN KIT

Ness D8X control panels offer the widest possiblecombination of standard features and options to provide users and installers with the most powerful and flexible security panels ever made by Ness.

Ness Navigator Touch Screen Keypad provides the user and installer with unrivalled ease of use combined withattractive looks.

Features:

• 8 alarm zones

• Supports up to 3 mixed keypads (Navigator/Saturn/LCD) or 4 Navigator keypads

• 56 user codes can be programmed to operate by keypad PIN, radio key or access card.

• Optional Ness Radio Interface for fully integrated wireless security.

• Programmable Two Area partitioning can split the panelinto two independent areas plus a common area.

• Real Time Clock with AutoTime features - auto arm/disarm, auto aux outputs, time based user control.

• 3 Door Access Controller onboard with support for Weigand prox or fingerprint readers.

• Supports control via internet using Ness iComms/aCommsiPhone/iPad and Android apps and optional ethernet adapter.

• Home Mode allows partial arming, (eg, perimeter security overnight).

• Day Mode feature allows daytime monitoring of fire doors, coolrooms etc.

• Temporary Day Zone feature allows easy enabling/disabling of Day Mode.

• Keypad Panic and Duress feature.

• Two button arming feature.

• Fire Alarm feature with different siren tones.

• Highly flexible zone to output mapping.

• Onboard Vibration Sensor Analyser with programmable sensitivity. Use with Nessensor™ vibration sensors.

• Multiple programmable EOL resistor values from 0k to 22k (2k2 resistors supplied).

• Siren chirp and strobe flash on arming with radio key.

• Quiet chirps option on arm/disarm by radio key.

• True Dynamic Battery Test actively tests the battery under load every hour and every time a keypad code is entered.

• 4 programmable auxiliary outputs (Up to 8 Aux outputs optional).

• Optional output expander.

• Enhanced serial data input/output via RS232.

• Automatic reset fuses.

• Programmable Reset Output lockout.

• 30 event memory from KPX and Saturn keypads. 80 event memory can be accessed using Navigator keypad or NessComms™.

• Standard defaults to suit most applications.

• Easy programming by keypad or NessComms™ software by direct connect.

• All programming data is permanently stored in a non-volatile memory.

• All inputs and outputs are heavily protected against lightning and high voltage supply transients.

• High efficiency DC power supply with dual 17VAC/20VDC power input

Communicator

• 4G Communicator onboard

• Direct-connect upload/download using NessComms™ software.

• View system status and arm/disarm using NessComms™.

• Remote control of outputs via telephone with voice prompts.

• Operation via SMS messaging

• Programming via SMS

• Alarm reports via SMS self-monitoring or Central Station

• Central Station monitoring in ARMOR IP and CID formats

• Remote operation via the free NessXCEL SMS app
