Features

  • The funnel entry has been specifically developed to speed up wire terminating, whilst ensuring maximum reliability of the crimped connection.Only single grip terminals are funnel entry.
  • Translucent nylon in fully insulated quick connectors reduces installation errors
  • Approved by Government Authorities
  • Conform to AS 3169
  • Conductivity of copper 99.9% IACS (except Quick Connect Range - Brass: 30%, Zinc Copper 70%)
  • Electroplating: Tin 99.9%
  • Insulation: PVC - for all except, Nylon 6 or Nylon 66 for FIQC
  • Top working temperature: 105°C
  • Voltage rating: 600V AC/DC
  • RED INSULATED: Conductor 0.25 ~ 1.65mm2/Current: 12 Amps
  • BLUE INSULATED: Conductor 1.04 ~ 2.63mm2/Current: 16 Amps

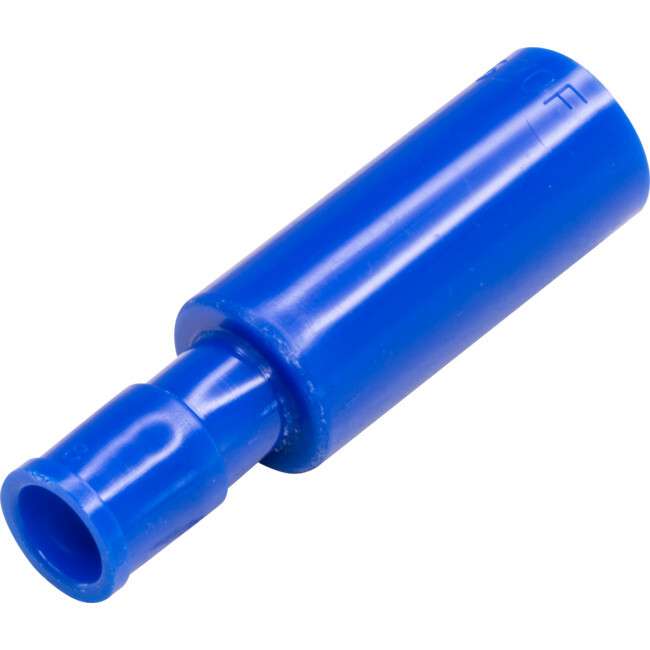

  • Colour/Size: Blue 5mm

(FBC2DG-25)

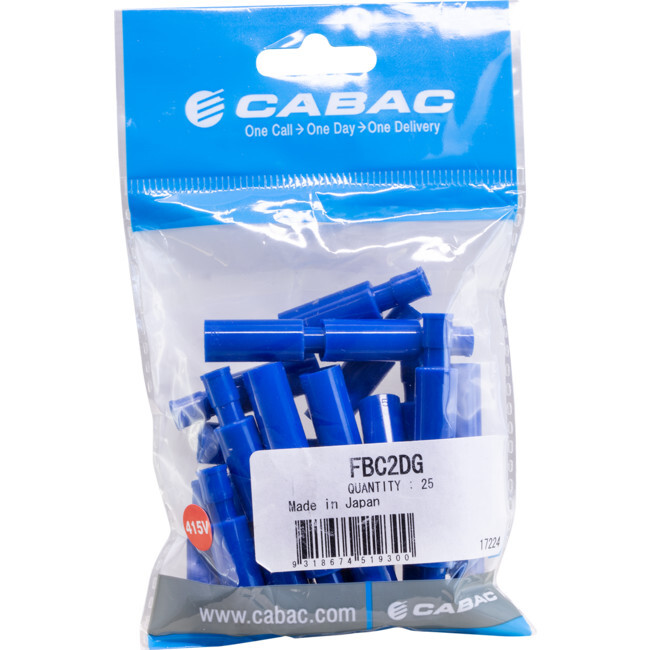

SKU FBC2DG-25
Model # FBC2DG
Barcode # 9318674519317
Brand CABAC
