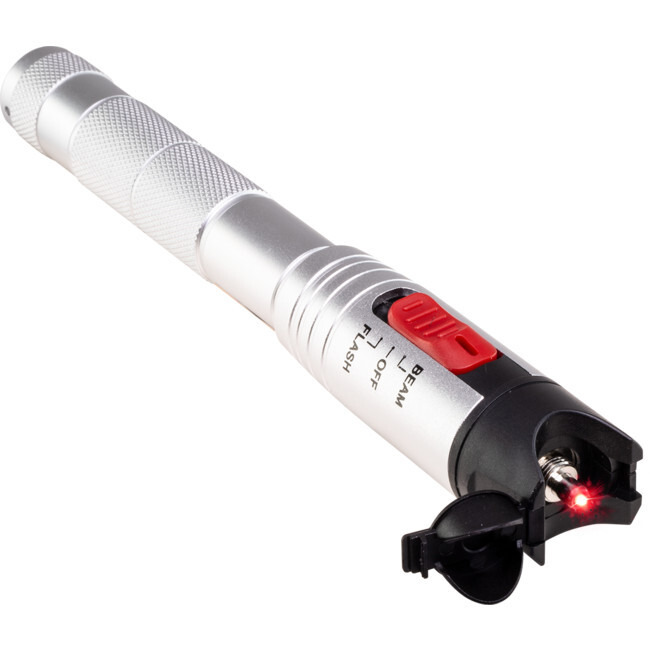

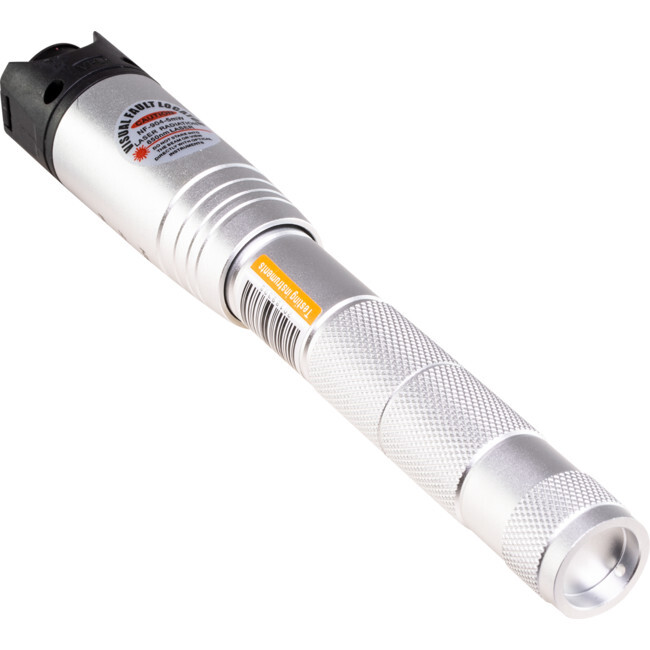

The NF-904 VFL is a compact but powerful Visual Fault Locator, used to find sharp bends & breaks in jacked or bare fiber. It could also be used to identify the connectorsin patch panels and fibres during splicing operations.

Features

  • Breakage and winding testing
  • End-to-end fiber recognition
  • Pulsed and CW operation
  • 2.5mm universal connector
  • Rugged and weatherproof design
  • 5mW Output Power



Specifications

Model NF-904B-05 (Black / White)
Wavelenth (nm) 650±10nm
Operation Mode Pulsed (2Hz) and CW
Fiber Type SM/MM
Connector 2.5mm Universal
Output power 1mW 5mW 10mW 20mW
Dynamic Distance 0-2km 0-5km 8~10 km 15~18 km
Working temp -20 ~ +60°C
Storage Temp -40 ~ +85°C
Power Supply 1.5V battery
FC interface 1pc (Bundled)
SC/ST /LC interface optional

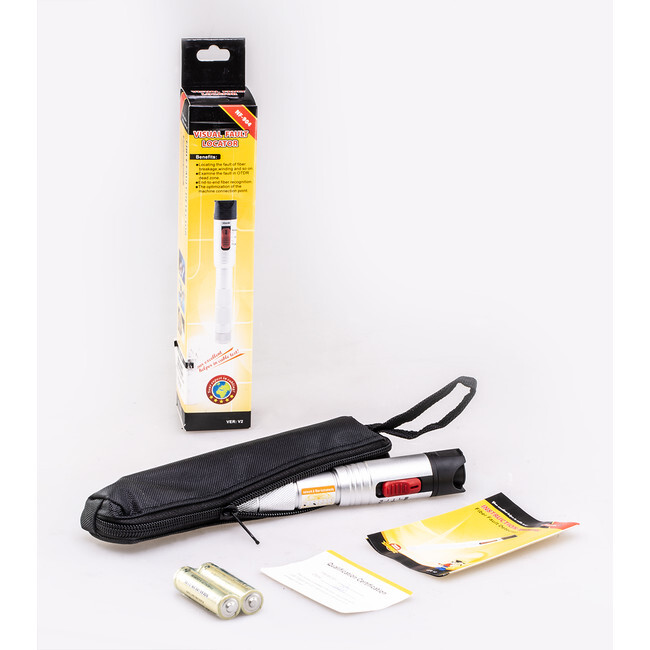

In the box

  • 1x NF904 Visual Fault Locator
  • 1x Case
  • 1x User Manual

(NF904S-5MW)

SKU NF904S-5MW
Model # NF-904S-5MW
Brand DOSS
