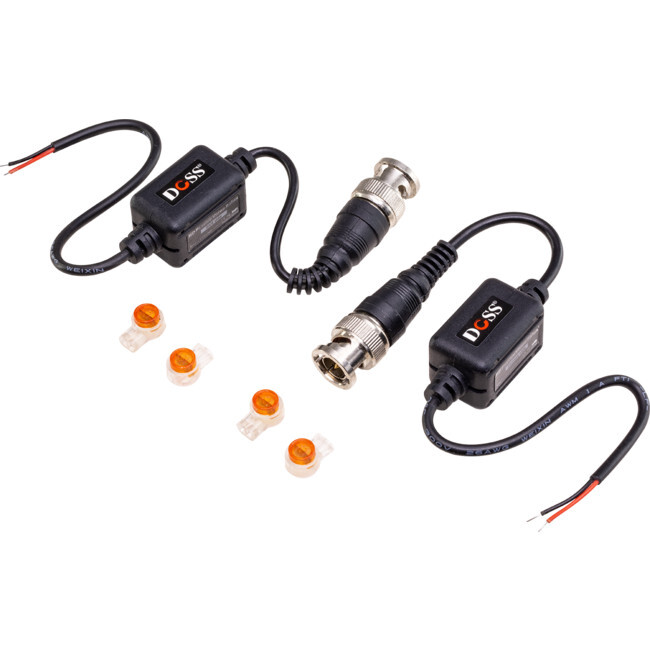

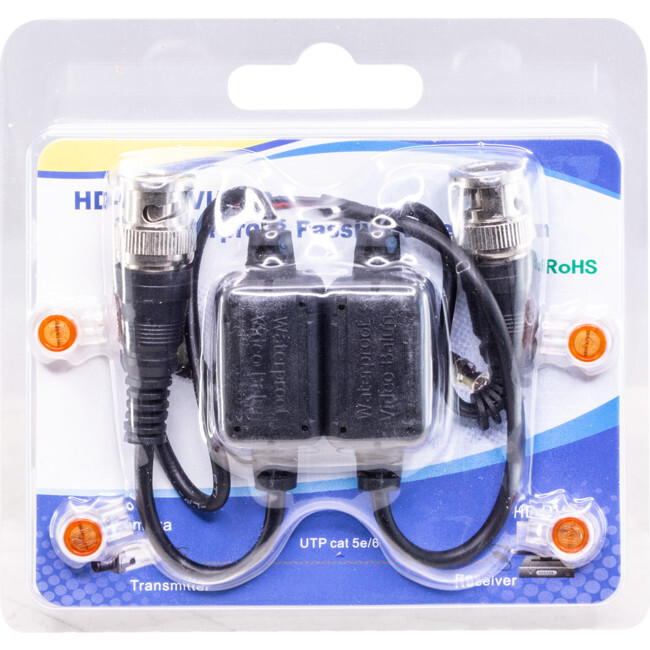

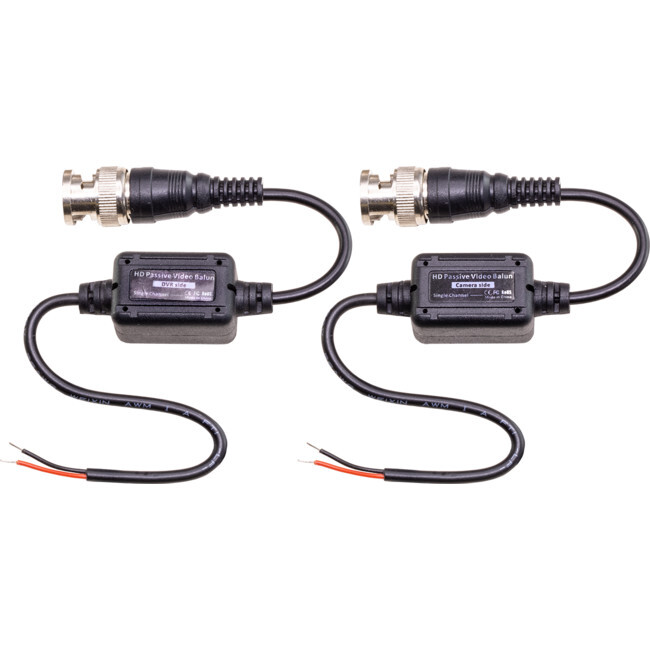

BVB4200WPHD WATER PROOF BNC HD VIDEO BALUN

Features

The DOSS Range of UTP Video Baluns allow you to connect your CCTV system using cheaper, thinner, lighter and more readily available CAT5E cable rather than expensive and bulky RG59U cable. The passive (non-amplified) baluns allow transmission of realtime CCTV video signals over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the need for extra power supplied to be installed. Baseband (composite) signals of any type are supported. The Doss BVB4200WPHD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable

Applications

• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses

Features

• Waterproof Super Mini Passive Video Balun
• Max distance TVI up to 190m, CVI 440m AHD 300m.
• NTSC, PAL & SECAM video format compatible
• Real-time transmission
• No power required
• Exceptional interference rejection
• Built-in TVS (Transient Voltage Suppressors) for surge protection
• Lightning protection design Grade III
• 50dB crosstalk and noise immunity
• Compact size and easy installation
• ABS engineering plastic housing

Specifications

• Power: No external power required
• Differential Capacitance: 62 pF/m max (19 pF/ft max)
• DC Loop Resistance: 18 ohms per 100m (52 ohms per 1,000ft)
• Network Wiring: One Unshielded Twisted Pair (for each video signal 24-16 AWG (0.5-1.31mm)
• Category Type: 2 or better
• Impedance: 100 ±20 ohms
• Category Type: 2 or better
• Network Wiring: One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
• Attenuation: 1.5dB Max typical
• Common-mode
• Differential-mode rejection: 15kHz to 5MHz 60dB typical
• Operating Frequency: DC to 5MHz
• Video Format: PAL, NTSC, SECAM
