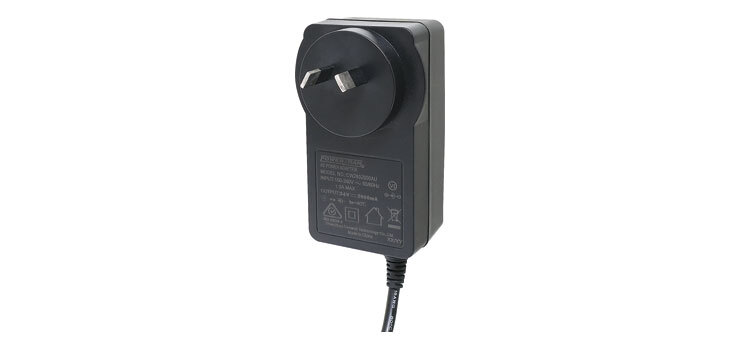

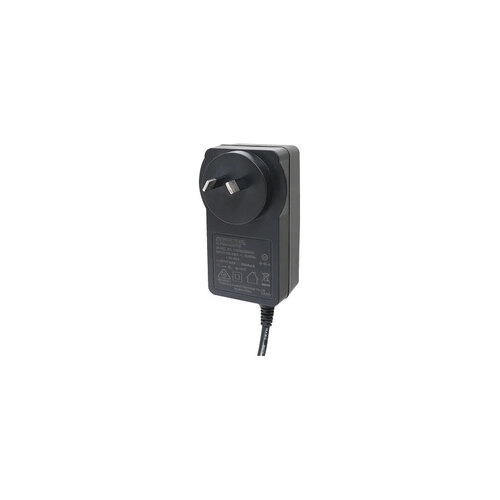

24V DC, 2A switch mode plug pack supplied with a fixed positive to tip 2.1mm DC jack (2.1ID x 5.5OD x 10L). Compact design with high current regulated output. Energy authority approved. MEPS approved. Dimensions: 40W x 61H x 44D mm.
Features

  • MEPS efficiency level V
  • Australian Standards Compliant
  • Suitable for a range of electronic devices
  • Compatible with Australian mains power point

Specifications

  • Input
  • Input Voltage Range: 90V AC to 264V AC
  • Rated Voltage Range: 100V AC to 240V AC
  • Input Frequency Range: 47Hz to 63Hz
  • Rated Input Frequency: 50Hz/60Hz
  • Input Current: 1.2A max at full load
  • Inrush Current (cold start): 80A typical peak, 220V AC input

Output

  • Output Voltage: 24V DC
  • Output Ripple & Noise: ?200
  • Output Current: 2000mA

General

  • Operating Temperature: 0°C to 40°C, full load, normal operation.
  • Storage Temperature: -40°C to +85°C.
  • Relative Humidity: 5% (0°C) ~95% (40°C), 72 hours, full load, normal operation.
  • Barrel Length: 10mm

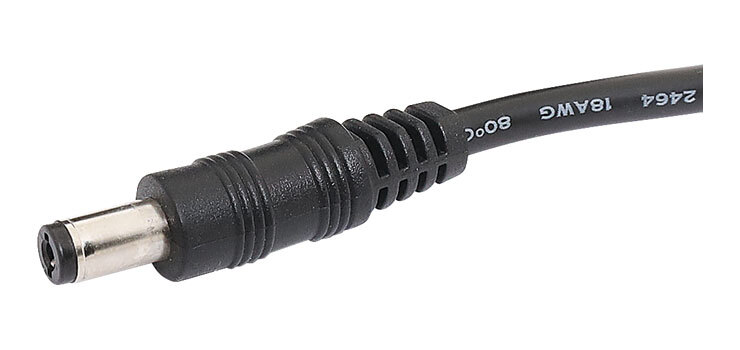

  • Plug Tip Type: 5.5mm outer diameter and 2.1mm inside diameter
  • Polarity: Positive centre
  • Cable Length: 1.2m
  • MEPS Efficiency Level: V
  • Warranty: 12 months

(M8969)

SKU M8969
Model # M8969
Barcode # 9321758247037
Brand Powertran
