IVA focuses on automating the video analysis of large amounts of data footage and security alerts, rather than having people monitor each camera manually. The software utilises a range of rules and algorithms to ignore any changes in lighting conditions or non-critical activity, andfocus on specific triggers to identify suspicious behaviour and objects.

A good example of Analytics would be its ability to alertauthorities of suspicious objects left in public places, like airports, and use facial recognition to help track downfugitives. It could also be used in Highway CCTV situations to capture and report a vehicle travelling in the wrong direction or performing an illegal turn. Even for the domestic home, Analytics could alert and monitor a trespasser crossing a property line.
With every aspect of our lives being digitised, video footage will be increasingly tagged to these events. Imagine a person scanning a train ticket at a turn style. The scanning of the ticket and the footage from the CCTV camera will get put together and be readily accessible in real time or a month later.

Specifications

VIDEO
Network Video input 16CH
Network video input bandwidth 80Mbps
Video compression H.265/H.264 /MJPEG
Video output VGA/HDMI synced output
3840x2160@30Hz,1920x1080 @ 60HZ,1280x1024 @ 60HZ
Video bit rate 16-16000Kbps
Video resolution 4K/5MP/3MP/1080p/960p/720p/D1/VGA/4CIF/DCIF/2CIF/CIF/QC IF
Image display 1/4/6/8/9/16
Snapshot JPEG snapshots can be set for automatic or manual capture
Motion detection 396 (22*18 grid) surveyed area can be set in every screen with adjustable sensitivity levels (requires IP camera support)
AUDIO
Audio compression G.711U
Audio input 1CH [RCA port] (IPC complex audio input)
Audio output 1CH [RCA port]
Audio intercom input Bidirectional talk [RCA port]
VIDEO RECORDING AND PLAYBACK
Video frame rate 1-30 FPS
Record method Manual/external alarm/MD/timing/intelligent analysisalarm
Playback ability Support 1CH 5MP/3MP, 4CH 1080P, 9/16CH sub stream video playback
Playback mode Regular/Instant replay/Event/External file
Video search Time, calendar, event, channel
Video playback Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast, play, slow play, single frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time ball precise playback
STORAGE AND BACKUP
Interface 2 SATA
HDD capacity 8TB max. per HDD
Backup location Local, network, IPSAN
Backup method USB mobile hard disk, U disk, network backup
FUNCTION
Network protocol TCP/IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF
Interface protocol ONVIF, RTSP, GB28181
Mobile surveillance iOS and Android via FSEYE app
Web Browser Supports IE (with or without ActiveX), Chrome, Firefox, Safari
Intelligent Analysis Front (IP Camera) and local detection for: Target counting, object detection, object left/lost, line cross detection, scene change, motion detection, video loss, privacy mask, video tampering
Other Dual password authentication, zero channel
Alert Options Email alert, Audible alarm, Visual alert on monitor,Upload to center (get alerts on the VMS PC client), Trigger alarm output

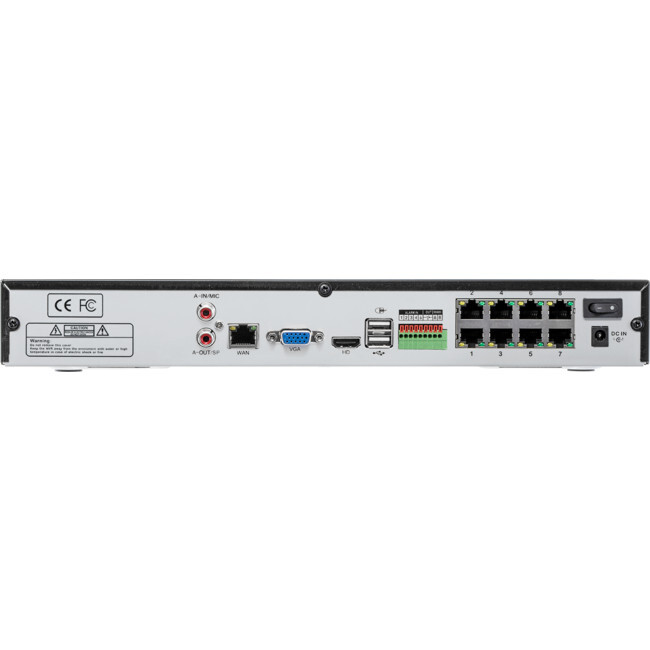

EXT INTERFACE
Network interface 1x RJ45 100M/1000M adaptive Ethernet port
PoE interface 8CH (IEEE 802.3af)
Alarm input 4CH
Alarm output 1CH
RS-485 1CH
USB ports 2x USB2.0 ports
GENERAL
Power supply DC 48V/3A
Power consumption <5W (Without HDD)
Operation temperature/ humidity -10°C ~ 55°C/10% 90%
Dimension (mm) 360 (W) x 242.4 (D) x 48 (H) mm
Weight 2.5 kg

(NVR16IQ4KV3)

SKU NVR16IQ4KV3
Model # RC7-02016K-8P
Barcode # 9328202031471
Brand DOSS
Assembled Width 2.850m
