Overview

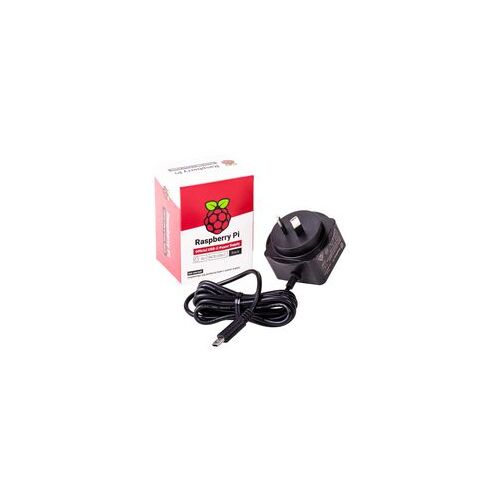

Official Raspberry Pi power supply, ideal for use with the Raspberry Pi 4 Model B board. This power supply comes with USB Type C lead and AU mains plug. It supports up to 3A of current to power devices through the USB ports on the board.

 Specifications

Output

• Output voltage: +5.1V DC
• Minimum load current: 0A
• Nominal load current: 3.0A
• Maximum power: 15.3W
• Load regulation: ±5%
• Line regulation: ±2%
• Ripple & noise: 120mVp-p
• Rise time: 100ms maximum to regulation limits for DC outputs
• Turn-on delay: 3000ms maximum at nominal input AC voltage and full load
• Protection: Short circuit protection, Overcurrent protection, Over temperature protection
• Efficiency: 81% minimum (output current from 100%, 75%, 50%, 25%), 72% minimum at 10% load
• Output cable: 1.5m 18AWG
• Output connector: USB Type-C

Input

• Voltage range: 100-240Vac (rated), 96-264Vac (operating)
• Frequency: 50/60Hz ±3Hz
• Current: 0.5A maximum
• Power consumption (no load): 0.075W maximum
• Inrush current: No damage shall occur and the input fuse shall not blow

.
