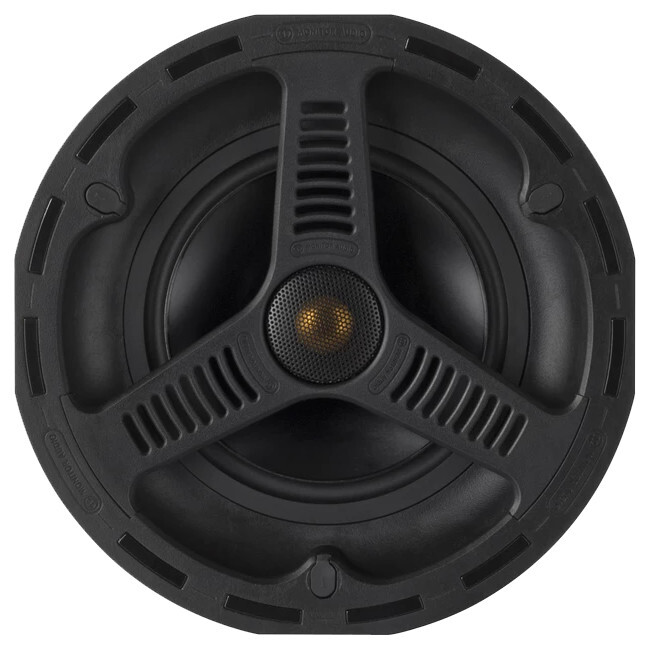

AWC265- ALL WEATHER- 2 WAY IN-CEILING SPEAKER

Developed using all C-CAM driver systems derived from Monitor Audio's critically acclaimed hi-fi speakers, the AWC265comprises a stylish two-way 61/2”C-CAMbass driver.

Technology

  • Quick and easy installation
  • High Performance C-CAM bass and high frequency drivers
  • Stainless Steel ‘Trimless’ grille – strong and resistant to corrosion
  • Non-ferrous Samarium Cobalt magnets for grille attachment – prevent rust and corrosion
  • IP55 certified for extreme climate conditions: Salt Spray, UV stability, Water, Vibration, Anti-corrosion
  • Patented Tri-grip Dog-leg fixings for easy, long-lasting installation
  • EPDM barriers to prevent moisture. EPDM is an extremely durable synthetic rubber membrane (ethylene propylene diene monomer)
  • Gold plated push terminals with silicon cover
  • Stainless fixing screws with Silicone covers
  • Tweeter level attenuation (internal) – set prior to installation
  • Applications: pool rooms, bathrooms, marine deck, universal outdoor installation



Specifications



Frequency response 60 Hz – 30 kHz

Nominal Impedance

8 ohms
Sensitivity (1W@1M) 88 db
Maximum SPL 105.8dBA
Power Handling (RMS) 60 Watt
Recommended Amplifier Requirements 20-60 Watts
Drive Unit Complement

6.5" C-CAMcone bass driver
1" C-CAMGold Dome tweeter (fixed angle)

Adjustment Controls HF Level Switch (+3 dB / 0 dB / -3 dB) - Adjustable at the point of installation
Overall Diameter (Including Grille) 251.71mm (915/16")
Mounting Depth

88.5 mm (31/2")

Cut-Out Hole Diameter 211 mm (81/4")
Fixing Type 3 positionTri-Gripdog fixings
Connection Gold plated ‘push’ type terminals
Grille attachment Magnetic - (optional square grille- outer dimmensions 249 x 249 mm(93/16")
Construction Material Mineral Filled PC-ABS Polymer (UL V0 Fire Retardant,RoHS2 Compliant)
Weight 2.04 kg (4 lb 8 oz)
Pre- Construction bracket CB6Pre-Construction Bracket(Purple)
Back Box CCBOX-R/CMBOX-R

(AWC265)

SKU AWC265
Model # AWC265
Barcode # 5060028979660
Brand MONITOR AUDIO
Assembled Width 2.911m
