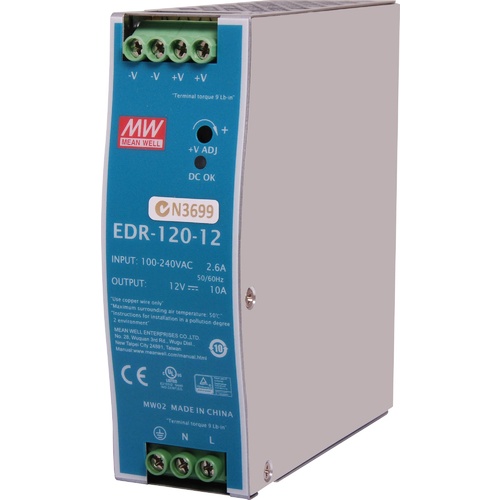

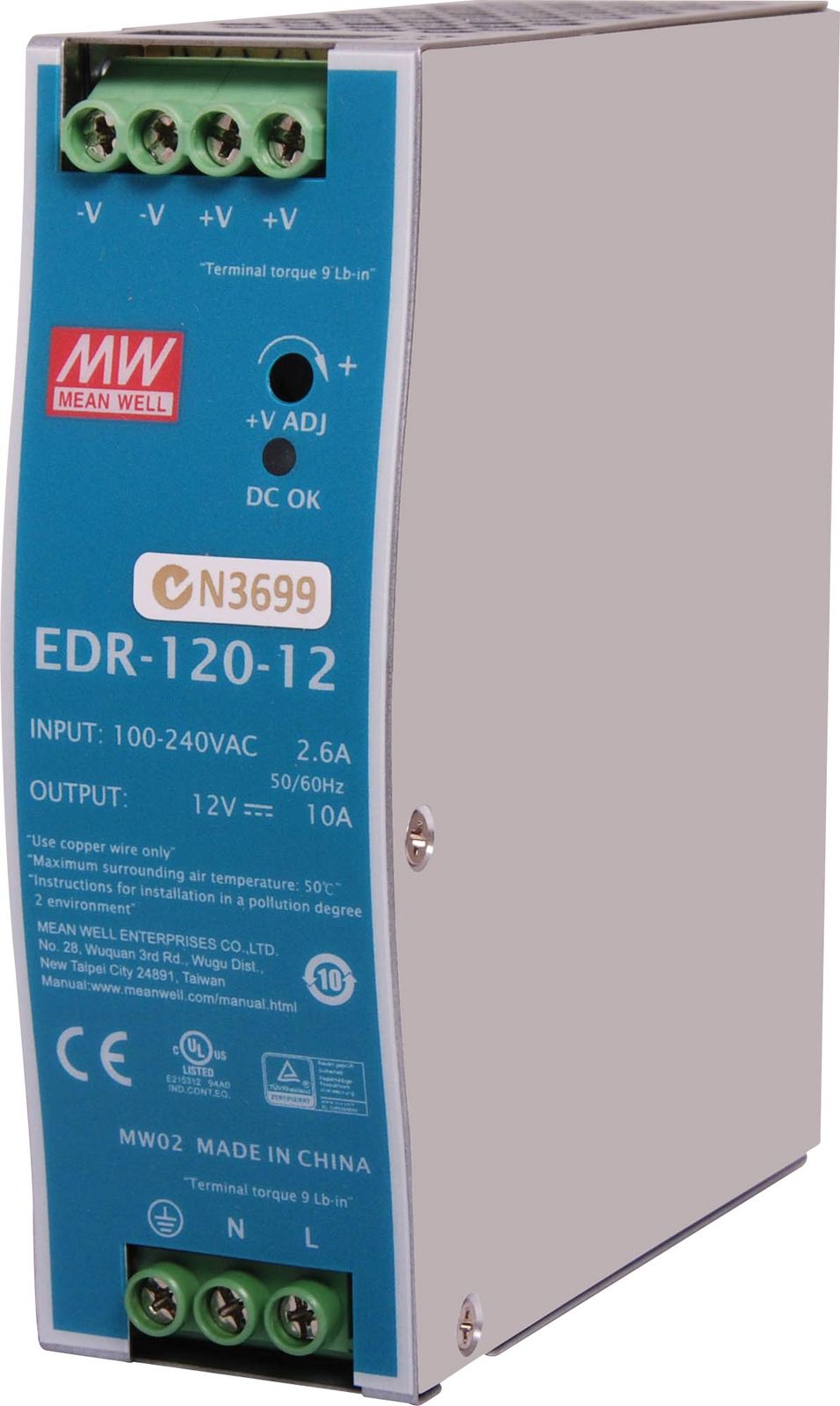

Switchmode power supplies offer several significant advantages over traditional linear transformer power supplies.They are far more efficient than their linear counterparts. As they do not use power or mains transformers the equivalent power supply weighs considerably less than traditional types. Physical size is also reduced. Though the power supplies are supplied in a vented steel cabinet they must be installed within a secondary earthed cabinet as the 240V input terminals are exposed.

Features

• Universal AC input/Full range
• Protection: Short circuit / Overload / Over voltage
• Cooling by free air convection
• Can be installed on DIN rail TS-35/7.5 or 15
• UL508 (industrial control equipment) approved
• EN61000-6-2 (EN50082-2) industrial immunity level
• 100% full load burn-in test
• Output
• DC Voltage: 12V
• Rated Current: 10A
• Current Range: 0-10A
• Rated Power: 120W
• Ripple & Noise: 100mV p-p
• Voltage Adjust Range: 12-14V
• Voltage Tolerance: ±2.0%
• Line Regulation: ±0.5%
• Load Regulation: ±1.0%
• Setup / Rise Time: 1200ms / 60ms @ 230VAC
• Hold Up Time (Typical): 16ms @ 230VAC
• Input
• Voltage Range: 90-264VAC 127-370VDC
• Frequency Range: 47-63Hz
• Efficiency (Typical): 85%
• AC Curremt (Typical): 2.25A/115VAC, 1.3A/230VAC
• Inrush Current (Typical): Cold Start 35A/230VAC
• Leakage Current: <1mA/240VAC
• Protection
• Overload: 105-130% rated power output
• Over Voltage: 14-17V
• Protection Type: Shut down o/p voltage, re-power on to recover
• Function
• DC Ok Signal: Relay contact rating (Max) 30V 1A resistive
• Environment
• Working Temperature: -20 - +60ºC
• Working Humidity: 20-95% RH non condensing
• Temperature Coefficient: ±0.03%/ºC(0-50ºC)
• Vibration: 10-500Hz, 2G 10 minutes/1cycle, period for 60 minutes. Each along X,Y,Z, axis
• Dimensions: 40W x 125H x 113D mm
• Weight: 0.6kg

• *Specifications are subject to change without notice.
