AD11AU - Analogue Audio Delay Processorwith Volume Control






Description

Our AD11AU has been designed to help correct audio delaysincurred when separating audio and video signals in an AV system.

The AD11AU can add a delay of up to 1 second selectable in 15 increments and has a volume adjustment of -75dB to 0dB.

Key Features

  • In-line 2ch analogue audio delay with line-level volume control

  • Supports 48KHz / 24 bit sample rates

  • Selectable audio delay from 50-1,000ms

    - 0-500ms in steps of 50ms

    - 500-1,000ms in step is of 100ms

  • Adjustable line level volume control from -75dB to 0dB

Specifications

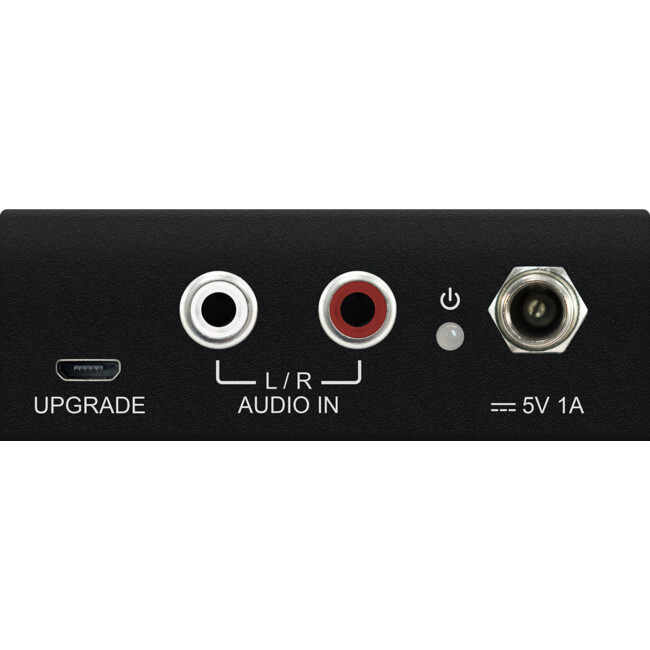

  • Audio Input Connectors: 2 x RCA analogue left/right

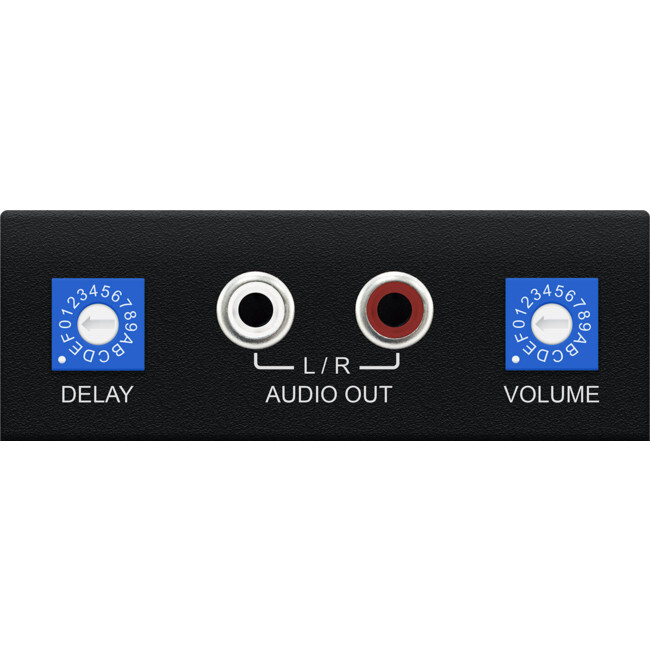

  • Audio Output Connectors: 2 x RCA analogue left/right

  • Audio Delay: Rotation switch

  • Volume Control: Rotation switch

  • Casing Dimensions (W x H x D): 70mm x 25mm x 73mm

  • Shipping Weight: 0.4kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)

  • Power Supply: 5V/1A DC

Box Contents

1 x AD11AU
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x Quick Reference Guide









(AD11AU)

SKU AD11AU
Model # AD11AU
Barcode # 9340242003195
Brand BLUSTREAM
Assembled Width 0.438m
