DESCRIPTION

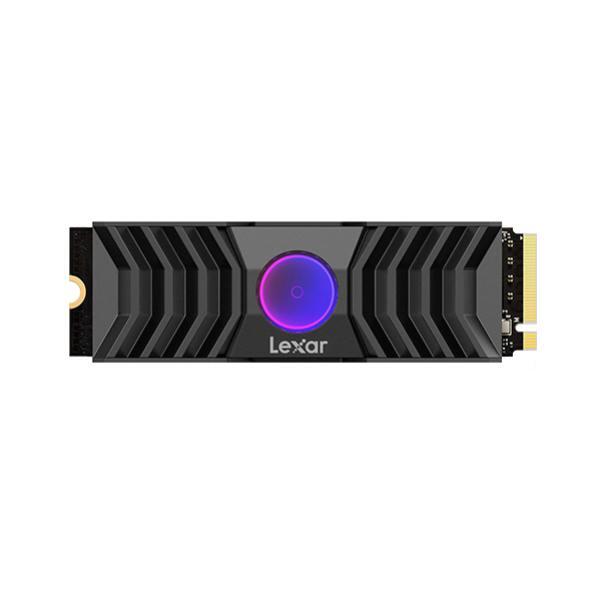

• Lexar LNM1090001T-RNANG 1TB PCIe G5x4 M.2 2280 up to 11500MB/s read, 9000MB/s write, with RGB FAN Heatsink
• PCIe 5.0 speeds of up to 12,000MB/s read, 11,000MB/s write1 deliver cutting-edge performance.
• A unique and potent heatsink features a heat-blasting fan plus programmable RGB lighting for the ultimate in cool.

Features

• Full-throttle Performance, Maximized Cooling
• Twice as Fast as PCIe 4.0
• Exceptionally Cool Design
• Built to Perform
• CPU Compatibility
• Monitor Drive Health and Optimize Performance
• Rigorously Tested
• The Lexar Professional NM1090 PCIe 5.0 SSD is DRAM-based and uses SLC dynamic cache to improve performance, reduce latency, and support Microsoft DirectStorage.

Specifications

• Form Factor
• M.2 2280
• Interface
• PCIe Gen5x4
• Speed
• 1TB sequential read up to 11,500MB/s, write up to 9,000MB/s
• Random read up to 1300K IOPs, random write up to 1400K IOPs
• 2TB sequential read up to 12,000MB/s, write up to 11,000MB/s
• Random read up to 1400K IOPs, random write up to 1400K IOPs
• 4TB sequential read up to 12,000MB/s, write up to 11,000MB/s
• Random read up to 1400K IOPs, random write up to 1400K IOPs
• Operating Temperature
• 0°C to 70°C (32°F to 158°F)
• Storage Temperature
• -40°C to 85°C (-40°F to 185°F)
• Shock Resistant
• 1500G, duration 0.5ms, Half Sine Wave
• Vibration Resistant
• 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis (X, Y, Z)
• TBW
• 1TB: 700TBW, 2TB: 1400TBW, 4TB: 3000TBW
• MTBF
• 1,500,000 Hours
• Dimensions (L x W x H)
• 80 x 24 x 17.35mm / 3.15” x 0.94” x 0.68”
• Weight
• 72.5g / 0.16 lbs
• Warranty
• Five-year limited warranty
