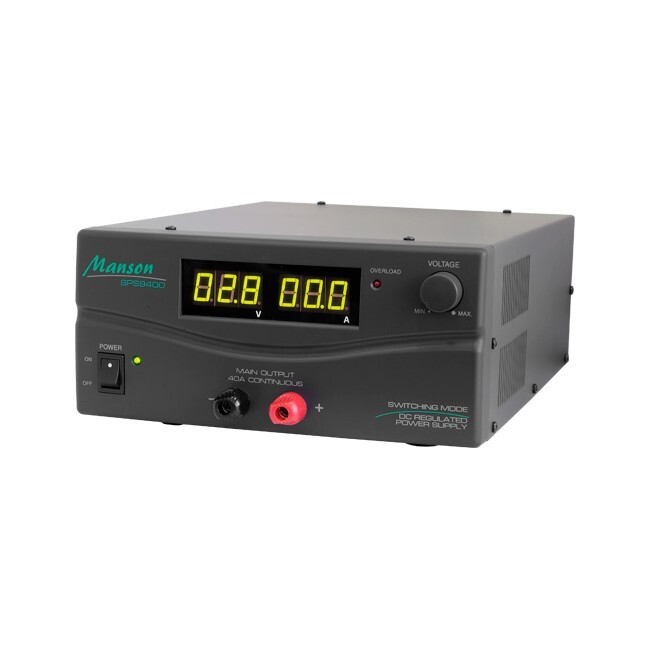

40 AMP 3-15V SWITCHING MODE DC REGULATED POWER SUPPLY
- Colour: Dark Grey

This series of HIGH POWER SWITCHING MODE DC REGULATED POWER SUPPLIES provides high current 40 Amps output in a lightweight and compact size case. They are suitable for a wide range of uses, such as radio equipment, and are ideal for high power car stereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, over temperature, and over voltage protection are standard.

  • 40A current output
  • High efficiency
  • Adjustable output voltages 3V to 15V
  • Fixed voltage mode at 13.8V
  • Light weight and small size
  • Overload temperature protection
  • Current fold-back circuit with LED indicator prevents overloading
  • Over voltage protection at 16.5V
  • Variable speed thermally controlled fan
  • High RFI stability
  • Power factor correction >0.95
Variable Output Voltage 3-15 VDC
Fixed Output Voltage Mode 13.8 VDC
Rated Output Current 40A
Ripple and Noise (P-P) 50mV
Load Regulation 200mV
Line Regulation 50mV
Input Voltage 230VAC / 50Hz
Efficiency > 78%
Meter Type LED Meter
V meter Range 3 digit display
A meter Range 3 digit display
Meter Accuracy 1% + 2 Digits
Protection Devices Overload, Short Circuit, Over Temperature, OVP
Cooling System Variable Speed Thermally Control Fan
Approvals CE EN61558, EN60950, EN55022, EN55011
Dimensions (WxHxD) 220x110x300 (mm)
Weight 3.5 Kg
Remarks Power factor correction > 0.95 at optimal load

(SPS9400)

SKU SPS9400
Model # SPS9400 DARK GREY
Barcode # 9328202033291
Brand MANSON
Assembled Width 4.300m
