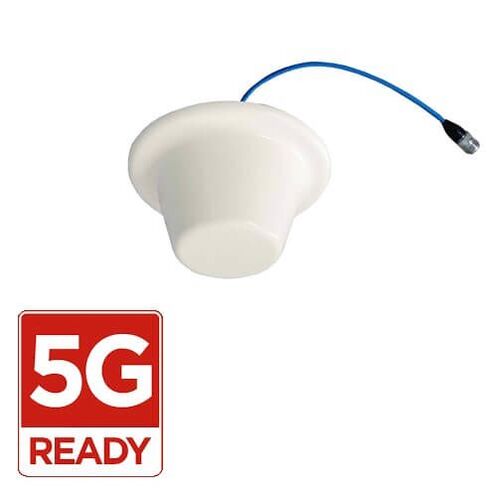

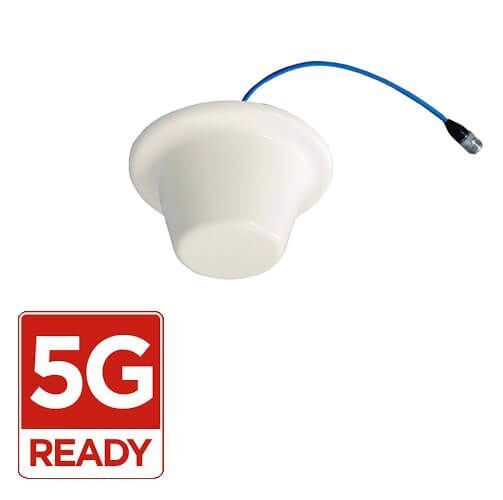

• Operating on all major 3G, 4G and 5G frequency bands, the Blackhawk Ceiling Dome Antenna is an ideal companion to Cel-Fi repeater systems installed in commercial and industrial buildings.
  • Indoor dome antennas are designed to be mounted to the ceiling of your building to provide consistently distributed mobile phone service from your Cel-Fi repeater/booster. The antenna is compact with a visually unobtrusive design similar to a smoke alarm, which also makes it suitable for installation in marine and caravanning.
  • Ceiling-mount antennas are installed by mounting through a ceiling tile or plasterboard and securing with its plastic wedge nut inside the ceiling space. The antenna’s Low PIM design supports multi-carrier aggregation and multiple mobile services output through the one antenna.

FEATURES

  • 2 dBi gain across lower bands 698 to 960 MHz
  • 5 dBi gain across mid bands 1695 to 4000 MHz
  • Low PIM RG-402 cable tail with N female connector
Connector N | 4.3-10 DIN Female
Dimensions ᴓ 186×86 mm
Weight 0.25 kg
Reflector Material Aluminium
Radome Material ABS (UV Stabilized)
Operating Temperature

 -40°C to + 65°C

ELECTRICAL SPECIFICATIONS

Frequency Range, MHz 698-960 1710-2700 3300-4000
Gain, dBi 2.0 5.0 5.5
VSWR ≤1.8 ≤1.5 ≤1.5
Polarization Vertical
PIM, 3rd Order 2x20W ≤-150 dBc
Horizontal Beam-width 360°
Vertical Beam-width 85° 54° 28°
Input Impedance 50 Ω
Max. Input Power 50 W
Lightning Protection DC Ground

(ANT-BH-OM-C)

SKU ANT-BH-OM-C
Model # ANT-BH-OM-C
Barcode # 9337692000492
Brand BLACKHAWK
Assembled Width 0.334m
