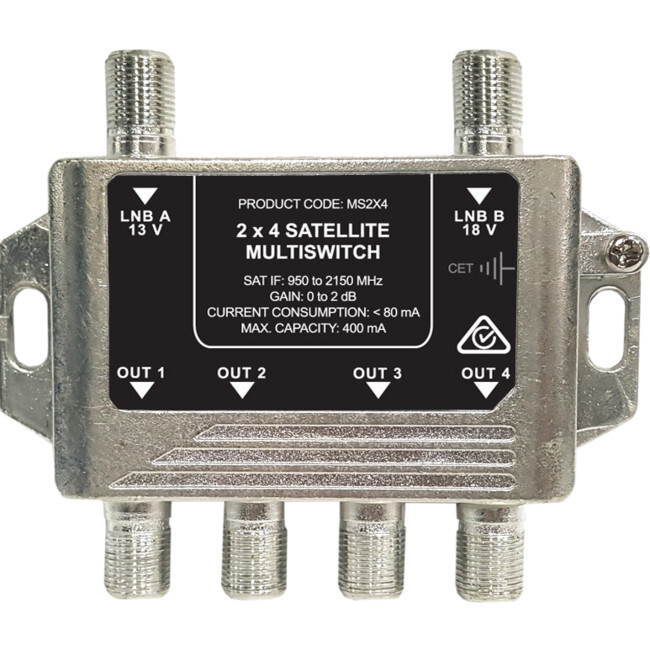

MS2X4 MULTISWITCH 2 WIRE 4 OUT

Features

  • For 4 subscribers or 2 IQ subscribers
  • Remote powered by satellite receiver
  • The IF polarity selection is controlled by the remote voltage provided by the receiver:
    < 14.5 V = Vertical
    > 15.5 V = Horizontal

Specifications

Inputs 2
Outputs / Subscribers 4
Through Loss: SAT-IF: 950 ... 2150 MHz 0 ... 2 dB
Isolation: Input = 25 dB [Typ. 26 dB]
Isolation: Switching = 25 dB [Typ. 26 dB]
Current Consumption < 80 mA
Capacity (IF Ports) Max 400 mA
Ambient Temperature - 20 ... + 50 °C
Dimensions (W x D x H mm) 89 x 72 x 16 mm







(MS2X4)

SKU MS2X4
Model # MS2X4
Barcode # 9333095026411
Brand JONSA
Unit Of Measure ea
Assembled Width 0.092m
