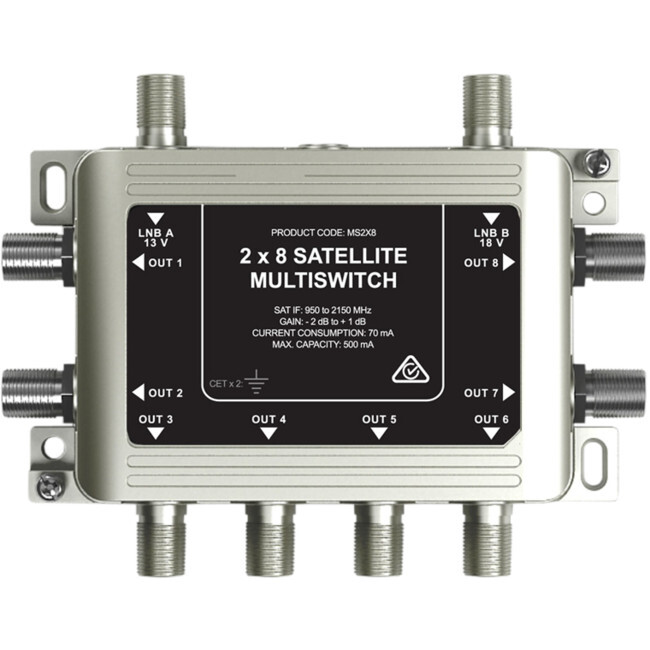

MS2X8 MULTISWITCH 2 WIRE 8 OUT

Features

  • For 8 subscribers or 4 IQ subscribers
  • Remote powered by satellite receiver
  • The IF polarity selection is controlled by the remotevoltage provided by the receiver:
    < 14.5 V = Vertical
    > 15.5 V = Horizontal

Specifications

Inputs 2
Outputs / Subscribers 8
Through Loss: SAT-IF: 950 ... 2150 MHz - 2 ... + 1 dB
Isolation: Input = 24 dB [Typ. 26 dB]
Isolation: Switching = 24 dB [Typ. 26 dB]
Current Consumption < 70 mA
Capacity (IF Ports) Max 500 mA
Ambient Temperature - 20 ... + 50 °C
Dimensions (W x D x H mm) 118 x 72 x 19 mm







(MS2X8)

SKU MS2X8
Model # MS2X8
Barcode # 9333095026633
Brand JONSA
Assembled Width 0.183m
