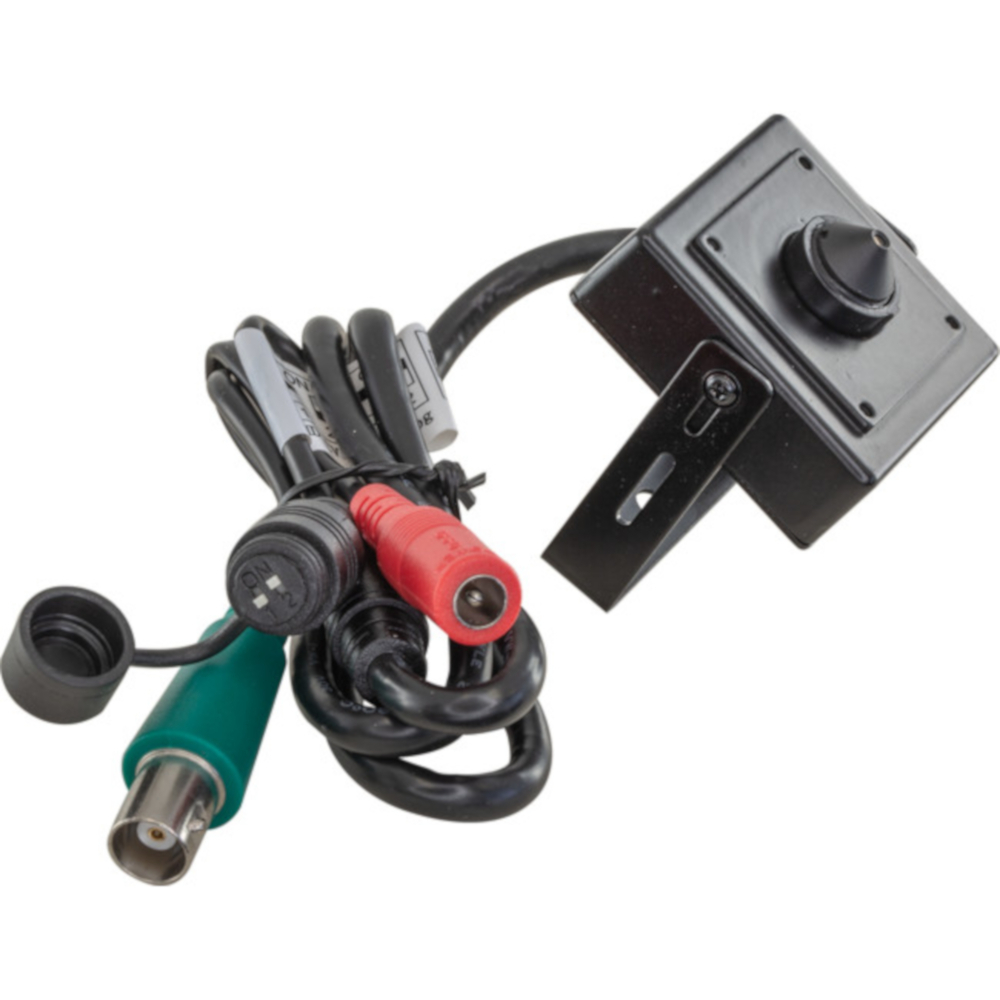

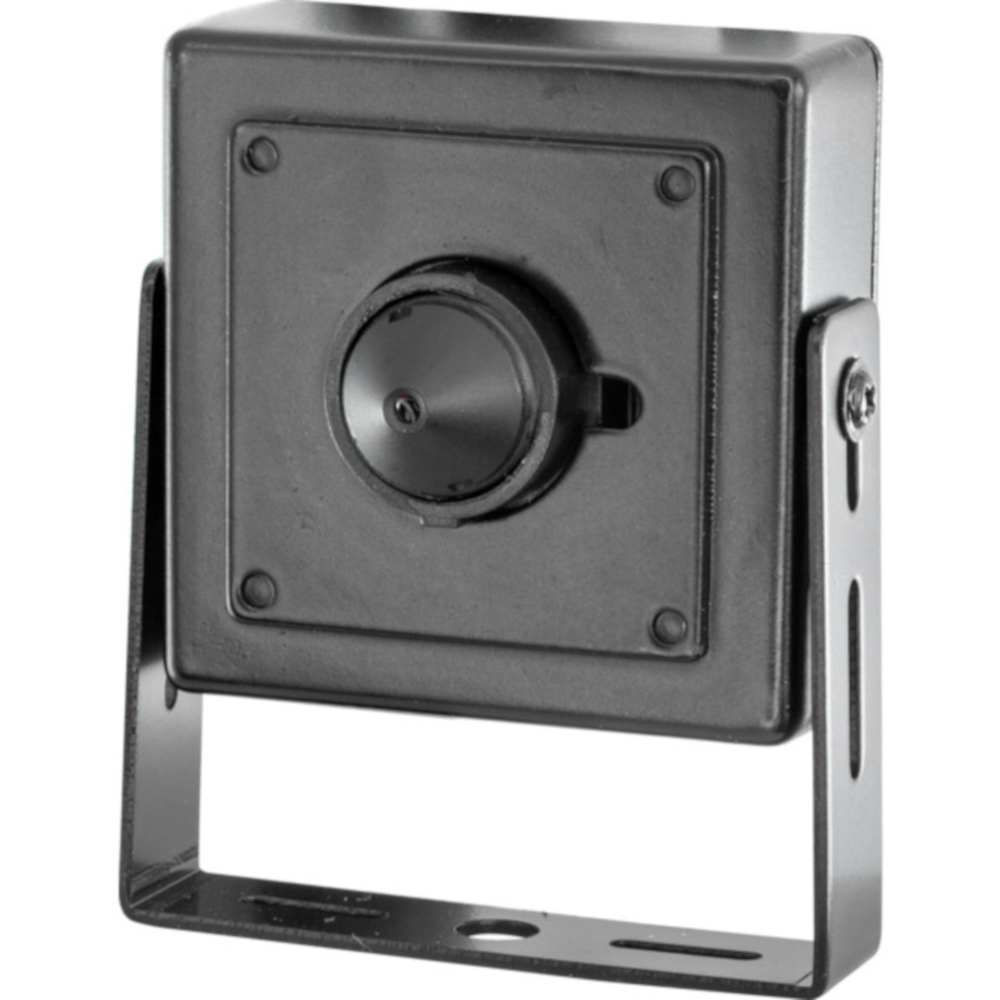

• Coaxial transmission AHD HD camera
  • Adopt low illumination1/2.7" 5MP CMOS image  sensor
  • Support CVBS 1280H/AHD, 4M/AHD, 5M/CVI-HD, 4M/TVI-HD,5M output
  • Video coaxial transmission distance  up to 500 m
  • OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analog signal output mode
  • Support D-WDR, 2D NR
  • OSD menu, various languages

Specification

Sensor 1/2.7"  5 Mega pixels CMOS
Effective pixels 2592(H) × 1944(V)
Video frame rate 2560x1440@25/30fps;2592x1944@20fps/12.5fps
Resolution 1280H (CVBS output)
Min. Illumination Color: 0.1 Lux/F1.2, B/W: 0.01 Lux/F1.2
Lens 3.7mm pinhole lens
Sync System 7
Electronic Shutter Auto/ Manual (X30~1/50000) / FLK
S/N Rate =50db(AGC OFF)
Video output 1.0Vp-p complex video output, 75O
Output  model PAL/NTSC adjustable
OSD menu
White balance ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL/AWB
NR 2DNR/3DNR, OFF
Image adjustable Brightness, sharpness, AGC
DWDR AUTO/ON/ OFF
Sens-up OFF/ Auto (X30, X25, X20, X15, X10, X8, X6, X4, X2)
BLC BLC/ HLC/ OFF
AGC Auto
Day&night switch Auto, EXT, B/W, Color
Privacy mask /
Motion detection /
Mirror Horizontal/ vertical/ rotation
Lens shading compensation OFF/ON
DPC Auto,/B/W
Defog OFF/ Auto
OSD menu Chinese, English and so on 12 languages
Output mode CVBS 1280H/AHD 4M/AHD 5M/CHD 4M/THD 4M/THD 5M
GENERAL
Transmission distance 75-3/300m,75-5/500m
Operating temperature -10°C ~ 55°C
Operating humidity
Power consumption =2w
Power supply DC12V
Dimensions(mm) 43(W)*43(H)*15(L)mm
Weight/PCS(g) 150g




(PH5AHD)

12months

SKU PH5AHD
Model # 8311MZ33
Barcode # 9328202031402
Brand DOSS
Unit Of Measure 1
Assembled Width 0.148m
