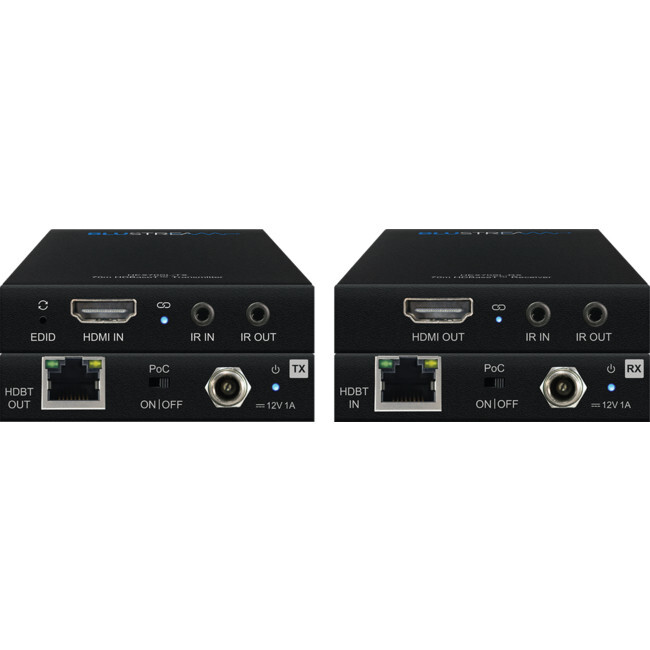

HEX70SL-KIT Slimline HDBaseT™ Extender Set - 70m (4K up to 40m), Bi-directional IR and Bi-directional PoC






The HEX70SL-KIT 4K HDBaseT™ extender set offers market leading features in a slimline chassis.

The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.



Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

  • Enhanced slimline chassis

  • Extends HDMI 1080p up to a distance of 70m over a single CAT cable

  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

  • Bi-directional IR pass-through

  • Supplied with Blustream IR Receiver and Emitter

  • Supports Bi-directional PoC to power extenders from either Transmitter or Receiver end

  • HDCP 2.2 Compliant with Smart EDID management



Specifications

HEX70SL-TX

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: Pin hole button

HEX70SL-RX

  • Video Input Connectors: 1 x HDBaseT™ RJ45 connector

  • Video Output Connectors: 1 x HDMI Type A, 19-pin, female

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • Power Supply: 12V/1A DC

  • Dimensions: 106mm x 73mm x 16mm (LxWxH)

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)



Box Contents

  • 1 x HEX70SL-TX
  • 1 x HEX70SL-RX
  • 1 x 12V/1A DC Power Supply
  • 1 xIR Emitter
  • 1 xIR Receiver
  • 2 x Mounting Kit
  • 1 x Quick Reference Guide



(HEX70SLKIT)

SKU HEX70SLKIT
Model # HEX70SL - KIT
Barcode # 9340242003317
Brand BLUSTREAM
Assembled Width 0.782m
