Kordz Pro Series 3 Passive 18Gbps High Speed with Ethernet HDMI Lead Flexible

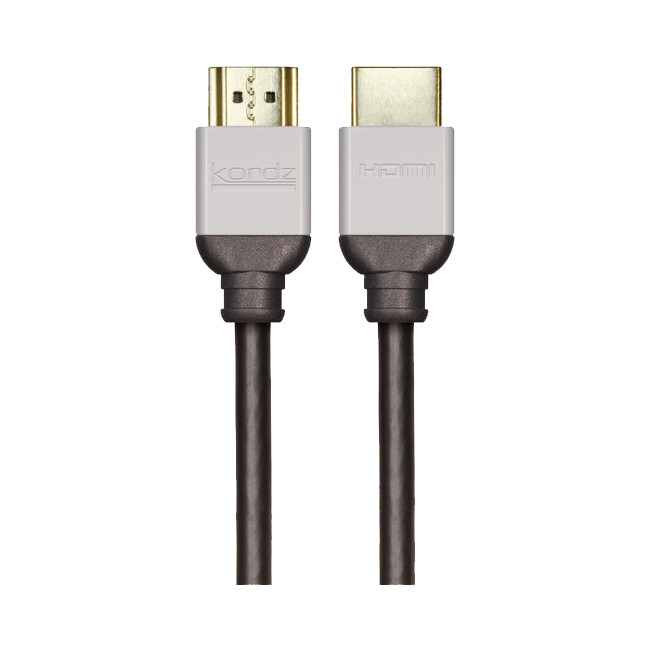

Kordz - K26016-0150-CH PRO3 Passive 18Gbps HDMI Cable

K26016-0150-CH
Length: 1.5m,4'11"
AWG: 30
Technology: Passive

The Kordz PRO3 series HDMI Cable is engineered for the professional AV integrator to make installations easier.

This is achieved through a combination of a lightweight, small form-factor connector assembly, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable.

This latest update of the PRO series HDMI cable alsoreduces the connector footprint to 65% of the previous iteration, and performance is upgraded to fully support 18Gbps across all lengths.

Available in lengths from 0.5m to 5m, the use of highquality materials and efficient production processes makes the PRO3HDMI Cable your most reliable choice for HDMI connectivity.

High Speed with Ethernet HDMI cable
Supports 2160p (4K/60 4:4:4) / 4320p (8K/30 4:2:0) on all lengths
Patented soldering techniques for benchmark inter-terminal uniformity
Lightweight ABS connector assembly with folded gold-plated HDMI connector
100% of units tested on the production line
UL CMG fire rated on all lengths
Lifetime warranty
Licensed HDMI 2.0 Adopter company

Specifications

HDMI CERTIFICATION - 0.5m - 5.0m Lengths

HDMI CTS (Certified Test Specification): High Speed with Ethernet
Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
HDMI Clock: 27-340MHz

MECHANICAL

Cable Diameter: 30AWG 5.7mm/0.22”Ø | 28AWG 6.5mm/0.26”Ø
Mounting Length:cable gauge dependent(see below)
Cable Bend Radius: cable gauge dependent (see below)
Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%

CONSTRUCTION

Primary Conductors: Solid 30-28AWG OFC, length dependent
Insulation on TMDS: HDPE, Foamed-PE, length dependent
Insulation on 4C + HEAC Pairs: HDPE
Shielding on TMDS Pairs: Al / Mylar, 125% coverage
Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 85% coverage
Cable Jacket: UL CMG fire-rated PVC composite materials
HDMI Connector Shell: Premium gauge folded steel, 1µ” 24K Gold plated
HDMI Connector Pins: Solid OFC, 15µ” 24K Gold plated
Termination: High Frequency Soldering
Connector Assembly: ABS connector shell with PVC injection moulded boot and strain relief

Physical Dimensions

Application Specifications

Video Format Support - Data rate per channel / Aggregate, TMDS Bandwidth

HDMI 2.0 - 8-bit YCbCr 4:2:0:
2160p*/50/59.94/60 - 2.97Gbpsc/8.91Gbps, 1.485GHz
HDMI 2.0Mode, 8-bit 4:4:4, 10/12-bit 4:2:2 or 16-bit 4:2:0:
2160p*/50/59.94/60-2D 9CEA-861-F - 5.94Gbpsc/17.82Gbps, 2.97GHz
2160p*30-3D - 5.94Gbpsc/17.82Gbps, 2.97GHz

VESA Graphics:Supports all as defined by HDMI 2.0 specification, up to 17.82Gbps
Color Spaces:RGB, YCbCr, xvYCC, AdobesRGB, sYCC601, ITU-BT.2020
Audio Formats Support:PCM 2.0-7.1, DD/DTS HD 7.1, 3D Audio (10.2 | 22.2 | 30.2ch)
HDMI Audio Return Channel:Supported, System Dependent

480i/p, 576i/p: ≤ 540Mbpsc/1.62Gbps, 270MHz
720p/1080i: 742.5Mbpsc/2.22Gbps, 371.25MHz
1080p - 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2or 4:2:0:
23.98/24/29.97/30 - 742.5Mbpsc/2.22Gbps, 371.25MHz
50/59.94/60 - 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-24/30 - 1.485Gbpsc/4.455Gbps, 742.5MHz
3D-50/60 - 2.97Gbpsc/8.91Gbps, 1.485GHz
1080p - 10/12/16-bit RGB/YCbCr 4:4:4 - 50/59.94/60fps:
1.86-2.97Gbpsc/5.57-8.91Gbps, ≤ 1.485GHz
2160p (UHD/4K)
HDMI 1.4b - 8-bit RGB/YCbCr 4:4:4, 10/12-bit 4:2:2 or 4:2:0:
4096x2160p/24 (SMPTE) - 2.97Gbpsc/8.91Gbps,1.485GHz
3840x2160p/23.98/24/29.97/30 - 2.97Gbpsc/8.91Gbps, 1.485GHz
