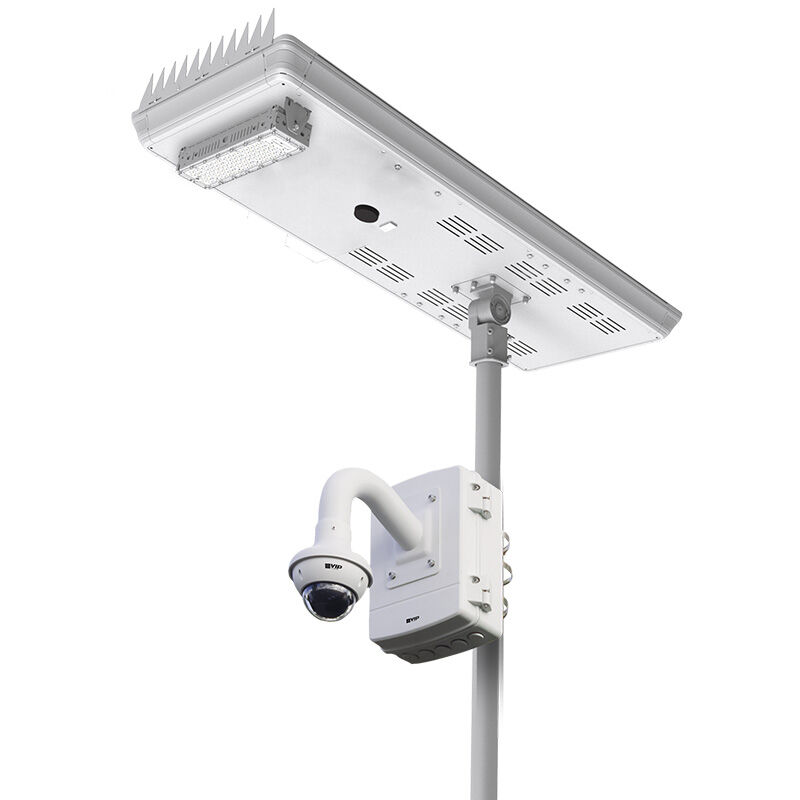

Deliver surveillance to any location with the SLR-B Series Solar CCTV Surveillance Systems from VIP Vision. These remote-view-enabled, standalone surveillance solutions are perfect in areas without network/power infrastructure. This may include black spot monitoring, on farms, or in temporary CCTV applications such as construction sites or events.

The solar panel unit features a 50W LED area light with microwave motion detection, which can be customised to your specifications. The entire system is powered by a rechargeable a 500Wh Lithium Iron Phosphate (LiFePo₄) battery. The LED area light and the LiFePo₄ battery are all combined into the one solar panel unit.

This unit includes a Specialist AI Series 4.0MP PTZ Dome (VSIPPTZ-4IRM-I) and 5.8GHz Wireless Bridge (WT5-ULB) for local remote view via WiFi.

Product features:

• Efficient 120W monocrystalline silicon solar panel
• Long range 5.8GHz WiFi bridge for remote view
• Lasts up to 2-3 days from full charge in cloudy conditions
• 500Wh lithium iron phosphate battery (LiFePo₄)
• Built-in 50W microwave motion sensor LED area light
• Ø50~60mm pole mount diameter
• Surveillance grade 256GB microSD card included
• 4 year warranty

Specifications

Solar Panel

• Panel Type - 120W monocrystalline silicon panel
• Conversion Rate - >21%
• Battery - 500Wh Lithium Iron Phosphate (LiFePo₄) with Low Voltage Cutoff
• Area Light - 50W LED
• Light Output - 9400lm (180lm/W)
• Beam Angle - 145° x 100° (batwing distribution)
• Motion Detection - Microwave (65°, 10m range @ 8m install height)
• Panel Tilt Adjust - -60° ~ 60°
• Ingress Protection (Panel) - IP65
• Wind Resistance - Up to 65m/s
• Dimensions (Panel) - 1321mm x 525mm x 161mm
• Pole Diameter - Ø50~60mm

Camera

• Camera Model - VSIPPTZ-4IRM-I (Default) / VSIPP-2DIRG-IL
• Camera Type - 4.0MP 4x Optical Zoom Mini PTZ Dome
• Image Sensor - 1/2.8" 4.0MP Progressive Scan CMOS
• Min. Illumination - 0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
• Lens - 2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
• Field of View - Horizontal: 32~97°, Vertical: 18°~51° (4x Optical Zoom)
• Lighting Compensation - BLC / HLC / WDR (120dB)
• Max. Record Resolution - 4.0MP (2560 x 1440) up to 25fps
• Video Compression - H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+
• Pan / Tilt Range - Pan: 0° ~ 355° / Tilt: 5° ~ 90° / Auto-flip 180°
• Pan / Tilt Speed - Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
• Ingress Protection (Camera) - IP66
• Vandal Resistance - IK08
• Construction - Metal
• Dimensions (Camera) - Ø128mm x 65mm

Accessories

• Included Accessories - Camera adapter, right angle bracket, mounting box, pole mount bracket, 256GB microSD, wireless access point
