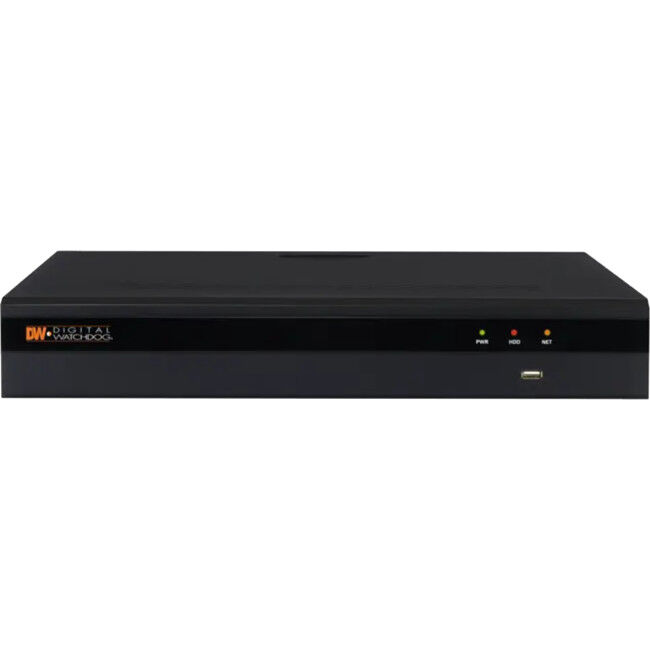

123-009 12CH NVR INC 8 PoE INC 4TB HDD - DIGITAL WATCHDOG

The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR.
Available with 8 PoE ports (expandable to 12 cameras), the NVRs can record and manage single-sensor IP cameras up to 4K, with 80Mbps maximum throughput.

Digital Watchdog® IP cameras, analog cameras, NVRs, DVRs, network devices and management software sold and distributed worldwide are designed and developed in U.S.A. and Korea.Manufactured in South Korea and Taiwan.

Features

• Complete installation, set up and camera configuration in under three minutes!

• CCIP™ system encryption protects your surveillance system from out of network attacks

• Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput

• Local power for up to 8 IP cameras via resident PoE switch

• DW Witness™ turns a smartphone or tablet into an additional surveillance camera

• PathFinder™ Peer-to-Peer (P2P) remote connection

• HTTPS encryption supported

• Automatic device discovery

• Control any ONVIF camera’s set up and features remotely

• 0TB-32TB storage options

• Snapshot Notify™: camera notifications sent to an email or CMS

• C3™ CMS and event server software up to 144 Channels

• Event notifications via email, text and C3™ CMS and push notifications to mobile devices

• Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV

• Dual-stream recording

• Easy drag and drop camera management

• Instant backup during playback

• Full HD output for local live and playback display up to 4K (3840×2160)

• Complete system analysis with real-time system, network and PoE status monitoring

• True HD and VGA simultaneous output support

• 4 sensor input, 1 alarm relay output

• Transaction verification via TCP and USB-serial

• Email event notifications with video clip

• Simple and free DDNS support for remote management

• Easy web-based client with multi-user access

• Advanced H.265, H.264 Linux embedded NVR

• Simultaneous live, playback, recording, back-up and network

• NVR health check with email notification

• NVR calculation and auto-recording configuration

• Help menu on major functions

• Add public view monitors with Spot Monitoring Modules

• Auto or manual firmware upgrade available

• Automatic private IP addressing

• NTP (network time protocol)

• Screen saver to protect monitor screen

• Import/export configuration between multiple NVRs

• USB mouse and GUI control

• 3 year warranty


specs

• Operating system		Embedded Linux®
  System	Video compression	H.265, H.264
  	Channel	12 Channel (DW-PVX16W multi-sensor IP camera uses 4 channels in the recorder, one per sensor).
  	No. of PoE	8 Ch
  	Max supported resolution	IP camera max. 4K (3840×2160)
  	Communication protocol	ONVIF®
  	PoE type	1Gbps, 802.3af
  Display	Speed	360fps
  	Screen mode	1, 4, 9 and 12
  Video-out	Monitor	True HD and VGA
  	resolution	1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840×2160 (4K)
  Recording speed		Up to 360fps up to 4K resolution
  Max. throughput		80 Mbps
  Max. HDD bay		4 x SATA HDD, up to 32TB
  Recording resolution		Dual-stream
  Recording modes		Continuous, C+M, C+S, scheduled, sensor and motion detection recording
  		Pre-alarm recording, emergency recording, quick backup
  Playback and search	Speed	x1, x2, x4, x8, x16, x32, x64, x100
  	Function	Intelli-search by time bar, calendar (date and time) and event search
  Audio output		1 Ch
  Alarm input/relay output		4 Ch/ 1 Ch
  PTZ control		RS-485, ONVIF
  Transaction verification		TCP and USB-serial interface
  LAN		1x gigabit ethernet (RJ45) – fixed IP, DHCP and DDNS
  Access		Web viewer: Live, playback and configuration up to 10 multiple connections
  		Client monitoring software:Mac® (Apple® S/W), C3™ (CMS S/W)
  		Compatible mobile apps: DW Mobile Plus DW Witness DW Site Viewer
  Backup device		Local backup by USB, network backup by CMS
  System recovery after power failure		Auto-reboot and journaling file system
  Other function	Firmware upgrade	FTP, USB
  	Back-up	Remote, USB
  	Special features	Local PoE switch Quick Setup under 3 minutes Snapshot Notify™: Programmable interval camera image verification sent to an email Event notifications via email, text and C3™ CMS and push notifications to mobile devices Real-time temp alert Digital Zoom in live and playback
  	Health check	Real-time system, network and PoE status monitoring
  System operation		IR remote controller (optional), USB mouse, PTZ control by keyboard (optional)
  Power requirements		110~240V A/C
  Total PoE Power Budget		150W
  Max. Power per Port		30W
  Power consumption		360 W total power budget, 5.5A, 18.75W per PoE channel (simultaneous)
  Operating temperature and humidity		41~104 °F (5~40 °C) / 20~90% RH
  Dimension (WxDxH)		17.32” x 15.66” x 2.79” (440 × 397.8 ×71 mm), 1.5U
  Certification		CE, FCC, KCC, WEEE, RoHS
  Warranty		3 year limited
