Features

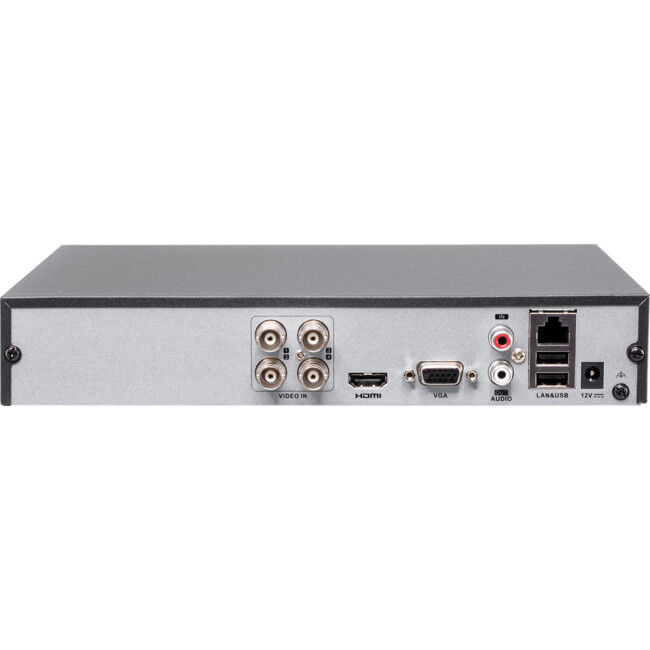

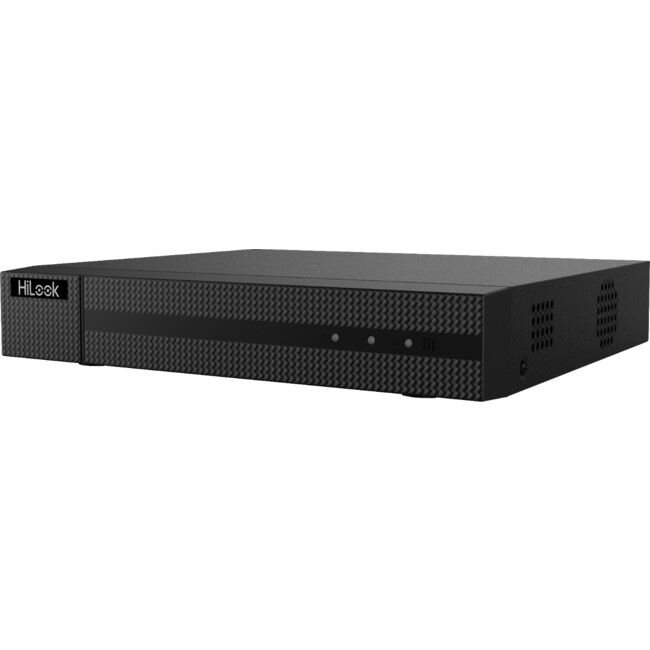

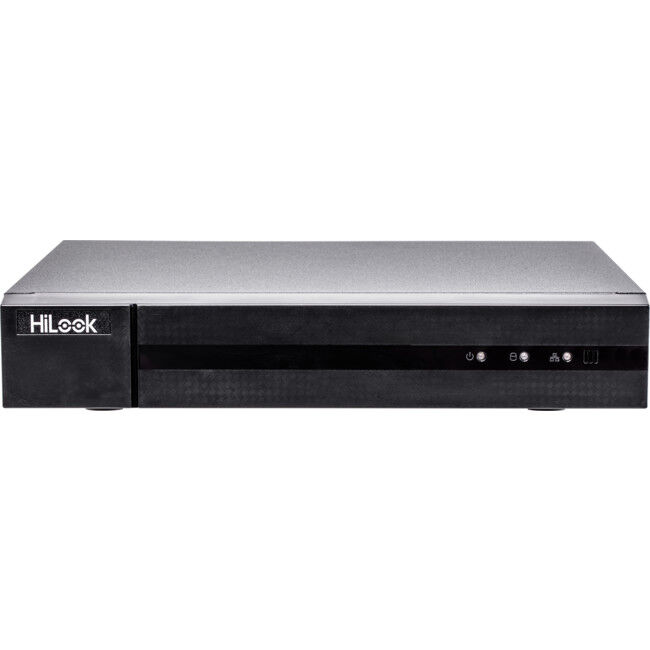

HiLook 4CH HD DVR, HD-TVI/AHD/CVI/CVBS/IP 5 in 1, 2-ch IP video input(up to 6MP), 5MP@12fps,4MP@15fps,3MP@18fps,1080p@25fps, 1x SATA

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 8 MP)
  • Up to 8 MP@8 fps encoding capability

Specifications

Motion Detection 2.0

  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

    • Recording

  • Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
  • Frame Rate

    Main stream:

    8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

    Sub-stream:

    WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bitrate 32 Kbps to 10 Mbps
  • Dual-Stream Support
  • Stream Type Video, Video & Audio
  • Audio Compression G.711u
  • Audio Bitrate64 Kbps

    • Video And Audio

  • IP Video Input

    • 2-ch (up to 6-ch)

    Enhanced IP mode on:

    4-ch (up to 8-ch), each up to 4 Mbps

    Up to 8 MP resolution

    Support H.265+/H.265/H.264+/H.264 IP cameras

  • Analog Video Input

    • 4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input

    • 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

  • AHD Input

    • 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

  • HDCVI Input

    • 8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

  • CVBS InputPAL/NTSC
  • HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input

    • 1-ch, RCA (2.0 Vp-p, 1 KΩ)

    4-ch via coaxial cable

  • Audio Output1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback4-ch

    • Network

  • Total Bandwidth96 Mbps
  • Remote Connection32
  • Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interfac
  • Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

    • Auxiliary Interface

  • SATA1 SATA interface
  • CapacityUp to 10 TB capacity for each disk
  • Alarm In/OutN/A
  • USB Interface2 × USB 2.0

    • General

  • Power Supply12 VDC, 1.5 A
  • Consumption≤ 15 W (without HDD)
  • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity10% to 90%
  • Dimension (W × D × H)265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)
  • Weight≤ 1.16 kg (without HDD, 2.6 lb.)

    • (204U-M1)

    SKU 204U-M1
    Model # 204U-M1
    Barcode # 6931847171407
