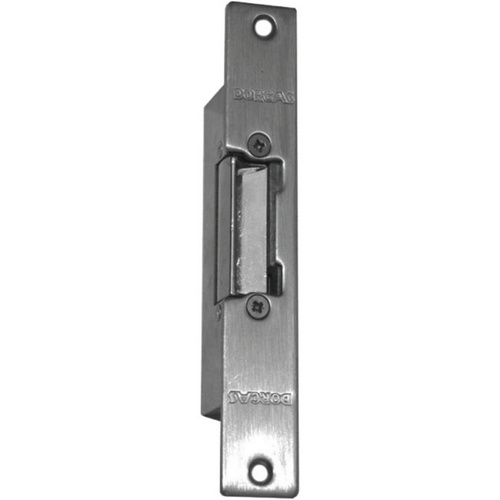

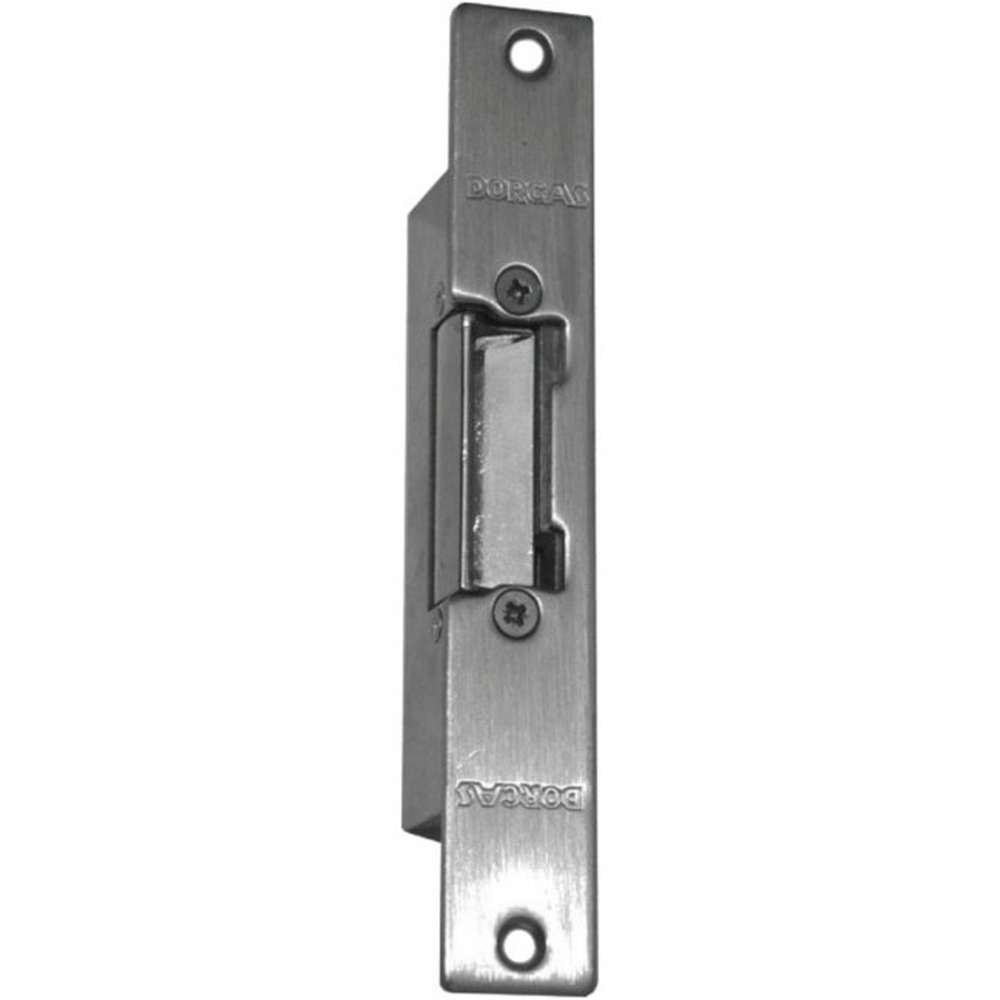

DOR100 12VAC/DC ELECTRIC DOOR RELEASE - DORCAS

Dorcas Strike Company was established back in 1972 it is located in Valencia SPAIN, and since it was established it progressively built a reputation as one of the leading electric strike manufacturer in Europe. The Dorcas strikes were first released in Australia back in1976 and progressively become one of the most popular strikes intheir class. The product was economically priced and was a choice by many Locksmiths, Intercom installers and access control industry for well over the past 30years. All Dorcasstrikes are manufactured to the highest manufacturing standards, they comply to the ISO9000, the stringent GermanTVU standard and the European CE standards. All the (DORCAS) branded models available in Australia are fitted with a extra low current 30? solenoid coils that only draw 350mA on power-up.

Features:

• Solid stainless steel face plate as standard
• Narrow style face plates, will fit most door frames
• Operates on, 12v DC, or 12-16v AC,
• Current draw 350mA, 12v DC or 12-16vAC
• Ideal for, Intercoms or Access Control applications
• Latch & Bolt face plates available
• Strong durable construction
• Built to ISO9227 standards
• ECONOMICALY priced
• 5 Year Manufacturers Warranty

Specifications:

• STANDARD Power to Open
• Style: Narrow style Stainless Steel Face plate, flush mount strike
• Operational voltage: 12v DC or 12-16v AC
• Current draw: 350mA
• Coil type: 30? coil
• Colour: Brushed stainless steel
• Dimensions: W25mm x H160mm x D28mm
• Latch opening with 40mm
• Warranty: 5 Years Manufactures Warranty
