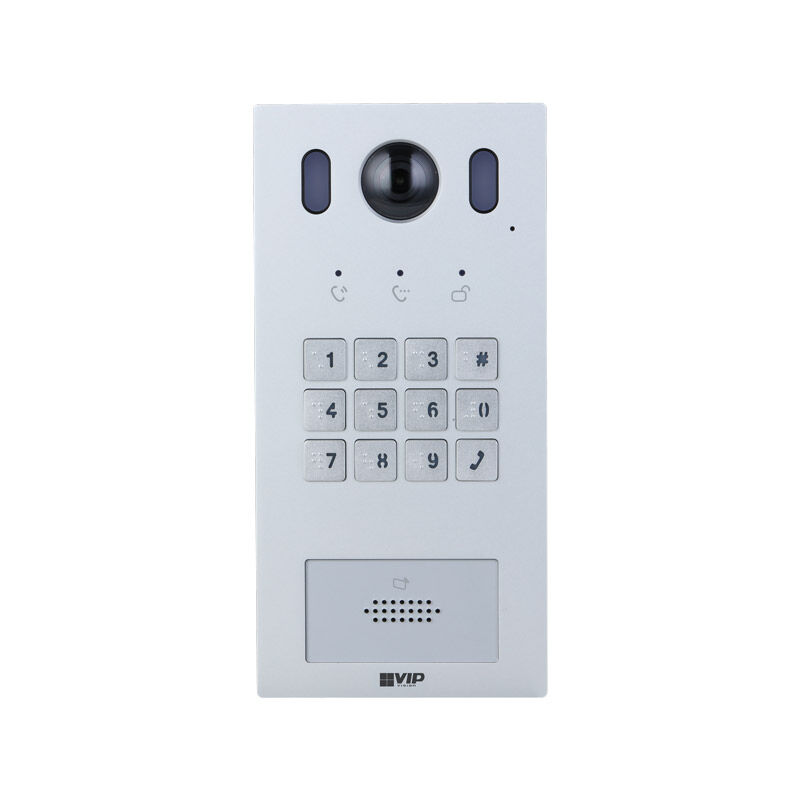

Residential D2 Series IP Door Station

The VIP Vision Residential Series door station, INTIPRDSD2, is a perfect multi-functional access and communication control solution for large single-dwelling premises. It features support for intercom upgrades via existing 2-wire infrastructure and for new IP installations. It features keypad or IC card unlock for easy access.

Features

• 1/2.9’’ 2.0MP sensor, 1080p Full HD resolution
• Wide angle lens with 140° horizontal field of view
• Keypad for code unlock & NFC reader for card access
• Rings all monitors on call; add up to 10 monitors
• Intuitive, easy-to-use mechanical button interface
• 48VDC / PoE (802.3af/at) power input support
• IP65/IK08 weather & vandal resistant front plate
• Supplemental white light for illuminating visitors

Specifications

General

• Main Processor: Embedded Microprocessor
• Button Illumination: Supplemental White Light (AGC) with backlit keypad
• Card Support: Mifare, Up to 30mm card detection, AM Modulation, 13.56MHz, 42dBuA/m@10m max. TX power
• Tamper Detection: Yes
• Internal MicroSD Slot:MicroSD Slot, up to 256GB (sold separately)
• Max. Additional Door Stations:20
• Max. Indoor Monitors: 10
• App Connection: QR Code

Camera

• Camera System: 1/2.9" 2.0 Megapixel CMOS with 2mm lens (Horizontal. FoV: 140°)
• Low-Light Application: N/A
• Input / Output: 1 x RJ45, 1 x 12V/600mA, 1 x Alarm I/O, 1 x Wiegand, 1 x RS-485
• Audio / 2-Way Talk: Omni-directional Microphone & Embedded Loudspeaker for 2-way talk
• Ethernet / Network: 10M/100Mbps Self-adaptive / TCP/IP protocol

Environmental

• Vandal Resistant: IK08
• Ingress Protection: IP65 (Front plate)
• Construction: N/A
• Installation Options: Surface mount / Flush mount (sold separately)
• Power Input: 48VDC, PoE (802.3af/at)
• Power Consumption: Standby <5W / Operation <7W
• Weight: 0.69kg
• Dimensions: 200 x 98 x 35mm

Other

• Interface: 1 x Door Chime, 1 x Exit Button, 1 x Lock Control
• Operating Environment: -40°C ~ +60°, 10~90% relative humidity
