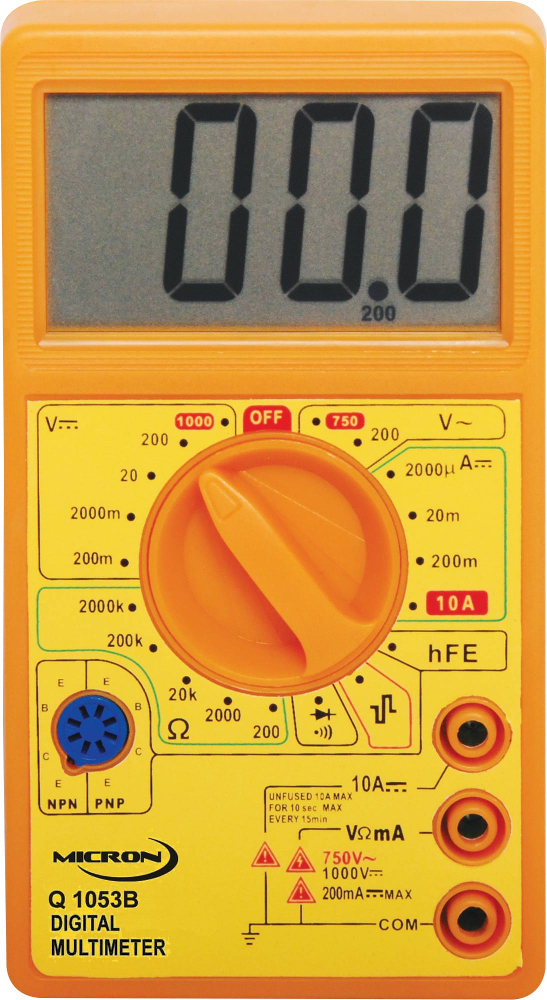

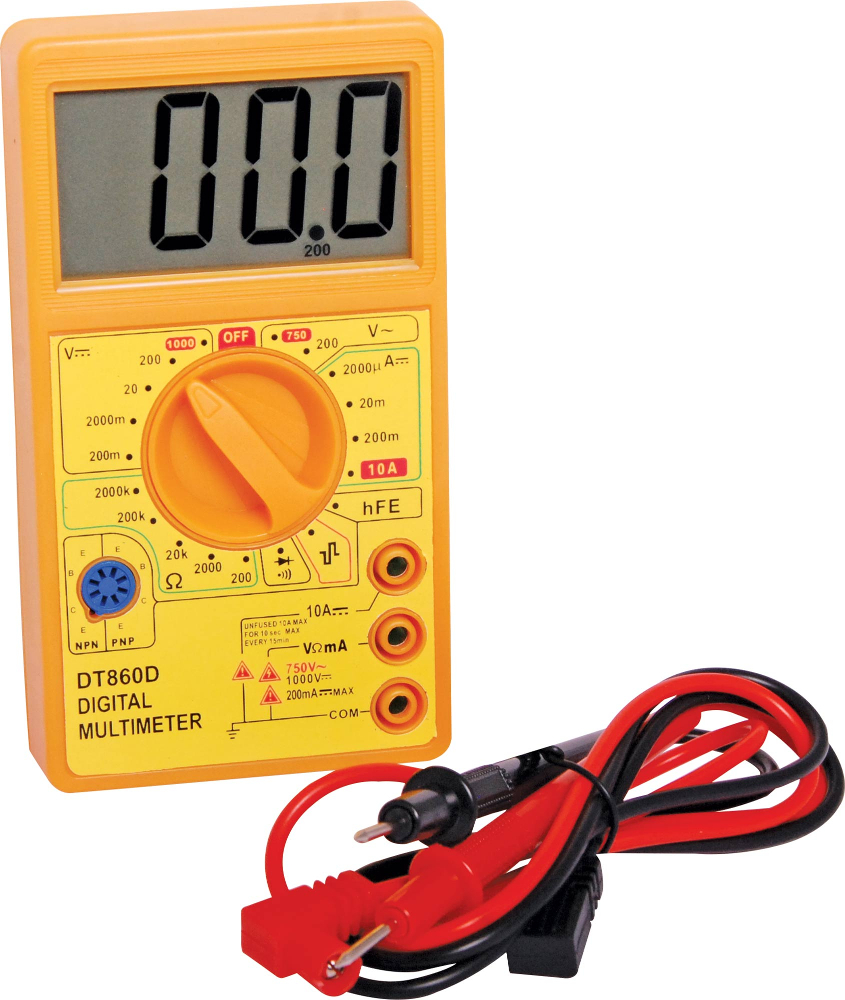

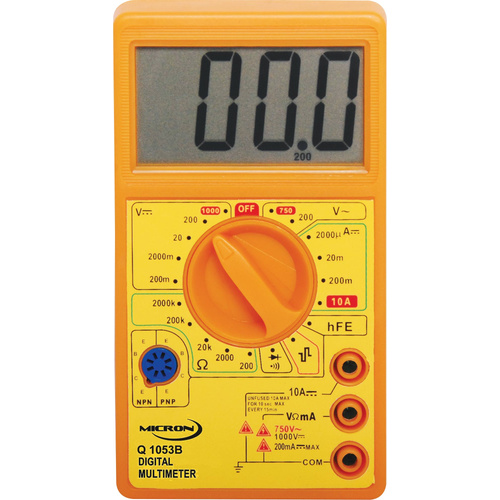

Featuring 19 ranges, square wave output, continuity buzzer, in-built hFE transistor and diode test function. Suitable for students or budding enthusiasts. This meter offers quality and features found in much more expensive models, but at the fraction of the price. Perfect as a spare meter for the toolbox or work van. Supplied with test leads.


Features

  • Low battery indicator
  • Jumbo display
  • Continuity buzzer
  • Square wave output
  • Transistor tester
  • Current measurement
  • Voltage measurement
  • Diode tester
  • Battery included
  • Cat II 500V

(Q1053B)

12 Months

  • Voltage DC: 200mV, 2V, 20V, 200V, 1000V (±0.5%+4d)
  • Voltage AC: 200V, 750V (±1.2%+10d)
  • Current DC: 2000μA, 20mA, 200mA, 10A (±2%+2d)
  • Resistance: 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ (±1%+8d)
  • Diode test: Included
  • Continuity test: Audible buzzer
  • Transistor test: Measures hFE, NPN/PNP identification
  • Display: 3.5 digit LCD, 1999 count
  • Protection: 500mA M205 fused on all inputs,
  • except 10A range
  • Dimensions: ≈ 68W x 24D x 125H mm



SKU Q1053B
Model # Q1053B
Barcode # 9321758195376
Unit Of Measure each
