2 CH WIRELESS SYST 520-556MHZ-1 X RU8012DB RX

Overview

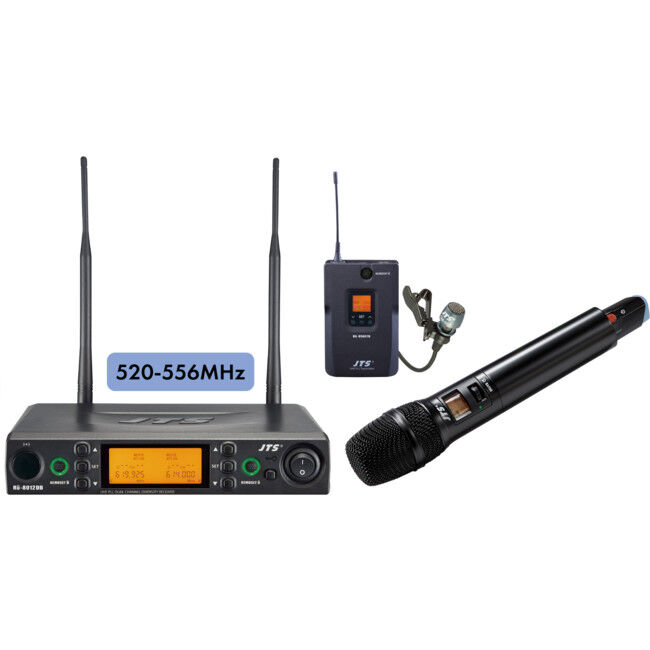

JTS 8012DBKITHBB1- 2 Channel wireless mic system- 520-556MHz

Includes:

RU8012DB Reciever

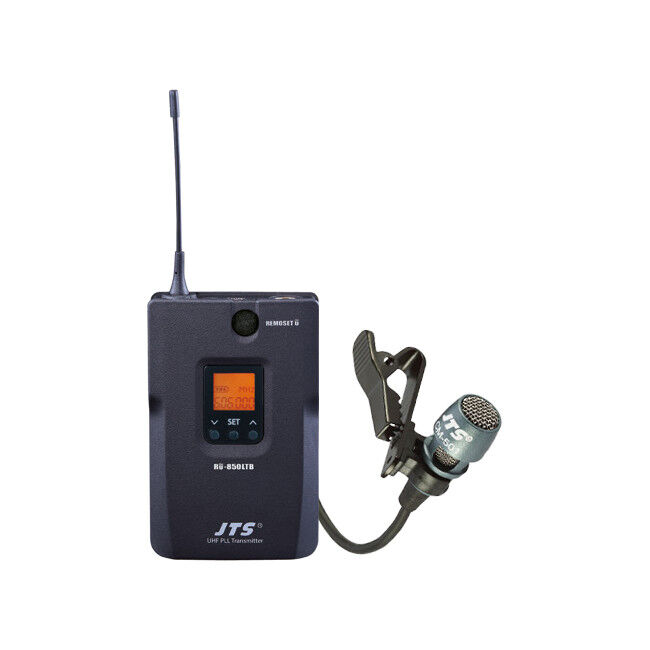

RU850LTB Belt-Pack Transmitter
RU850LTH Handheld Transmitter
CM-501 Lapel Mic

RU8012DB

RU-8012DB Reciever

Features:

Base on the successful experience of US-8002DB, the RU-8012DB is designed with JTS 2nd generation wireless technology. To cope with the squeezed radio spectrum, the system provides more compatible channels within limited bandwidth. The patent pending REMOSET sends the scanned channel data to transmitter by pushing a button. To meet critical audio demand general noise and hiss noise have been reduced to an extremely low level. 100 meter operation range meets most demand from most applications. To be environment friendly an integrated charger is available as an option.

SPECIFICATIONS

RU-8012DB

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	520-556MHz
Frequency Setting	Ultrasonic / REMOSET (Transmit)
Receiving Mode	Antenna Diversity
Bandwidth	36MHz
S/N Ratio	>105dB(A)
T.H.D	<0.6% @ 1KHz
Sensitivity	−95dBm, S/N >80dB
Rejection Ratio	>80dB
Frequency Response	50Hz~16KHz ±2dB
Antenna Type	BNC Socket
Antenna Booster Power	12~15V DC / 100mA
Display	LCD
Display Contents	Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF Meter, Frequency Scan, Audio Level, Volume
Controls	Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output Attenuaiton (XLR), Frequency Scan (ON/OFF)
Audio Output Level	Ref/ ±22.5KHz Dev @ 1KHz Tone ψ6.3 Phone Jack / −10dBV XLR Jack/ −4dBV (Line) / −24dBV (MIC)
Audio Output Impedance	600O
Squelch	Pilot Tone & Noise Mute
Output Connector	2 independent balanced XLR and 2 Ø6.3mm unbalanced.
Power Supply	12~15V DC / 500mA
Dimension (W×H×D)	212.3mm × 38.3mm × 144mm
Notes	Acutal product specifications may vary depending on model and region

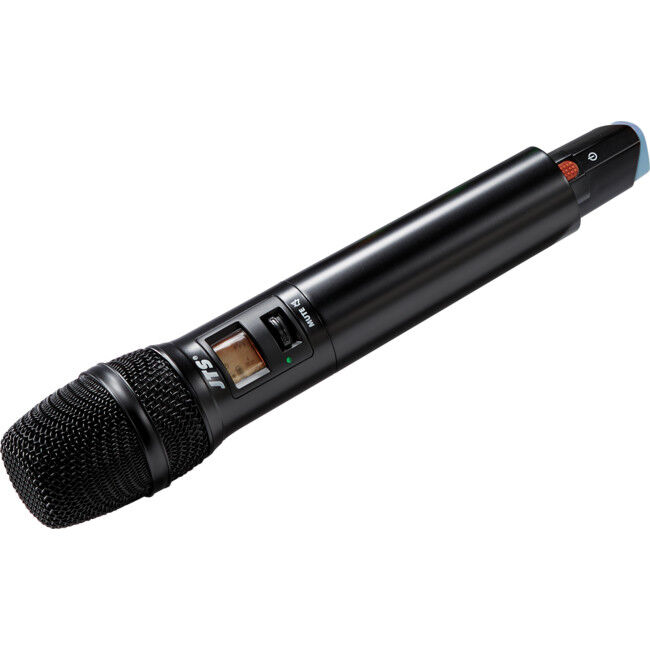

RU-850LTH

RU-850LTH Handheld Transmitter

This innovative transmitter is designed with both REMOSET U and full function setting at itself. The settings include Frequency, Group/Channel, Sensitivity, RF Power, and Auto Power Off. All data will be transferred to this transmitter by pushing of the REMOSET U button at receivers front panel. Auto Power Off feature can be set OFF or ON with selection of 10, 30 and 60 minutes. This will save battery life and avoid over discharge. Besides REMOSET U a user can carry out setting at transmitter side.

A quick Lock On key is built inside. Recharging circuit and connecter are already built in case users want to upgrade the system.

Specifications

Frequency Preparation	PLL Synthesised Control
Carrier Frequency Range	520-556MHz
Frequency Setting	REMOSET U (Receive)
RF Outputs	Low / High
Stability	< ±10KHz @ Fc
Frequency Deviation	±48KHz
Spurious Emissions	< −50dBc
Function	Mute, Auto Power Off, Sensitivity Adjust, Low Battery
Display	LCD + LED
Controls	Power, Mute, Group, Channel, Frequency, Gain Adjust, Auto Power Off, Key Lock
Battery	UM# AA + 2
