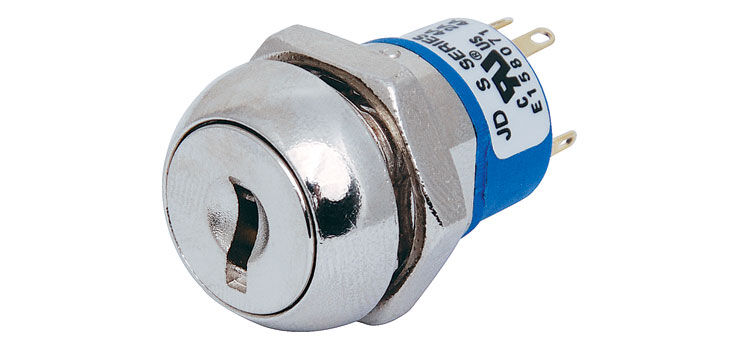

2 Position DPDT Spring Return 606 Key Keyswitch

  • Panel hole 19mm
  • length 27.5mm from rear of front shroud
  • 33.6mm overall depth
  • 61mm depth with key inserted
  •  including terminals
  • Overall diameter 22mm
  • Rated 2A @ 250V AC


Note: Key removable in left hand position 1 only.
Supplied with two 606 keys

  • Connection Details
  • Pole 1 makes to:
  • Pos. 1 - 8, 1
  • Pos. 2 - 1, 2
  • Pole 2 makes to:
  • Pos. 1 - 4, 5
  • Pos. 2 - 5, 6

Specifications

Electrical

  • Contact Rating: 4A 125VAC/28VDC, 2A 250VAC
  • Contact Resistance: Below 10 millionΩ
  • Insulation Resistance: 1 Billion Ω Min.
  • Dielectric Strength: 1000V RMS Min. sea level
  • Electrical Life: 6000 make-and-break cycles at full load
  •

Materials

  • Lock Housing: Zinc Alloy die-casted nickel Plated.
  • Cylinder: 4 Disc Tumblers Constructed, Zinc Alloy die-casted nickel Plated.
  • Keys: Brass, Original Colour or Nickel Plated.
  • Contacts: Super Hard Copper Alloy, Silver Plated.

Mounting Nut: Zinc Alloy Die Cast, Nickel Plated.

*Specifications are subject to change without notice.

(S2603)

12 months

SKU S2603
Model # S2603
Barcode # 9321758186893
Brand BOURNE
Unit Of Measure each
