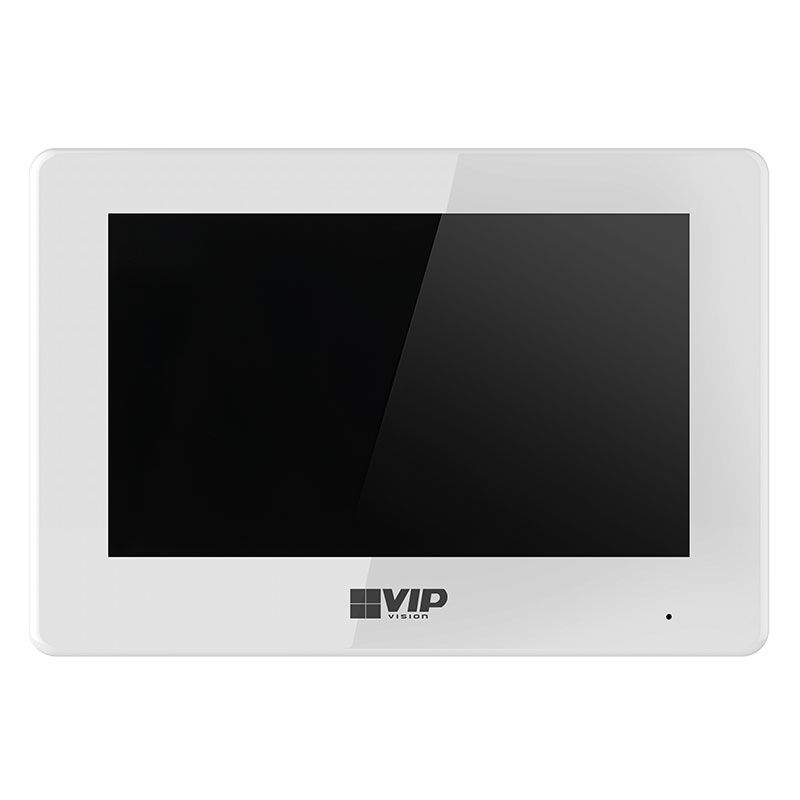

The INTIPMON2W2 touchscreen indoor monitor is the perfect upgrade solution to your old intercom. Upgrade and experience a multitude of modern intercom features, all using your existing two-wire infrastructure.

Product features

• Slim 7" touchscreen indoor intercom monitor
• Connect to door stations and monitors via 2-wire
• MicroSD card slot (up to 64GB) for edge recording
• Dual-way bidirectional talk with built in microphone
• Record and snapshot video calls/messages
• All calls and messages logged
• Remote view, unlock and 2-way talk via iOS & Android devices
• Built-in 12V power output to power devices

Specifications

Monitor

• Main Processor- Embedded Microprocessor / Embedded Linux OS
• Video Compression - -
• Audio Input - Omni-directional Microphone
• Audio Output - Embedded Loudspeaker
• Bidirectional Talk - Support
• Display Size - 7" Colour TFT LCD
• Display Resolution - 1024 x 600
• Alarm Support - Yes; 6 Input channels / 1 output channel / 1 x RS485
• Operational Input - Capacitive Touchscreen
• Internal Capacity - MicroSD Slot, up to 64GB
• Ethernet - 10M/100Mbps adaptive
• Network Protocol - SIP / IPv4 / RTSP / RTP / TCP / UDP

Environmental

• Operating Temperature - -10 ~ +55°C / 10 ~ 90%RH (max.)
• Installation - Surface wall mounting bracket & kit
• Power Input - Requires INTIPPOE2W2
• Power Consumption - Standby < 2W / Operation < 6W
• Dimensions - 189mm x 130mm x 27mm

Other

• Power Output - 1 (12V/100mA)
