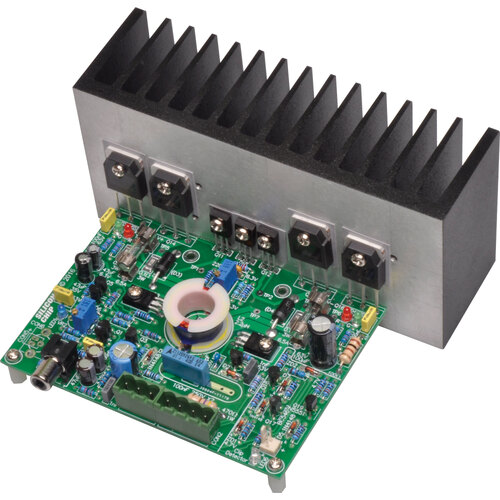

SC Jan-May ‘17) This completely new amp design incorporates most of the features of Silicon Chip Ultra-LD Mk4 200W amp but uses easy-to-solder through-hole components - no SMD! 200W into 4? load.

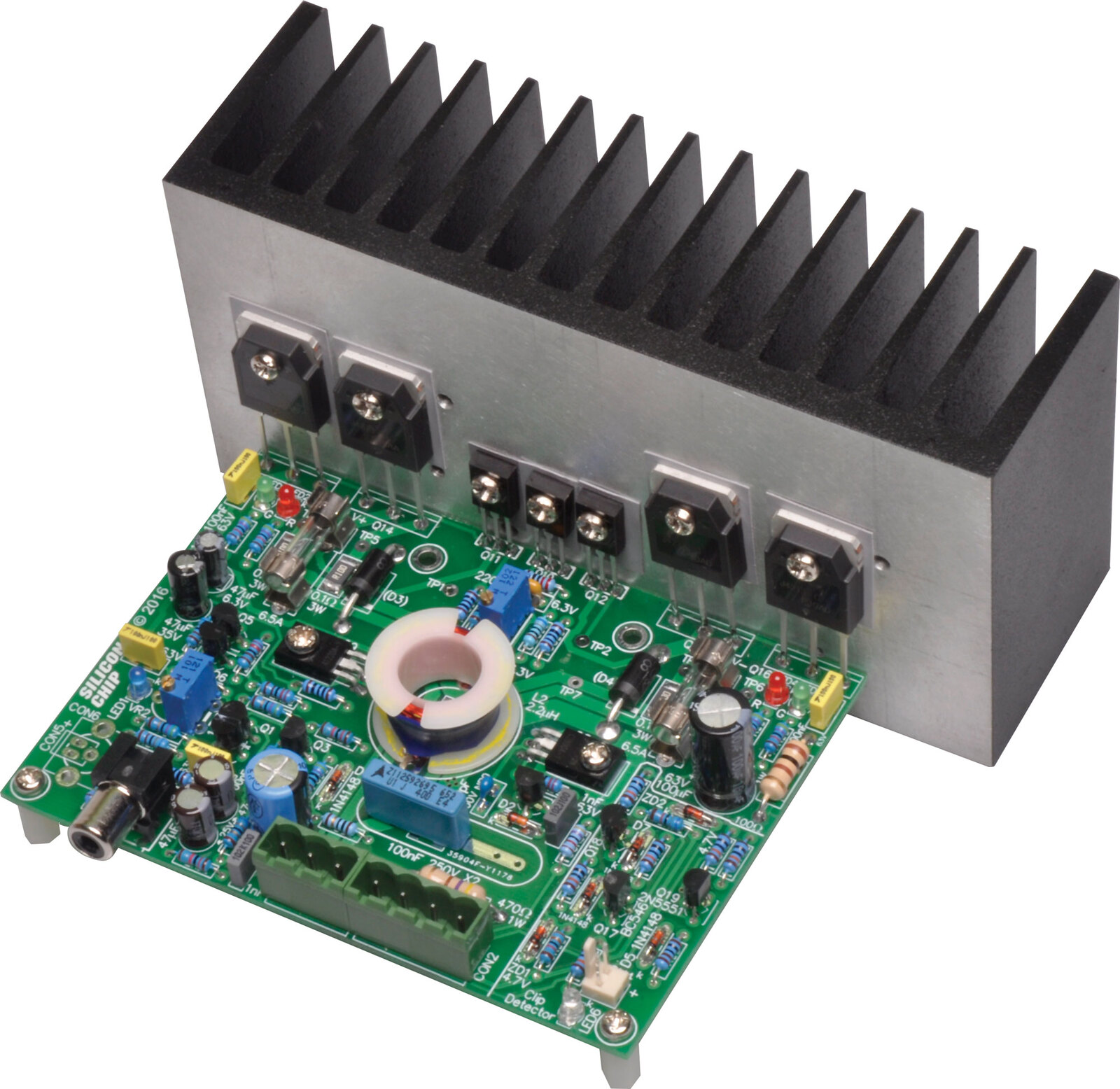

NOTE: Heatsink for illustration purposes,
Important Note For Kit Buyers:
This product is supplied in component form and requires soldering, drilling, and assembly. We recommend users are familiar with at least basic electronic principles and have the ability to solder.

Features

  • Low distortion and noise
  • Easy to build
  • Compact PCB
  • Clipping Indicator LED
  • Onboard DC Fuses
  • Specified Power Output
  • Power Indicator LED’s
  • Overload Recovery
  • Square Wave Response
  • Survives Short Circuits
  • Quiescent Current Adjustment
  • Output Offset Voltage Adjustmen
  • Output power (230VAC mains): 200W RMS into 4?, 135W RMS into 8?
  • Frequency response (10Hz-20kHz): +0,-0.05dB (8?); +0,-0.12dB (4?)
  • Input sensitivity: 1.26V RMS for 135W into 8?; 1.08V RMS for 200W into 4?
  • Input impedance: 11.85k? shunted with 1nF
  • Rated Harmonic Distortion (4?, 8?): <0.01%, 20Hz-20kHz, 20Hz-30kHz bandwidth
  • Signal-to-Noise Ratio: -116dB unweighted with respect to 135W into 8?(20Hz-20kHz)
  • Damping factor: ~250
  • Stability: unconditionally stable with any nominal speaker load ?4?
  • Music power: 170W (8?), 270W (4?)
  • Dynamic headroom: 1dB (8?), 1.3dB (4?)
  • Power supply: ±57V DC from a 40-0-40 transformer
  • Quiescent current: 88mA nominal
  • Quiescent power: 10W nominal
  • Output offset: typically <10mV untrimmed; <1mV trimmed

(K5157)

12months

SKU K5157
Model # K5157
Barcode # 9321758222492
Brand SILICONCHIP
Unit Of Measure 1
