40W MINI AMPLIFIER - ACCENTO DYNAMICA

40W Class D Amplifier

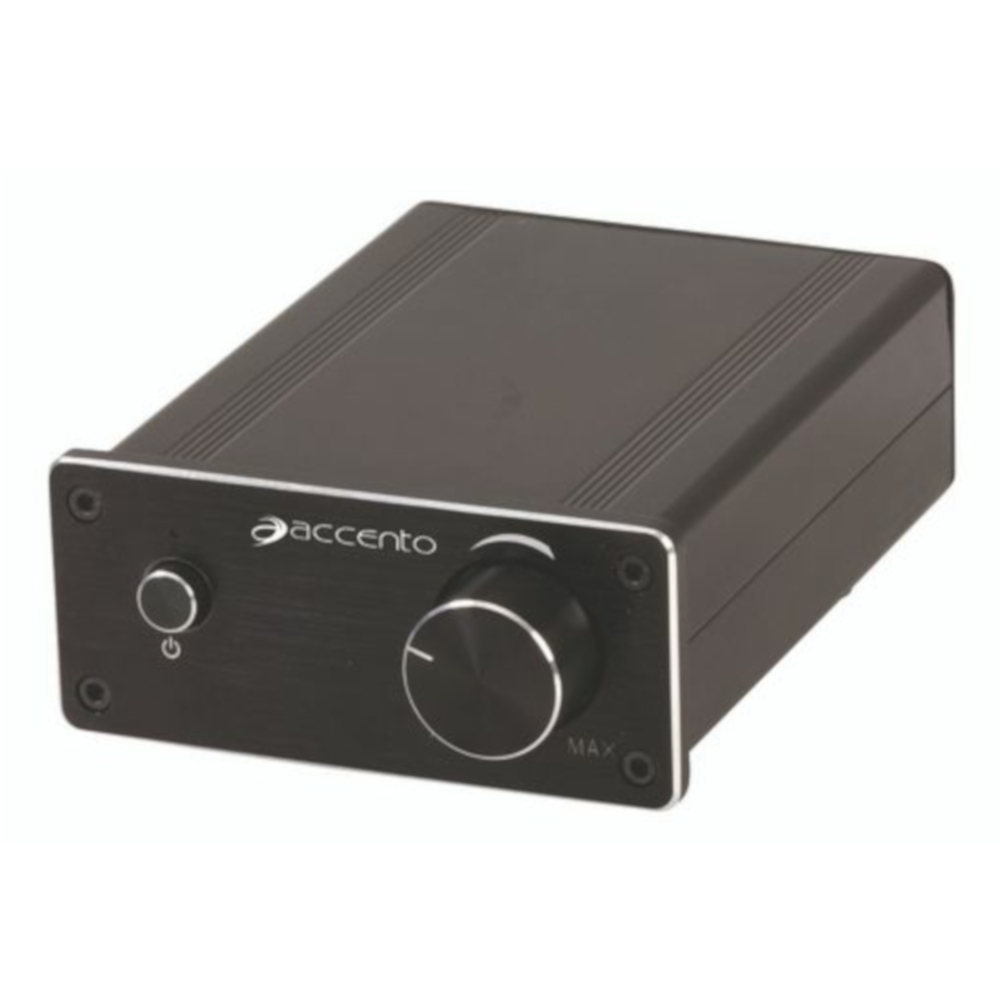

COMPACT 2x20W STEREO AMPLIFIER CLASS-D

The compact size of the Accento Dynamica ADA40 makes it an ideal choice for small areas with limited space or for those looking for a cleaner audio environment. This amp is remarkably compact, yet still delivers crisp, vibrant sound comparable to much larger amplifiers. Centred on the TDA7492PE, this Class-D amplifier is highly efficient while delivering deep bass and an expanded sound stage to the listener., Includes 240Vac Power Pack.

Specifications

• Class D amp combines fidelity with efficiency
• High power in a convenient compact package
• Simple operation with an on/off switch & volume
• Quality metal case black anodised extruded aluminium with thick brushed front facia panel
• Non-scratch rubber feet for desktop use

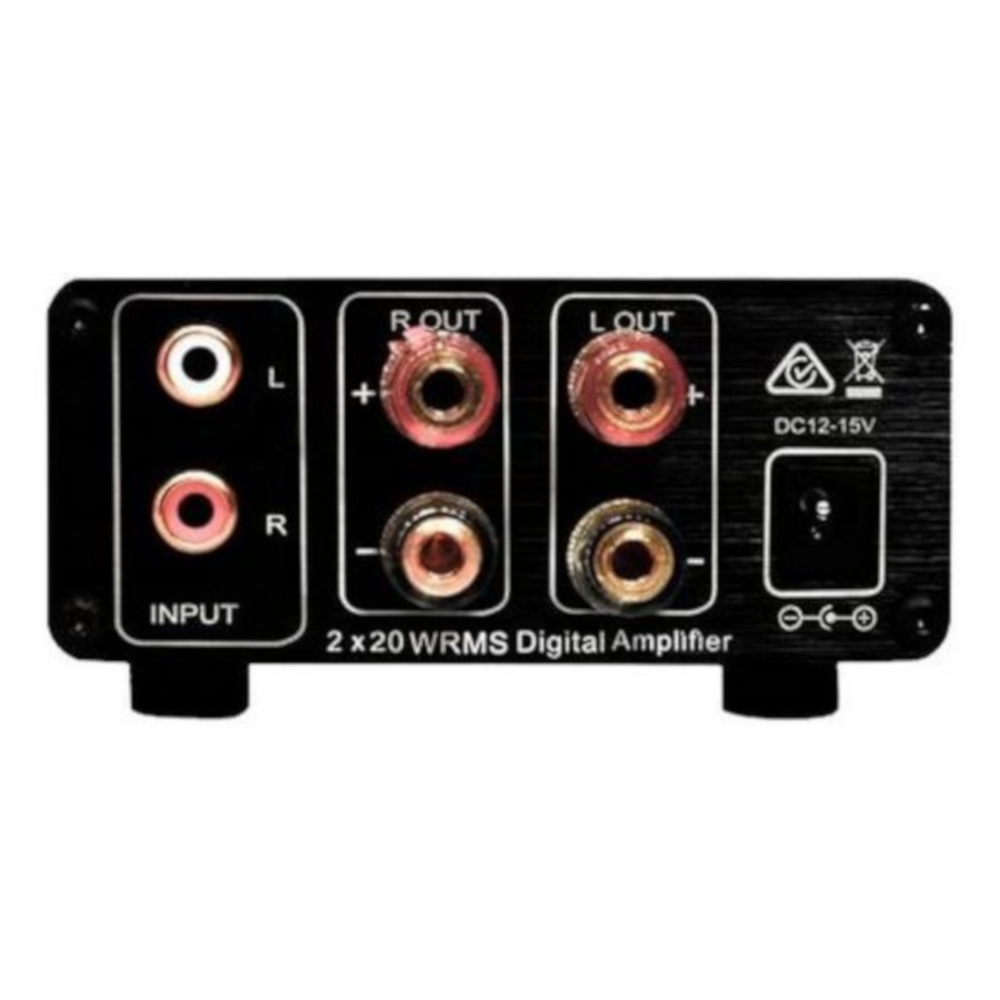

• RCA Stereo line level gold-plated input
• Bare-wire or 4mm speaker connection terminals
• Includes 15Vdc 2A power supply included
• TDA Series BTL Class-D chipset from ST
• Small size lets you use this amp almost anywhere
• Power output: 2 x 20 watts
• DC15V 4Ω 21W THD=10%
• DC12V 4Ω 16W THD=10%
• Impedance: 4Ω to 8Ω
• SNR: 98db
• Distortion: 0.03%
• Frequency response: 20-22,000 Hz
• Dynamic Range: 103dB
• Signal Input: RCA gold-plated lotus signal input
• Signal output: 4-wire signal output. Bare-wire or 4mm
• Power Supply: DC12-15V 30Wnom, 40Wmax
• DC Plug: O/D 5.5mm, Centre Pin 2.1mm (Positive)

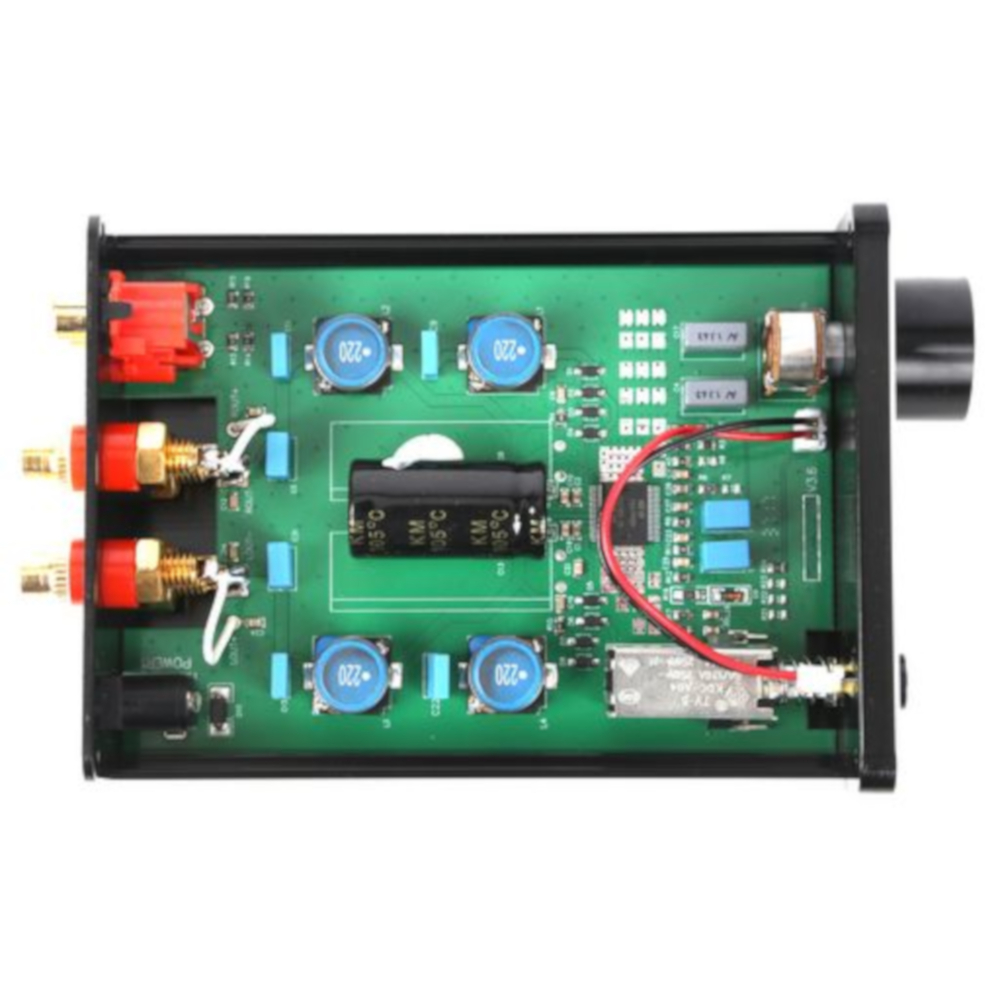

• Circuit plate: 1.6mm thick fibreglass Immersion Gold
• Dimensions Case: 90mm(w) x 40mm(h) x 120mm(d)
• Dimensions Plus: 150x92x47mm including protruding parts
• Case Material: Extruded Aluminium body Anodized front panel.

ADA40 is discontinued: Suggested Replacement is: ADA41BT (Wireless version) Includes power supply: SMP15V2A-21R ADA41 (Power supply separate: SMP25002425P + ACL104-18)
