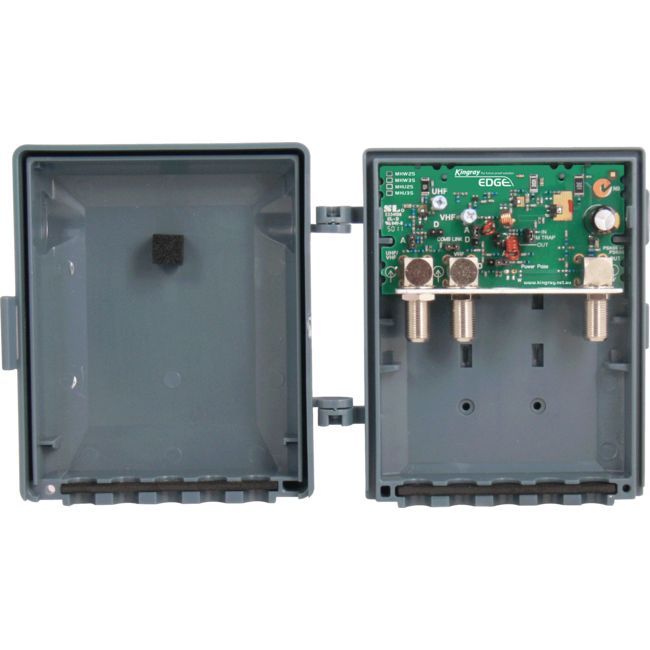

VHF/UHF Masthead Amplifier with 25dB Gain, Separate or Combined Input & 4G/LTE filtering
- The MHW25F is a VHF/UHF masthead amplifier with the capability of amplify signals either from combined or separate VHF and UHF antennas.
- The Kingray Masthead range includes both wideband and VHF or UHF only models & with UHF frequencies above 694 MHz filtered, 4G/LTE transmissions are filtered out.
- In addition to the 4G/LTE filtering, most wideband models include low band filtering to eliminate all services below 174 MHz.
- This amplifier also has the ability to allow FM radio signals to be passed through.
- The masthead is powered remotely via a Kingray PSK06 or PSK08 series power supply (sold separately).
Features
- Frequency Range 174-230 MHz & 520-694 MHz
- 25dB UHF Maximum Gain
- 15dB VHF Maximum Gain
- 10dB Gain Control for UHF
- 7-4dB Tilt Control for VHF
- Separate VHF & UHF Inputs or Combined Input
- FM Radio 88-108 MHz Pass Through Selectable
- 4G/LTE Filtering
- Weatherproof Housing
- High Output Figure of 108dB IMR3 (DIN45004B)
- Connectors: F-Type
- Power Consumption: 60mA
- Suitable Power Supply: PSK06 Series or PSK08 Series
(MHW25F)
- The NEW Kingray Edge series of masthead amplifiers hasbeen engineered to provide a future proof solution with switchable LTE/4G filtering to maximise interference rejection.
- The Edge series features links allowing the amplifier to be configured to best suit the installation now and in the future.
- The range includes both wideband and UHF only models used to amplify the whole UHF band or alternatively by re-positioning the links, all services above 694 MHz are filtered, blocking future LTE transmissions.
- In addition to LTE filtering some wideband models in the Edge series include user selectable low band filtering to eliminate all services below 174 MHz.
- The Edge series is designed to meet the needs of the television reception industry now and into the future.
Model |
Inputs |
Termination |
Shielded |
Band |
Max. |
Gain |
Pager |
FM |
Band 1 |
LTE |
MHW25GE |
1 |
S&S |
|
VHF/UHF |
25 |
1 |
|
• |
|
• |
MHW25F |
2 |
F |
|
VHF/UHF |
25 |
2 |
• |
• |
• |
• |
MHW25FS |
2 |
F |
• |
VHF/UHF |
25 |
2 |
• |
• |
• |
• |
MHW25FE |
1 |
F |
|
VHF/UHF |
25 |
1 |
• |
• |
|
• |
MHW25FSE |
1 |
F |
• |
VHF/UHF |
25 |
1 |
• |
• |
|
• |
MHW35G |
2 |
S&S |
|
VHF/UHF |
35 |
2 |
• |
• |
• |
• |
MHW35F |
2 |
F |
|
VHF/UHF |
35 |
2 |
• |
• |
• |
• |
MHW35FS |
2 |
F |
• |
VHF/UHF |
35 |
2 |
• |
• |
• |
• |
MHW43FS |
2 |
F |
• |
VHF/UHF |
43 |
2 |
• |
• |
• |
• |
MHU25GE |
2 |
S&S |
|
UHF |
25 |
1 |
|
|
|
• |
MHU25F |
2 |
F |
|
UHF |
25 |
1 |
|
|
|
• |
MHU25FS |
2 |
F |
• |
UHF |
25 |
1 |
|
|
|
• |
MHU35G |
2 |
S&S |
|
UHF |
35 |
1 |
|
|
|
• |
MHU35F |
2 |
F |
|
UHF |
35 |
1 |
|
|
|
• |
MHU35FS |
2 |
F |
• |
UHF |
35 |
1 |
|
|
|
• |
MHU43FS |
2 |
F |
• |
UHF |
43 |
1 |
|
|
|
• |
SKU | MHW25F |
Model # | MHW25F |
Barcode # | 9319493244350 |
Brand | Kingray |
Unit Of Measure | each |
Assembled Width | 0.218m |
