High-Performance 3-in-1 Ultra-Wideband Antenna with Cellular, WiFi 6E, and WiFi 7 Technology

The 2J 3-in-1 Combination Ultra-Wideband Antenna (2J6985Ba) integrates cutting-edge Cellular LTE MIMO and WiFi 6E/WiFi 7 technologies, making it ideal for industrial, commercial, and residential applications. Covering 617 MHz – 7125 MHz, this antenna ensures high performance, reliability, and precision for demanding applications with high data throughput.

Key Features

  • 3-in-1 Combination Antenna: Supports Cellular LTE MIMO and WiFi 6E/WiFi 7.
  • Ultra-Wideband: Covers the 617-5925 MHz Sub-6GHz bands.
  • WiFi 6E / WiFi 7 Antenna: Offers advanced WiFi performance.
  • Ground Plane Independent: Flexible installation options.
  • Full 4G LTE Backward Compatibility: Ensures compatibility with legacy networks.
  • 3.2 dBi 5G NR Peak Gain: Optimal 5G performance.
  • 1.7 dBi WiFi Peak Gain: Excellent WiFi performance.
  • Low Profile Design: Compact and unobtrusive.
  • Anti-Rotation Mounting: Secure and stable installation.
  • Dual MIMO Cellular/LTE Cables: High data throughput for 5G NR, 4G LTE, and other LTE networks.

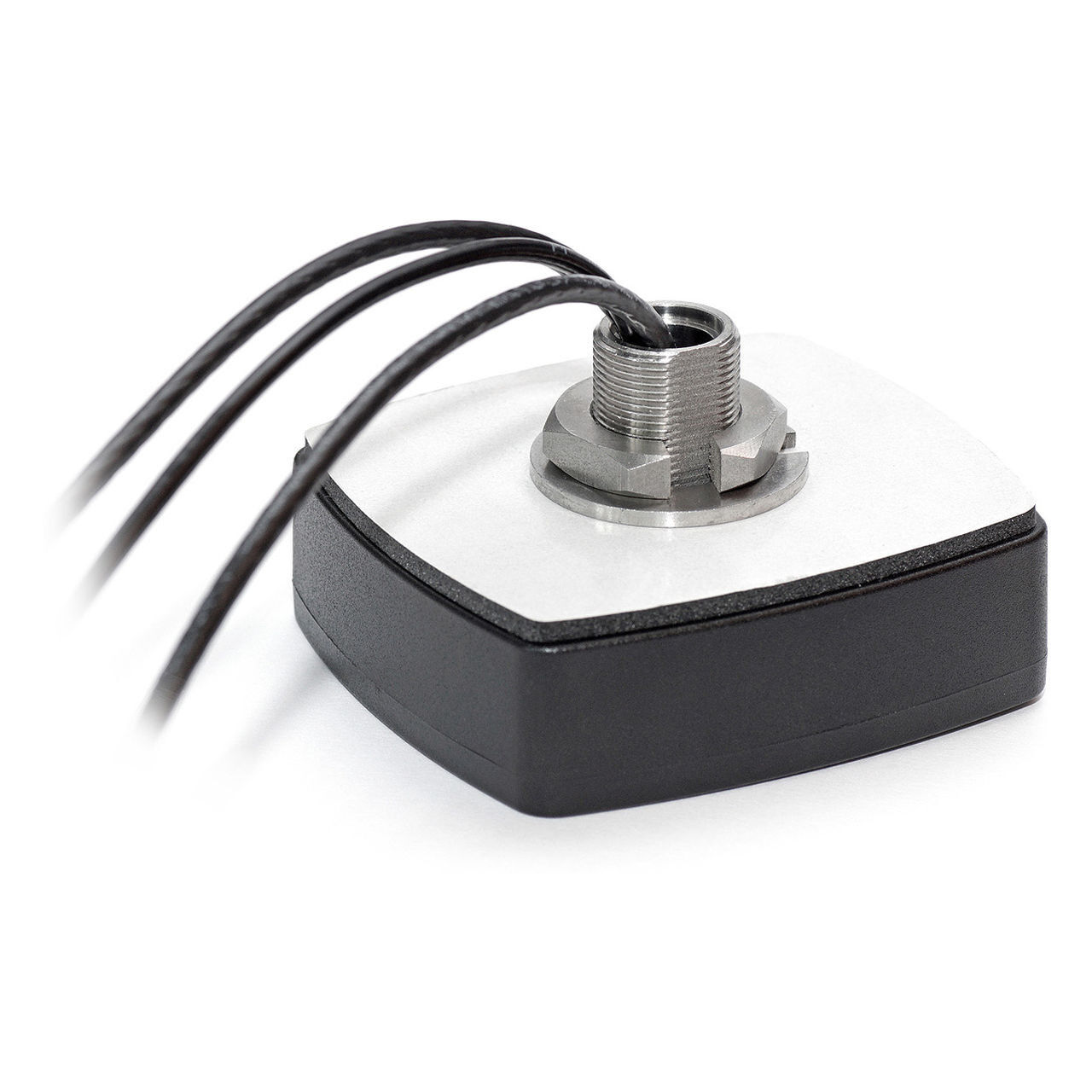

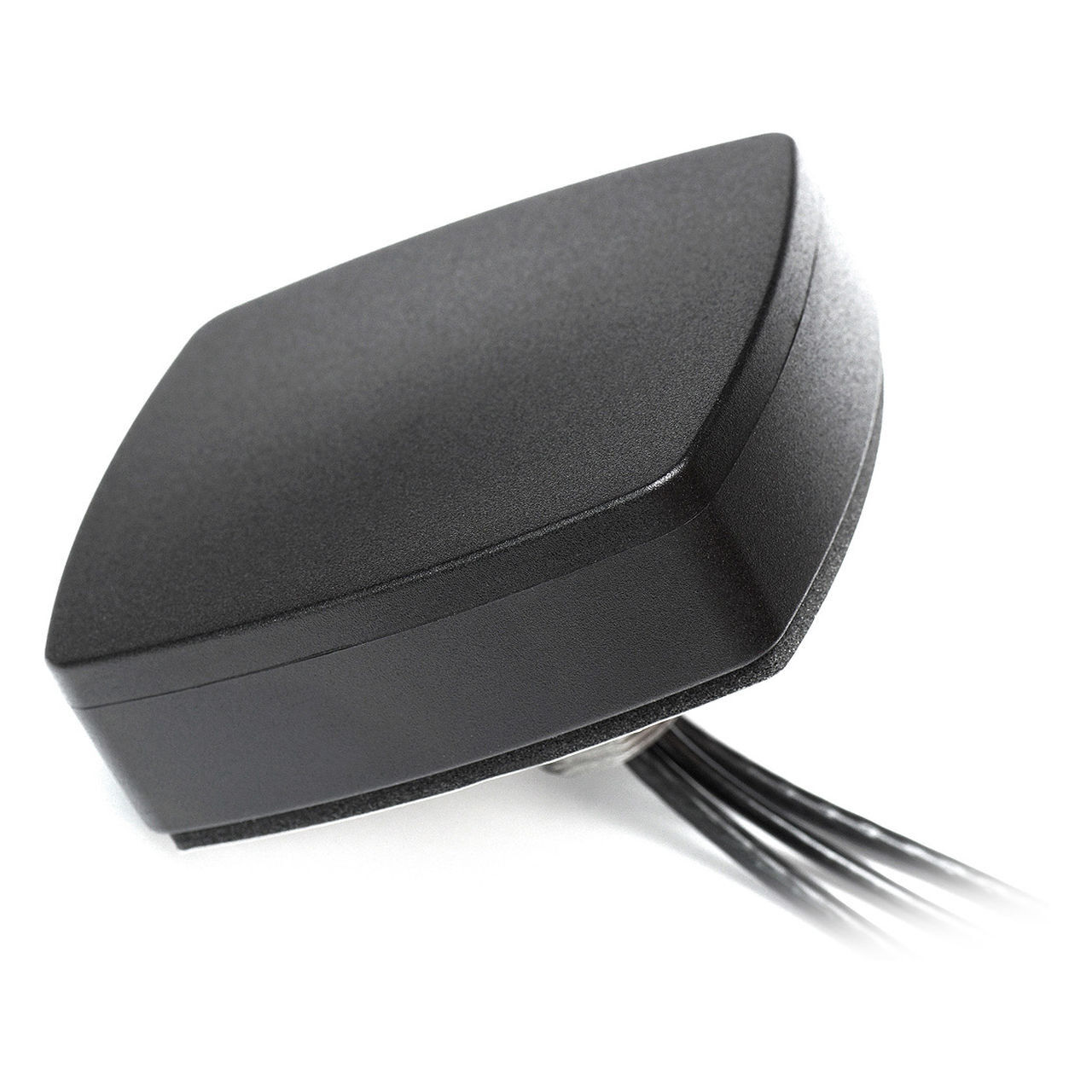

This product features a low-profile design (80 x 74 x 25.6 mm), is IP67/IP69 certified, and is ideal for outdoor permanent installations. Its durable PC/ASA housing (available in black and white) provides protection against harsh environments. The antenna is ground plane independent and features an anti-rotation screw mount for secure installation on a wide range of surfaces. It comes with standard SMA-Male (RP) connectors and 300 cm long D302 cable.

2J6985Ba Antenna Specifications

Antenna and Electrical Specifications

Parameter Details
Technologies 5G, 4G, 3G and 2G
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency (MHz) 617-960, 1427-2690, 3300-5000, 5150-5925
Return Loss (dB) -15.5 to -18.5
VSWR 1.4:1 to 2.0:1
Efficiency (%) 22.0% to 35.3%
Peak Gain (dBi) 0.4 to 3.2
Average Gain (dB) -6.5 to -0.2
Impedance (Ohm) 50
Polarisation Linear
Radiation Pattern Omni-Directional
Max. Input Power (W) 25
Connector Type SMA-Male Standard (Other Connectors Available)
Cable Length 300 cm Standard (Any Cable Length Available)
Cable Type D302 Standard (Other Cables Available)

Mechanical and Environmental Specifications

Parameter Details
Mounting Type Screw Mount
Dimensions (mm) 80 × 74 × 25.6
Max. Tighten Torque (Nm) 5 Nm
Radome Type PC+ASA
Radome Color Black, White
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Substance Compliance RoHS
Certificates IP67, IP69



General Information
Manufacturer: 2J
Manufacturer Part Number: 2J6985BA
Barcode: 90008464
Packaging Details
Weight: 0.10 KGS
Width: 7.00 (cm)
Height: 8.00 (cm)
Depth: 2.00 (cm)





(ANT-2J-00019)

SKU ANT-2J-00019
Model # 2J6985BA
Barcode # 90008464
Brand 2J
