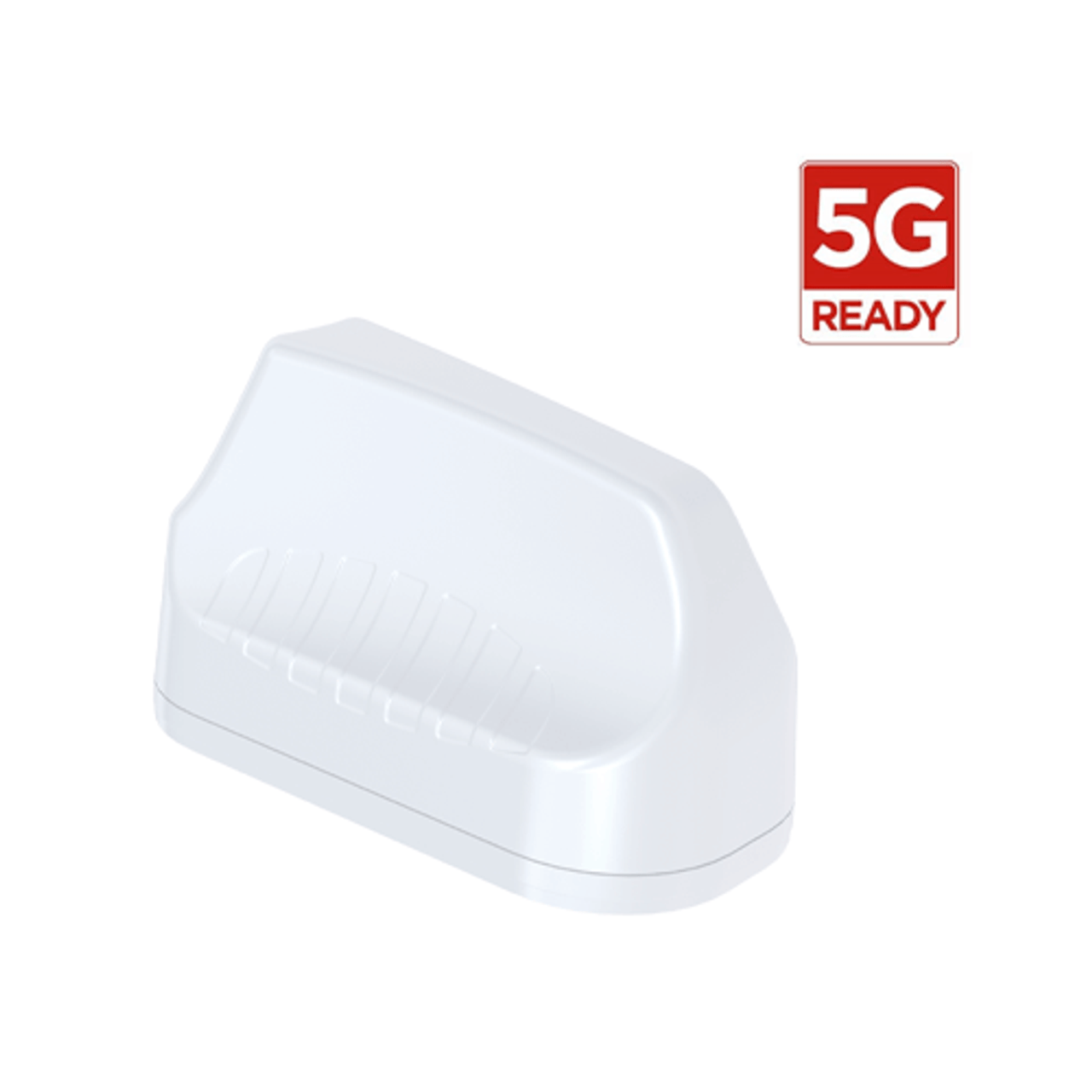

MIMO-3-12, a 2-in-1 Transportation & Automotive Antenna offering 410 - 3800 MHz frequency range with 2X2 LTE (MIMO) technology. Boasting a 5.8dBi gain and IP69K robustness, it's perfect for commercial, industrial, and marine use, ensuring reliable connectivity across multiple networks and futureproofed for 5G applications. Its excellent balance between omni-directionality, pattern diversity, and effective radiation capabilities make this antenna crucial for the transportation and marine markets.

Features:

  • Multi-Frequency Support: Supports a wide range of frequencies from 410 MHz to 3800 MHz, encompassing 2G, 3G, 4G, LTE, and 5G bands.
  • 2X2 MIMO LTE: Enhanced data throughput and signal quality via 2X2 MIMO technology.
  • Ultra-Wideband Coverage: Includes 450 MHz and 3.5 GHz CBRS bands, making it versatile for different cellular networks.
  • Robust Design: IP69K water-resistant rating, ensuring durability in harsh environmental conditions.
  • Versatile Applications: Ideal for transportation, marine use, commercial/industrial vehicles, and M2M/IoT systems.
  • Easy Installation: Offers multiple mounting options including magnetic, spigot, and surface/desk mount for flexible installation.
Specification Description
Industry (Application) Commercial & Industrial Antennas, Transportation & Mobility Antennas
Technology Cellular (LTE/2G/3G/4G/CBRS/5G), CDMA450/LTE-M 450
Frequency Band 410-450MHz, 433MHz, 450-470MHz, 617-698MHz, 698-803MHz, 791-894MHz, 868-915MHz, 880-960MHz, 1427-1517MHz, 1700-1900MHz, 1900-2200MHz, 2300-2400MHz, 2400-2500MHz, 2500-2700MHz, 3400-3800MHz
Frequency Range 410 – 3800 MHz
Gain 5.8dBi (LTE)
5G Bands n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n31, n34, n38, n39, n40, n41, n48, n51, n53, n65, n66, n67, n71, n72, n74, n75, n76, n78, n80, n81, n82, n83, n84, n85, n86, n89, n90, n95, n97, n98, n100, n101, n106, n256
Directionality Omni-Directional
LTE/4G Bands B1, B2, B3, B4, B5, B7, B8, B9, B10, B12, B13, B14, B17, B18, B19, B20, B25, B26, B27, B28, B29, B30, B31, B33, B34, B35, B36, B37, B38, B39, B40, B41, B44, B53, B65, B66, B67, B68, B69, B71, B72, B73, B74, B85, B87, B88, B103, B106
Mounting Type Magnetic Mount, Spigot Mount, Surface/Desk Mount
Wi-Fi Standard Wi-Fi 3 (802.11g)
Connectors SMA
MIMO 2×2
Polarisation Linear Polarised
Environmental IP69K
Enclosure Name Badger
Enclosure Size Medium
LTE Ports 2



General Information
Manufacturer: Poynting
Manufacturer Part Number: A-MIMO-0003-V2-12
Barcode: 707273470300
Packaging Details
Weight: 1.21 KGS
Width: 22.00 (cm)
Height: 21.00 (cm)
Depth: 27.00 (cm)



(ANT-PY-00010)

SKU ANT-PY-00010
Model # A-MIMO-0003-V2-12
Barcode # 707273470300
Brand Poynting
