3.6V LITHIUM-THIONYL CHLORIDE

TYRE PRESSURE MONITORING SYSTEM BATTERY

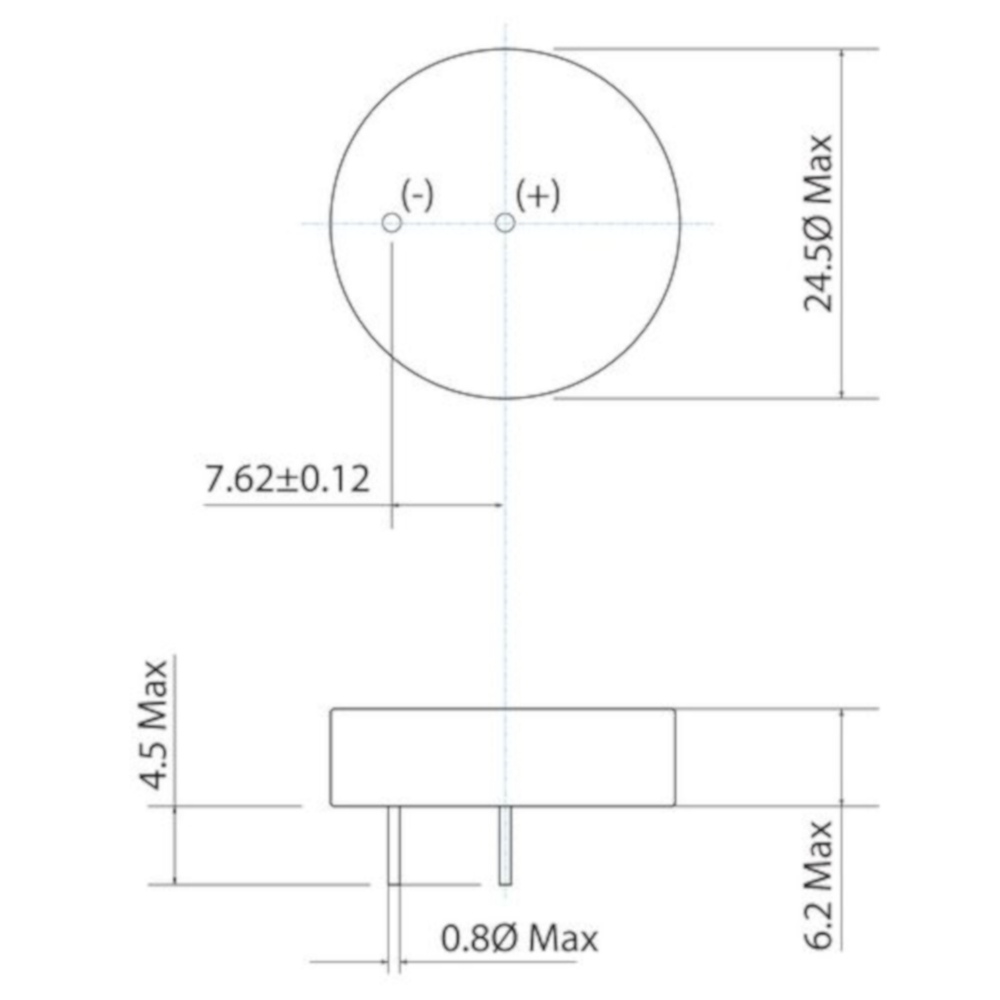

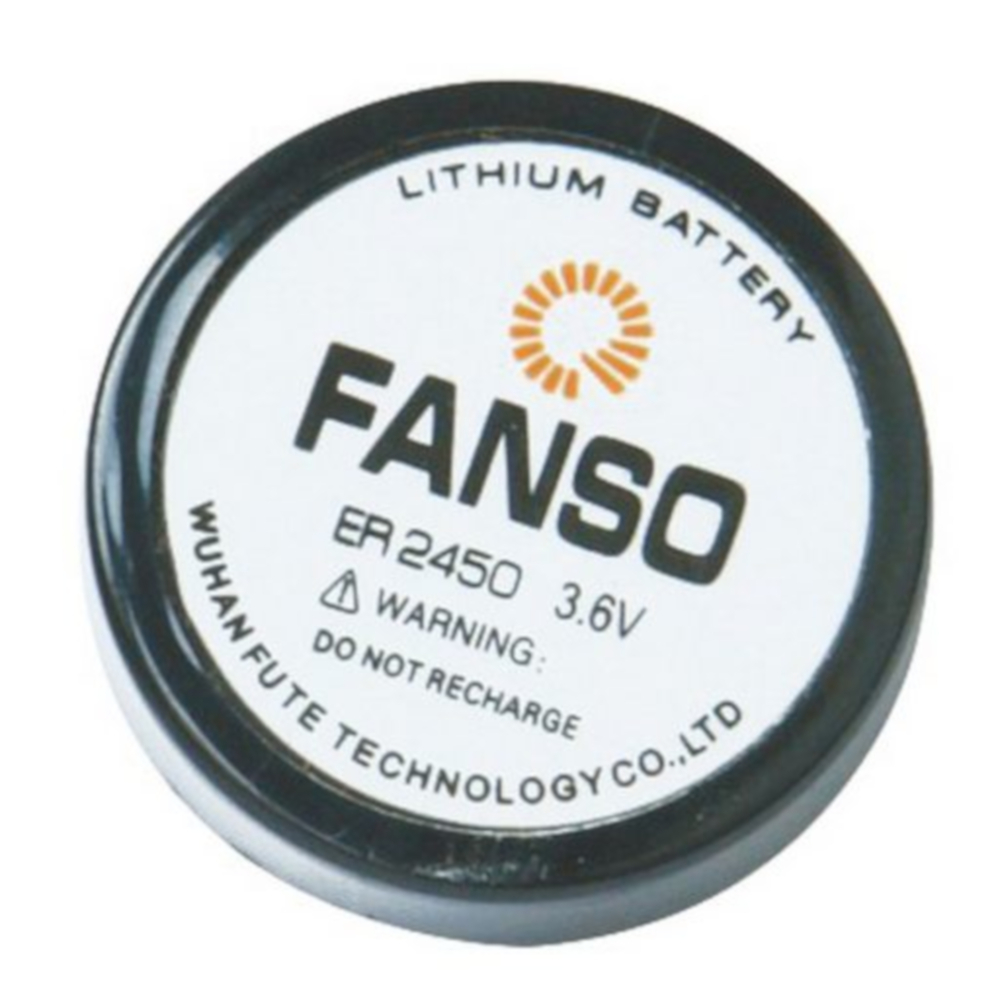

ER2450 Lithium thionyl chloride wafer cell with PCB flat S+ S-. 3.6V 500mAh. Long life. Non-rechargeable.

Li-SOCL2 battery ER2450 for TPMS
The tire-pressure monitoring system (TPMS) is very important to ensure vehicle safety, while its life depends on the quality of batteries inside sensors. Currently, most battery manufacturers declare 3 years of working life, However, Fanso TPMS battery can operate much longer and avoid the trouble of battery replacement.
The tire-pressure monitoring system (TPMS) is an electric system designed to monitor the air pressure inside the pneumatic tire on various types of vehicles. TPMS could report real-time tire-pressure information to the driver and improve vehicle safety.

• Long shelf life: self discharge rate less than 1% at 25°C.
• High energy density (700Wh/kg).
• Long operating life.
• Stainless steel container and end caps.
• Wide temperature range: -55ºC ~ +125ºC.
• Hermetic glass-to-metal sealing.
• Non-flammable electrolyte.
• Compliant with IEC86-4 safety standard.
• UL Component Recognition MH46165.
• High and stable operating voltage.
