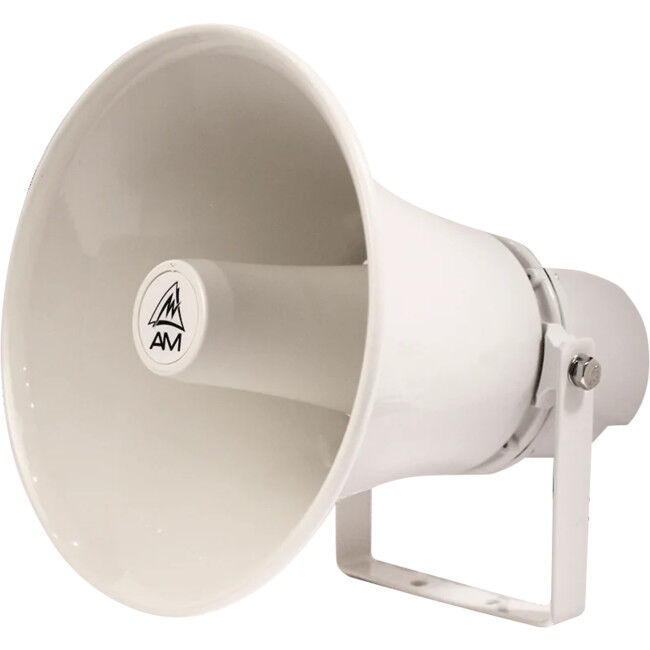

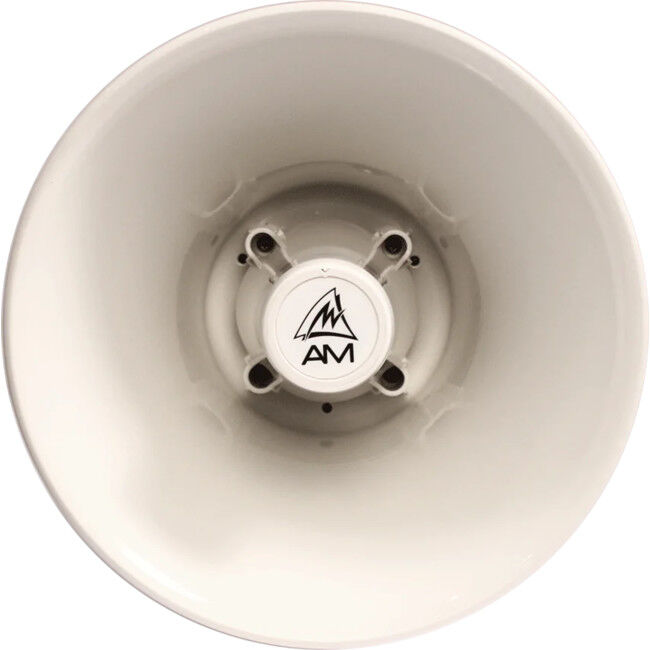

Australian Monitor SH30 - 30W IP66 Rated Horn

The Australian Monitor SH30 horn is both constant voltage and low impedance, designed for paging and background music systems requiring vocal clarity and sound projection.

Features

  • 30 watts power rating RMS
  • Power taps 30, 15, 7.5, 3.8W and 8 ohm
  • Frequency response 350Hz-9.5kHz
  • 111 dB sensitivity (1W/1M)
  • Aluminium flare and ABS housing
  • Includes capacitor for EVAC purposes
  • 2.0kg



Specifications

Form Factor Horn Max Continuous Power 30W

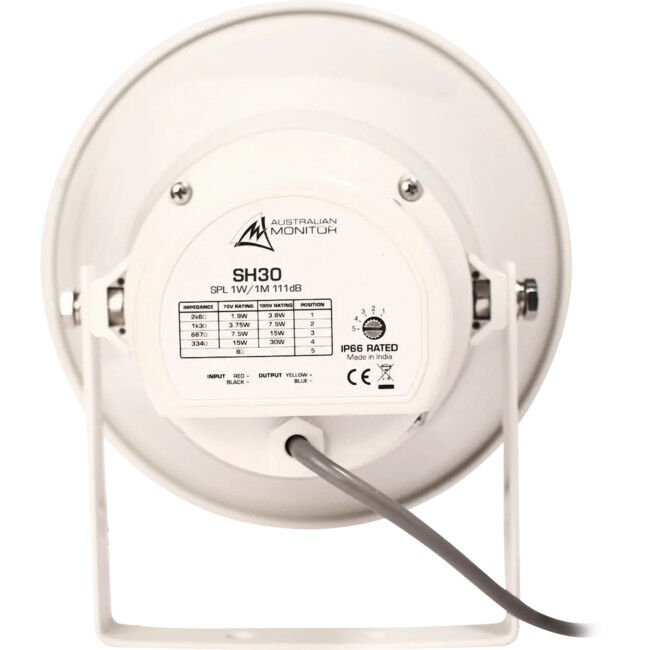

Tappings 30W-15W-7.5W-3.75W-8 Ohm Max Program Power 60W
IP Rating IP66 Max Peak Power 120W
EASE Model No SPL 1W/1m 111dB
Powered Passive Max SPL RMS 126dB
Driver Diameter 40mm Max SPL Peak 132dB
Colour White Frequency Response (-3dB) 350Hz - 9.5kHz
Warranty 5 years Dispersion N/A
Product Dimensions
(W x D x H)
249mm x 280mm Shipping Dimensions
(W x D x H)
275mm x 275mm x 290mm
Net Weight 2.0 Kg Shipping Weight 2.5 Kg
GTIN EAN 9323383020719





(SH30)

SKU SH30
Model # SH30
Barcode # 9323383020719
