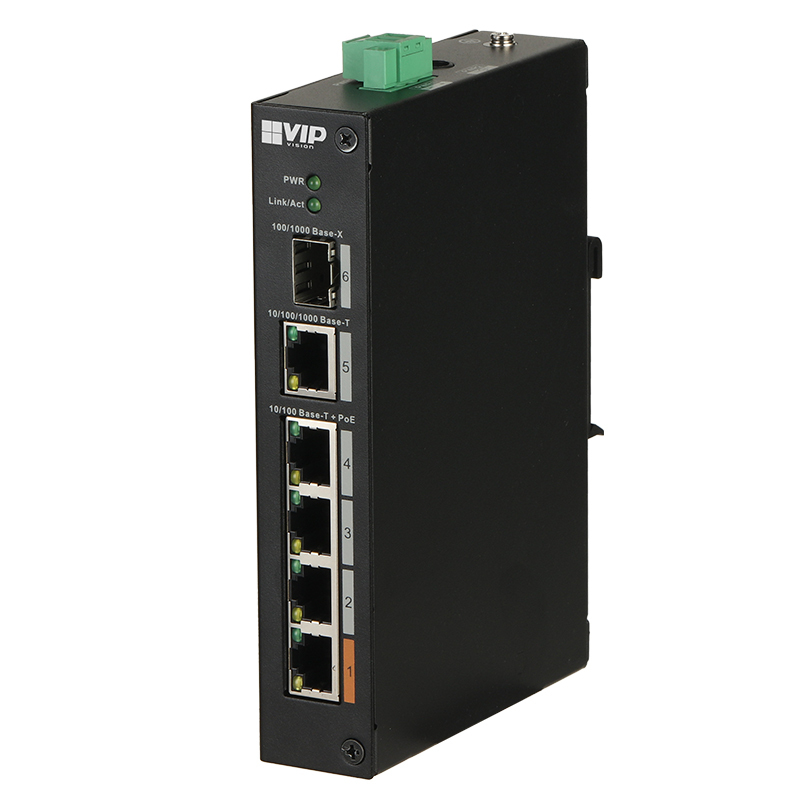

4-port Unmanaged Fast Hi-PoE Ethernet Switch

The VSPOE-SW4H is a DIN rail mountable, fast PoE switch in 4 ports. It is ideal for building secondary networks - providing data and power to devices on the edge of a network, such as CCTV cameras, wireless access points, IP telephones, network access control systems and more.

Features

• 3 x PoE+ device ports with 100Mbps per port
• 1 x Hi-PoE device port with 100Mbps per port
• 1 x 1000Mbps Gigabit RJ45 & SFP fibre uplink ports
• Total PoE power load up to 60W
• Unmanaged switch for plug and play applications
• DIN rail mountable for neat rackmount installations
• Professional appearance full metal enclosure

Specifications

• Ports: 4 ports
• Speed: Fast 10/100
• Device Ports:  4 x 10/100 Base-T (PoE power supply ports)
• Uplink Ports: 1 x 100/1000 Base-X / 1 x 10/100/1000 Base-T
• Switching Capacity: 6.8Gbps
• Packet Forwarding Rate: 3.57Mpps
• Exchange Mode: Store & forward
• PoE: Yes
• PoE Protocol: PoE (IEEE802.3af) / PoE+ (IEEE802.3at) / Hi-PoE
• Switch Power Load: Ports 1: ≤60W / Port 2-4: ≤30W (Total: ≤60W)
• Input Power: 48 ~ 57VDC
• Lightning Protection: Common Mode: 6kV / Differential Mode: 4kV
• Mounting Options: DIN rail
• Operating Environment: -30°C~65°C / RH5%~95%
• Weight: 0.44kg
• Dimensions: 150 x 108 x 30mm
