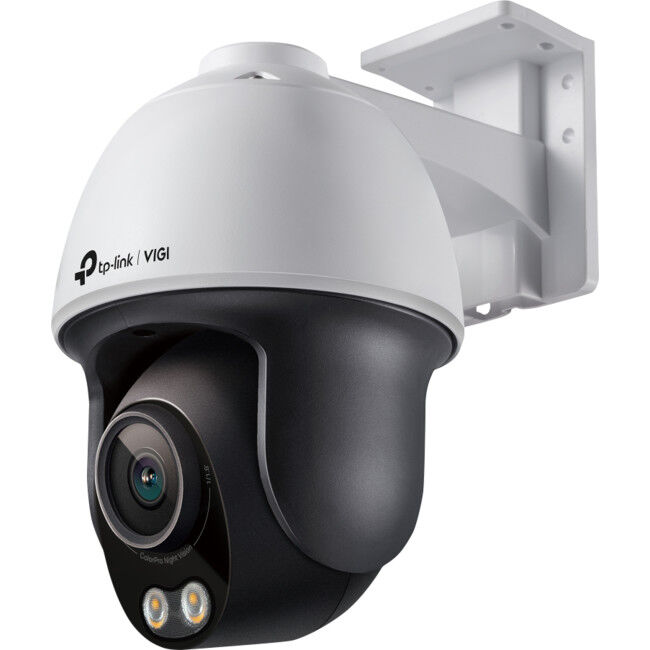

4MP OUTDOOR PAN TILT NETWORK CAMERA

Overview

VIGI 4MP Outdoor ColourPro Night Vision Pan Tilt Network Camera

Ultra-Low Light Colour Night Vision: Capture 24-hour 4MP high-quality and colourful video even in ultra low-light conditions without any supplemental lights.
360° Monitoring: Cover every corner and eliminate blind spots.
People & Vehicle Analytics: Quickly find people and vehicles of interest using a series of attributes, allowing you to improve search efficiency.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Actively detects abnormal events like area intrusion and line-crossing, sending notifications to you instantly.
True WDR Technology: Enable crystal-clear images in high contrast scenes.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.

Specifications

CAMERA	Image Sensor	1/1.79″ Progressive Scan CMOS
	Shutter Speed	1/3 to 1/10000s
	Slow Shutter	Yes
	Minimum Illumination	0.0005 Lux; 0 Lux with White Light
	Day/Night Mechanism	N/A
	Day/Night Switch	Unified/Scheduled/Auto
LENS	Type	Fixed Focal Lens
	Focal Length	4mm
	Aperture	F1.0 ±5%
	FOV	4mm: Horizontal FOV: 104° Vertical FOV: 55° Diagonal FOV: 127°
	Lens Mount	M16*P 0.5
	DORI Distance	4 mm: Detect: 63m (207ft) Observe: 26m (86ft) Recognise: 13m (41ft) Identify: 6m (21ft)
PTZ	Pan/Tilt Range	Pan: 0° to 348° Tilt: 0° to 105°
	Pan/Tilt Speed	Pan Speed: Configurable from 8° to 44°/s Preset Speed: 44°/s Tilt Speed: Configurable from 8° to 44°/s Preset Speed: 44°/s
	Manual Control Speed	Configurable from 8° to 35°/s
	Presets	300
	Patrol Scan	8 patrols, up to 8 presets for each patrol
	Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
	Park Action	Yes; Preset: Patrol Scan
	3D Positioning	Yes
	Angle Adjustment (Manual)	Range: Pan: 0° to 348° Tilt: 0° to 105°
ILLUMINATOR	IR LED	N/A
	White LED	Quantity: 2 Range: 30m
	Illuminator On/Off Control	Auto / Scheduled / Always On / Always Off
GENERAL	Operating Temperature	−30°C – 60°C
	Storage Temperature	−40°C – 60°C
	Operating Humidity	95% or Less (Non-Condensing)
	Storage Humidity	95% or Less (Non-Condensing)
	Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
	Material	Plastic
	Power Supply	12V DC ± 5%, Max. 13.13 W, 5.5mm Coaxial Power Plug PoE: 802.3at, Class 4, Max. 16.47W
	Protection	IP66
	Product Dimensions (L×W×H)	120mm × 172mm × 203mm
	Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
VIDEO	Max. Resolution	2688 × 1520
	Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720
	Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 704×576, 640×480, 352×288, 320×240
	Bit Rate Control	CBR, VBR
	Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
	H.264 Type	Main Profile / High Profile
	H.264+	Main Stream Supported
	H.265 Type	Main Profile
	H.265+	Main Stream Supported
	Video Bit Rate	Main Stream: 256 Kbps to 6 Mbps Sub-Stream: 64 Kbps to 512 Kbps
Image	Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
	Image Enhancement	BLC/3D DNR/HLC
	Wide Dynamic Range	120dB (Note: When Face Recognition s is enabled, only DWDR is supported)
	SNR	52dB
	Image Parameters Switch	Yes
	Privacy Mask	Up to 4 Masks
	ROI	1 Region
	OSD Setting	Yes
AUDIO	Audio Communication	Two-Way Audio
	Audio Input	Yes
	Audio Output	Yes
	Audio Compression	Yes
	Audio Sampling Rate	8KHz
	Environment Noise Filtering	Yes
	Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK	Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
	ONVIF	Yes
	API	ONVIF
	Simultaneous Live View	3 Main Streams & 3 Sub-Streams
	Client	VIGI App, VIGI Security Manager, Web UI
	Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
	Cloud	Yes
	Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT	Smart Event	Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Abandoned Object Detection, Object Removal Detection, Loitering Detection, Scene Change Detection, Smart Frame
	Basic Event	Motion Detection, Video Tampering Detection, Exception (Illegal Login)
	Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
	Linkage Method	N/A
	Output Notification	Message Push
DEEP LEARNING FUNCTION	People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
DEEP LEARNING FUNCTION	Multi-Target-Type Detection	Supports Simultaneous Detection and Capture of Human Body and Vehicle
INTERFACES	Network Interface	1 × RJ45 10/100M Self-Adaptive Ethernet Port, PoE
	Alarm	N/A
	Reset Button	Yes
	Power	DC Power Port
	On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
	Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
	Built-in Speaker	Yes
	Audio	N/A
