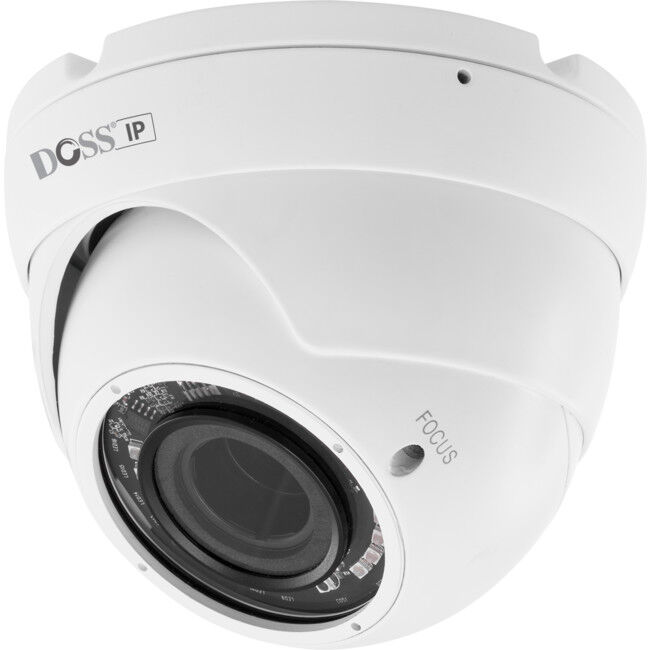

DOME 30M IR WHITE IP CAMERA

Features

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet makes it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, for centralised video capture and back-up.

Features

STRONG METAL CASE
1/2.8" Sony WDR CMOS Sensor
Hi3516C DSP+IMX323
h.264/ MJPEG encoding
Resolution: 1920x1080
1080P (Full HD) recording and viewing
Conforms to ONVIF (Open Network Video Interface Forum) protocols Profile S
2.8-12mm Lens provides a view of 92?to 28?/li>
20-30m IR distance, 36x ?mm Leds
1/2.8" Sony WDR CMOS Sensor
IP65 weatherproof case
DC12V with PoE
NSR=50db

Specifications

CAMERA
Sensor	1/2.8" SONY 2.43 Mega-pixel low inllumination CMOS
Min. illumination	0 Lux/ F1.4 (IR ON)
Electronic shutter	Auto / Manual (1/25 ~ 1/10000)
Day / Night	Auto / B/ W / Colour / EXT ICR switching
Video Parameter	DWDR, Mirror, 3D Noise reduction, Sharpness / Lightness adjustable
IR Distance	20-30m (36x Ø5mm)
Adjustable IR Brightness	No
Lens	2.8~12mm Lens
AUDIO / VIDEO COMPRESSION
Video compression	H.264
Encoding	Dual-stream, Main stream PAL: 1920x1080 25fps; NTSC:1920x1080 30fps
Effective pixels	1920x1080
Encoding System	Constant bit rate, Variable bit rate optional
Video Bit rate	16kbps - 8000kbps
Stream Type	Complex stream / Video stream
Audio Compression	G.711A
Audio Bit rate	64kbps
NETWORK FUNCTION
Motion detection	Can be set to a single detection zone, Multi-level sensitivity can be set
Privacy zones	4 zones
Snapshot	Support JPEG format, max. resolution based on encoding resolution
Password protection	Support
Character display	Support (Channel & Date)
Alarm function	Video loss, Network disconnect, Tampering alarm, Storage exception
Protocol	TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP
Port protocol	I8, ONVIF
ONVIF	Profile S/G, version 2.2
INTERFACE

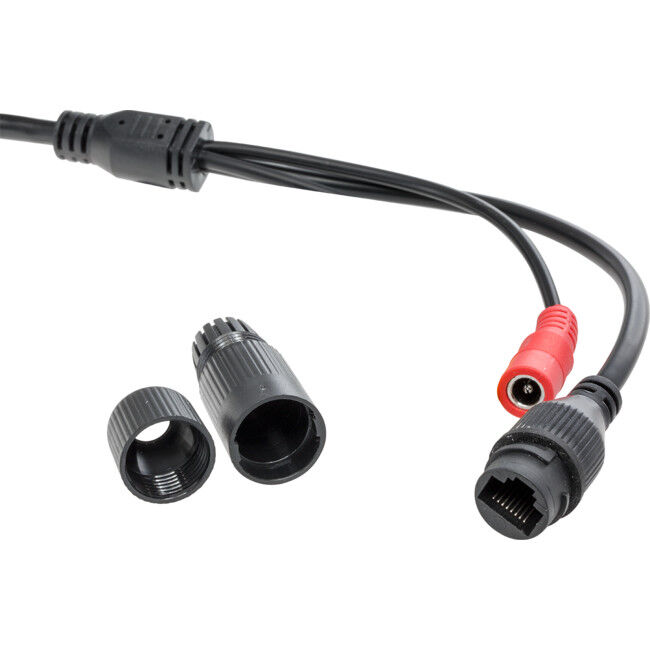

Network Interface	RJ45 10M / 100M adaptive
GENERAL
Operating Conditions	-10°C ~ 55°C
Protection Level	IP65
Power Supply	DC12V/ PoE(IEEE 802.3 AF STANDARD)
Power Consumption	<7W
Dimensions	Ø110 x 100mm
Weight	0.8Kg
