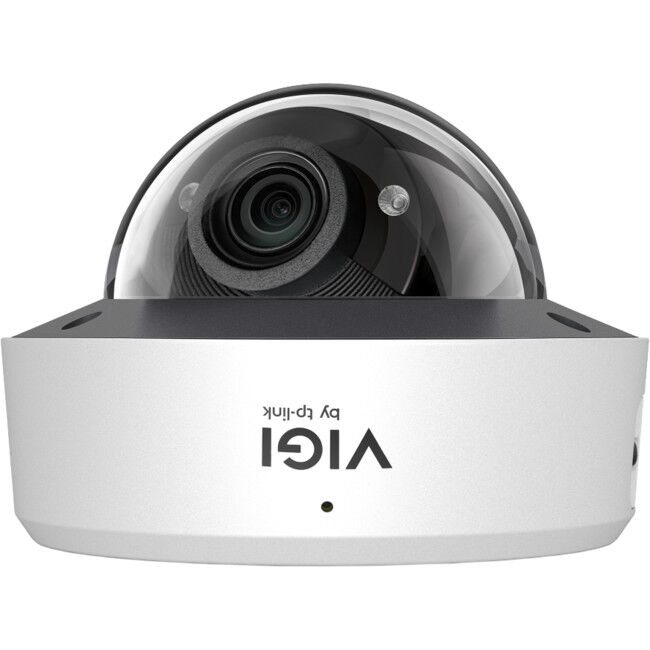

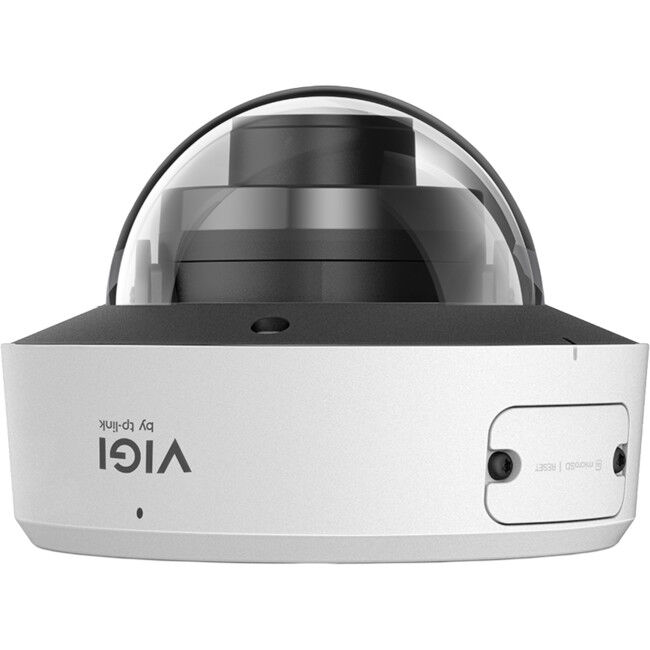

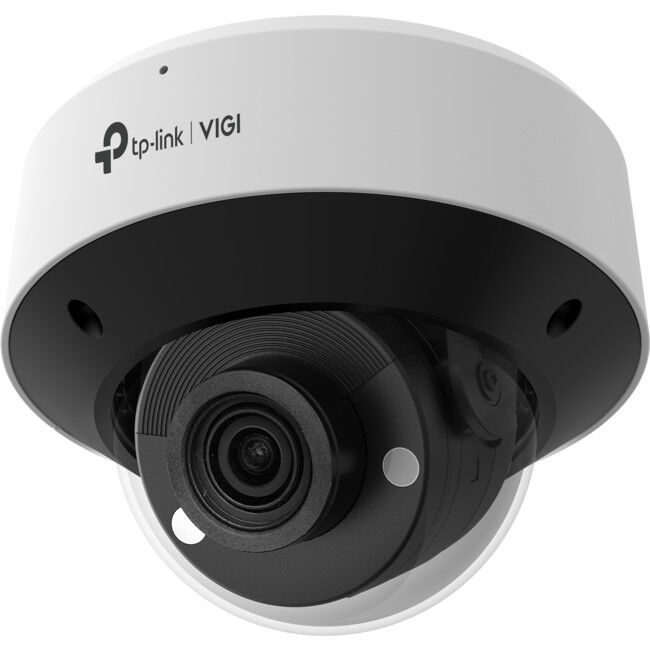

VIGI 4MP IR Motorised Varifocal Dome Network Camera

  • 5X Optical Zoom for Easy Installation and Monitoring
  • 4MP Super-High DefinitionandIR Range Up to 197 ft (60 m)*1
  • Human & Vehicle Classification
  • Smart Detection
  • Smart Video Enhancement Technology
  • Audio and Alarm Interface Available
  • IP67 Weatherproofand IK10 Vandal Proof
  • H.265+ Compression Technology
CAMERA
Image Sensor 1/2.9” Progressive Scan CMOS
Shutter Speed 1/3 to 1/10000 s
Slow Shutter Yes
Minimum Illumination 0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism IR Cut Filter
Day/Night Switch Unified/Scheduled/Auto
LENS
Type Motorized Varifocal Lens
Focal Length 2.7-13.5 mm (5X Optical Zoom)
Aperture F1.6
FOV 2.7-13.5 mm:
• Horizontal FOV: 29.6°-102.0°
• Vertical FOV: 16.8°-53.8°
• Diagonal FOV: 34.1°-122.8°
Lens Mount Φ14
DORI Distance 2.7-13.5 mm:
• Detect: 203-656 ft (62-200 m)
• Observe: 89-276 ft (27-84 m)
• Recognize: 43-131 ft (13-40 m)
• Identify: 23-69 ft (7-21 m)
Angle Adjustment (Manual)
Range Pan: 0° to 350°, Tilt: 0° to 75°, Rotate: 0° to 344°
ILLUMINATOR
IR LED • Quantity: 4
• Range: 197 ft (60 m)*1
• Wavelength: 850 nm
Illuminator On/Off Control Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution 2688x1520
Main Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080

Note:
• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream • Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control CBR, VBR
Video Compression • Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
H.264 Type High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate • Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings • Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
Image Enhancement BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range 120 dB
SNR ≥ 52 dB
Image Parameters Switch Yes
Privacy Mask Up to 4 Masks
ROI 1 Region
OSD Setting Yes
AUDIO
Audio Communication Two-Way Audio
Audio Input Yes
Audio Output Yes
Audio Compression Yes
Audio Sampling Rate 8 KHz
Environment Noise Filtering Yes
Audio Bit Rate 64 Kbps(G.711 alaw)
NETWORK
Protocol TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF Yes
API Open Network Video Interface (Profile S/T/G)
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser • Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and above
Cloud Yes
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
ALARM AND EVENT MANAGEMENT
Smart Event • Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change Detection
Basic Event • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)
• Alarm Input Device
Alarm Linkage • Memory Card Video Recording
• Push Notifications
• Active Defence-Sound Alarm
• Email Alarm
• Upload to FTP Server
• Alarm Output Device
• Send to Alarm Server
INTERFACES
Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm 1 Alarm In, 1 Alarm Out
Reset Button Yes
Power DC Power Port
On-board Storage Built-In Memory Card Slot, Support microSD Card, up to 512 GB*3
Built-in Microphone Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker N/A
Audio 1 Audio In, 1 Audio Out
GENERAL
Operating Temperature -30°C to 60 °C
Storage Temperature -40°C to 60 °C
Operating Humidity 95% or Less (Non-Condensing)
Storage Humidity 95% or Less (Non-Condensing)
Package Content • VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
Material Metal
Net Weight 0.775 Kg
Power Supply • 12V DC ± 5%, Max. 10.8 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max.12 W
Protection IP67 Weatherproof, IK10 Vandal Proof
Product Dimensions (L x W x H) Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)
Certifications CE, NTRA, FCC, VCCI, BSMI, KC, IC, ONVIF, IP67, IK10

(S245ZI)

SKU S245ZI
Model # S245ZI
Brand TP-LINK
