Overview

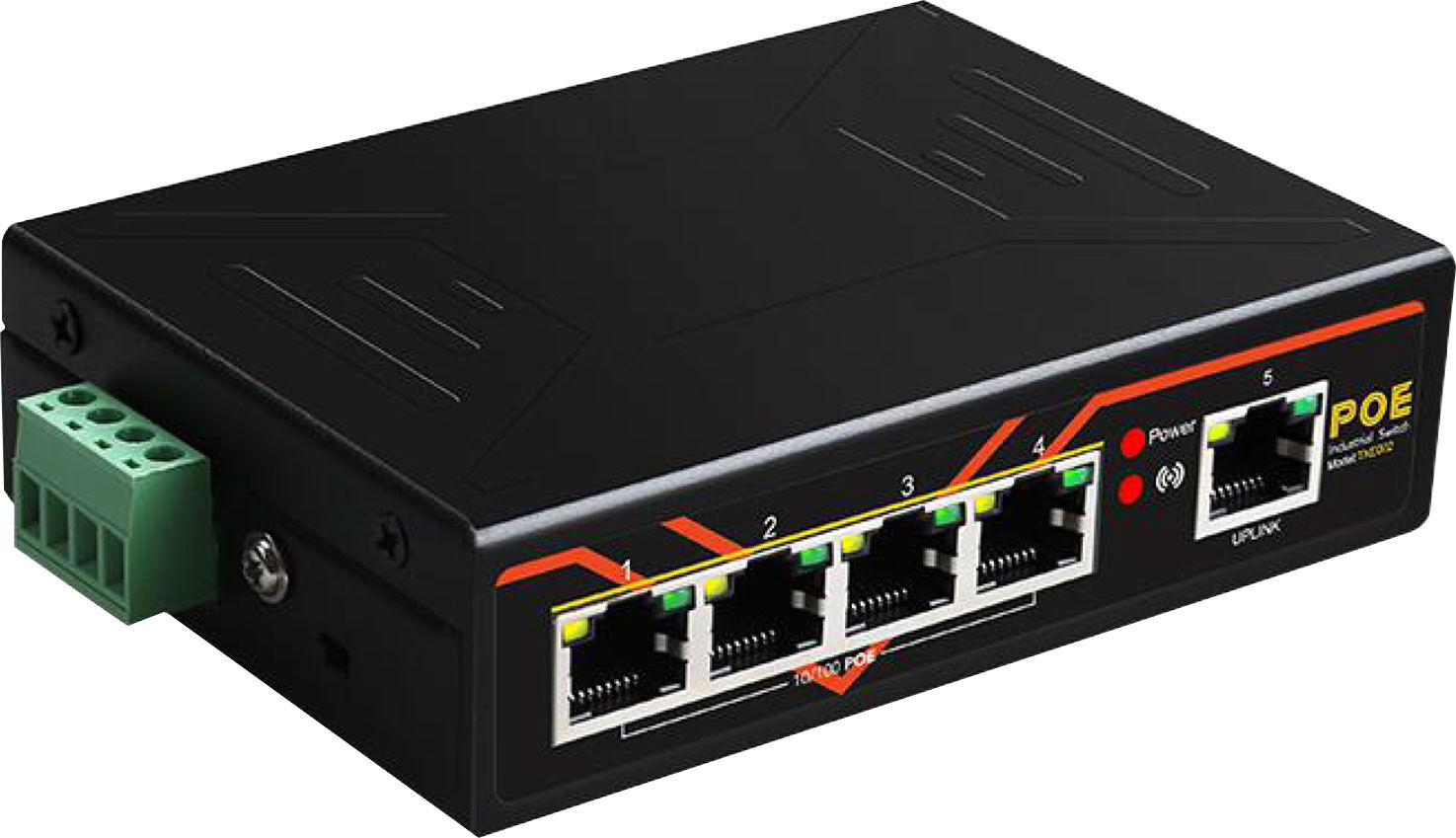

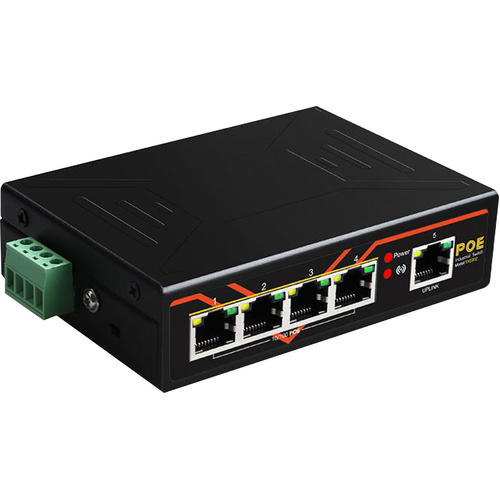

A compact 4 port (+uplink port) 100Mbps switch for use where DIN rail mounting is required in industrial data/automation. Powered by 48V DC input (screw terminal). Its fully compatible with PoE devices, such as IP cameras, access points, and IP phones. Featuring five 10/100Mbps auto-sensing RJ45 ports, with four ports supporting PoE power (Ports 1–4) that comply with IEEE802.3af and IEEE802.3at standards. For added flexibility, the 10m mode allows data transmission distances of up to 200, perfect for larger installations, including; surveillance, offices, dormitories, and small businesses.

Features

  • Five 10/100/1000Mbps RJ45 ports
  • Equipped with four 802.3af/at PoE+ ports
  • Supports PoE power
  • Compact design
  • Delivers consistent network speed and power output for connected devices.

 Specifications

  • Chipset: IP175GHI+IP804A
  • Port Number: 1 port uplink and 4port POE
  • Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az?IEEE 802.3af?IEEE 802.3at
  • Network media: 10Base-T, cat3 or above UTP, 100Base-Tx, cat5 UTP
  • Data rate: 10/100M Forwarding rate 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
  • LED Indicator: 10/100Mbps(Link/Act, speed), Power, POE, 10M Indicator
  • Dimension: 118 x 80 x 30mm
  • Power Input: DC48V-54V
  • Power Consumption: Max1.5W
  • Operating Temperature: -40? to 85?
  • Relative Humidity: 10%-90%(non-condensing)
  • Storage Temperature: -40? to 85?
  • Relative Humidity: 5%-90%(non-condensing)
  • Other function: 10M switch

    *Specifications are subject to change without notice.

(DR4191)

SKU DR4191
Model # DR4191
Barcode # 9321758262108
