AX5400 MESH WIFI 6 EXTENDER

Overview

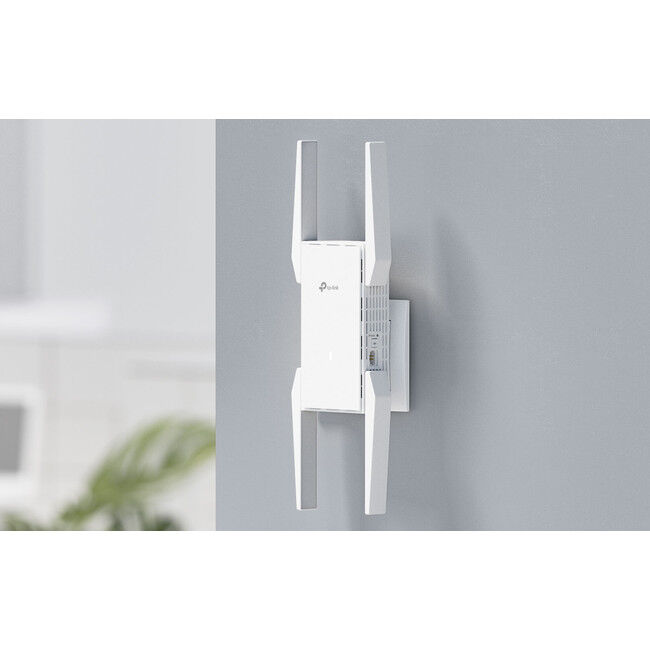

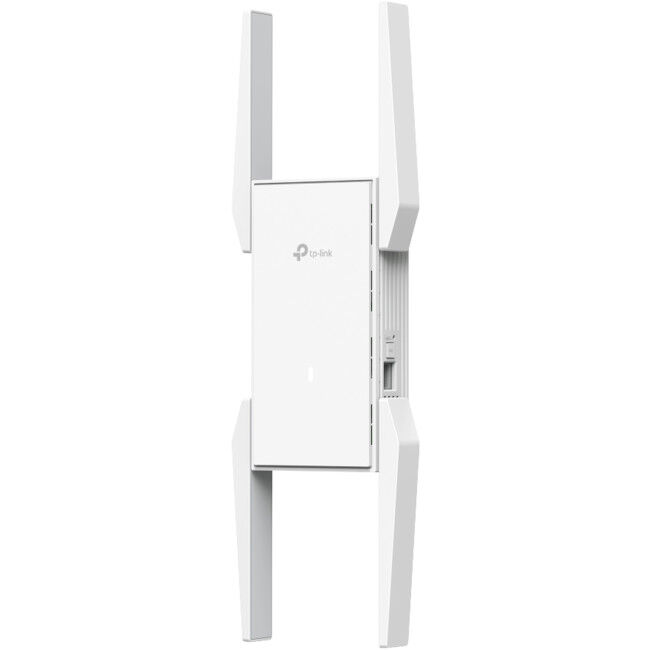

EAP673-EXTENDER TP-LINK AX5400 Mesh Wi-Fi 6 Extender

AX5400 Dual-Band Wi-Fi 6: Up to 5.4Gbps wireless speeds*¹.
Wi-Fi Dead-Zone Killer: Four high-gain external antennas extend Wi-Fi signals to every dead zone.
AP Mode: Simply plug in an Ethernet cable to create a new Wi-Fi AP.
Seamless Mesh Networking: Supports Omada Mesh and Roaming for reliable networking, ideal for large-scale scenarios*².
Easy & Quick Installation: Standard AC power supply for flexible deployment.
Quick Adoption: Conveninet operationvia Omada web or app once the extender powers on.
Centralised Cloud Management: Integrates into Omada SDN for cloud access and remote management.

1: Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection, quality, and client condition.

2: Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.

Specifications

HARDWARE FEATURES	Interface	1 × Gigabit Ethernet Port
	Physical Security Lock	No
	Button	Reset, LED
	Power Supply	100~240V, 50/60Hz
	Max. Power Consumption	18W
	Antenna	4 × External Antennas 2.4 GHz: 2 × 3dBi 5 GHz: 4 × 5dBi
	Mounting	Plug in
WIRELESS FEATURES	Coverage	140m (1500ft²)*⁵
	Concurrent Clients	250+*⁴
	Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
	Frequency	2.4 GHz and 5 GHz
	Signal Rate	5 GHz: Up to 4804 Mbps 2.4 GHz: Up to 574 Mbps
	Wireless Functions	16 SSIDs (Up to 8 SSIDs on each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) Seamless Roaming*² Beamforming Rate Limit Load Balance Airtime Fairness Band Steering Reboot Schedule Wireless Schedule RADIUS Accounting MAC Authentication Wireless Statistics Static IP/Dynamic IP
	Wireless Security	Captive Portal Authentication*⁴ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
	Transmission Power	CE: <20 dBm (2.4 GHz, EIRP) <23 dBm (5 GHz, band1 & band2, EIRP) <30 dBm (5 GHz, band3, EIRP) FCC: <25 dBm (2.4 GHz) <28 dBm (5 GHz)
MANAGEMENT FEATURES	Omada App	Yes
	Centralised Management	Omada Hardware Controller Omada Software Controller Omada Cloud-Based Controller
	Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
	Email Alerts	Yes
	LED ON/OFF Control	Yes
	Management MAC Access Control	Yes
	SNMP	v1, v2c, v3
	System Logging Local/Remote Syslog	Yes
	SSH	Yes
	Web-based Management	Yes
	Management VLAN	Yes
	Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
ENVIRONMENT	Operating Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	−40°C~70°C (−40°F~158°F)
	Operating Humidity	10~90% RH non-condensing
	Storage Humidity	5~90% RH non-condensing
GENERAL	Dimensions (W×D×H)	160mm × 80mm × 37.8mm (6.3″ × 3.1″ × 1.5″)
	Package Contents	EAP673-Extender AX5400 Mesh Wi-Fi 6 Extender Installation Guide
	Certification	CE, FCC, IC, RoHS, UL

2: Omada Mesh, Seamless Roaming, and Captive Portal require an Omada SDN controller.

3: Use of Wi-Fi 6 (802.11ax) and its features, including OFDMA and 1024-QAM, require clients to support the corresponding features.

4: The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.

5: Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.

(EAP673-Extender)
