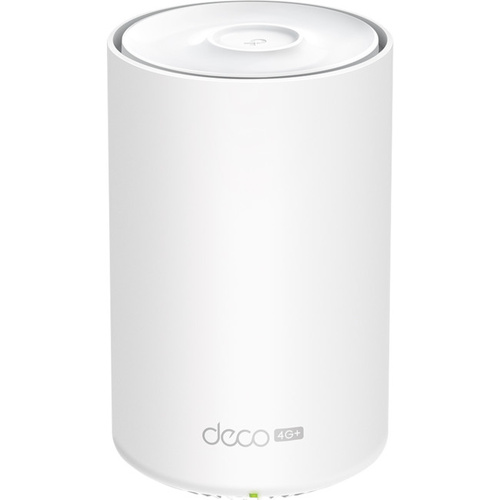

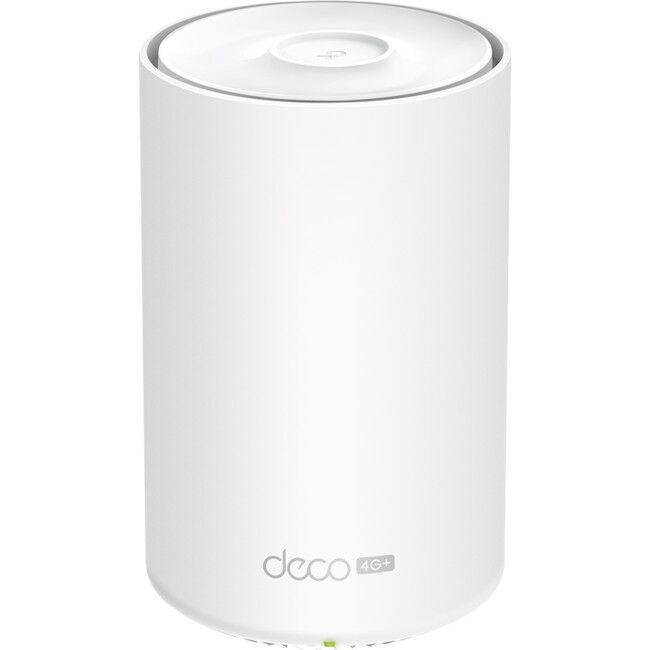

AX1500 WHOLE HOME MESH WIFI 6 GATEWAY

Internet Everywhere with 4G+ Speed–ProvidesWiFi6 Mesh coverage through 4G+ CAT6 access.
AX1500 Dual-Band WiFi–1201 Mbps (5 GHz) and 300 Mbps (2.4 GHz) dual bandWiFiwithWiFi6 technology.
Seamless Roaming– Walk through your home and stay connected with the fastest possible speeds.
Ultra-Low Latency– Greater reduction in latency enables more responsive gaming and video chatting.
Gigabit Wired Speeds– 3× Gigabit ports provide sufficient connectivity.**
Parental Controls– Limit online time and block inappropriate websites according to unique profiles you create for each family member.

WIRELESS
Standards	Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz
WiFi Speeds	AX1500 5 GHz: 1201Mbps (802.11ax) 2.4 GHz: 300 Mbps (802.11n)
WiFi Range	1-2 Bedroom Houses (1-pack) TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2 LTE antennas, 2 Wi-Fi antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas
WiFi Capacity	High Dual-Band Distribute devices to different bands for optimal performance 2×2 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices
Working Modes	3G/4G, Router, Access Point

SECURITY
Network Security	SPI Firewall Access Control
Guest Network	1× 5 GHz Guest Network 1× 2.4 GHz Guest Network
WiFi Encryption	WPA-Personal WPA2-Personal WPA3-Personal

HARDWARE
Ethernet Ports	3× Gigabit Ports Supports WAN/LAN auto-sensing
Buttons	RESET Button

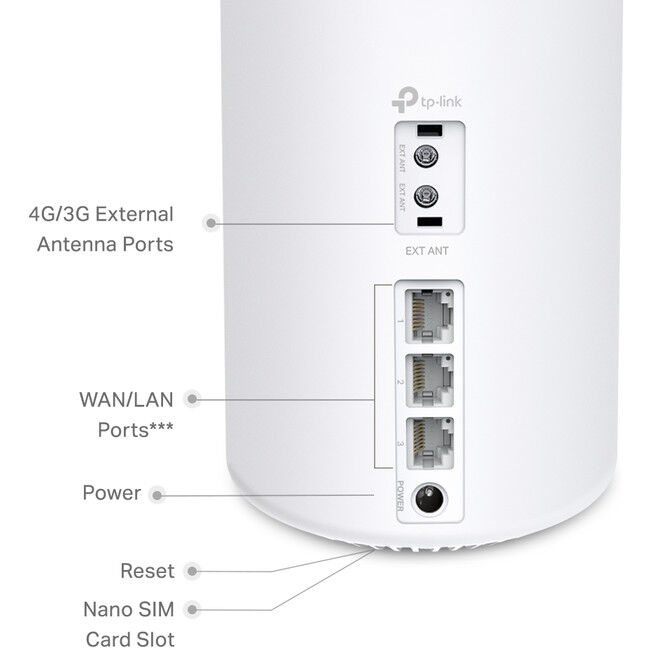

Ports and Connections	2× 3G/4G external SMB antenna interface (also provide 2x SMB to SMA-F Adapters) SIM Card Format: Nano-SIM Compatibility 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz) TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) 3G: DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

SOFTWARE
Protocols	IPv4 IPv6
Parental Controls	Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Report
WAN Types	Dynamic IP Static IP PPPoE L2TP PPTP
Quality of Service	QoS by Device
Cloud Service	OTA Firmware Upgrade TP-Link ID DDNS
NAT Forwarding	Port Forwarding UPnP
IPTV	IGMP Proxy IGMP Snooping Bridge Tag VLAN
DHCP	Address Reservation DHCP Client List Server
DDNS	TP-Link
Management	Deco App

TEST DATA
WiFi Transmission Power	CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz)

PHYSICAL
Dimensions (W×D×H)	4.13 × 4.13 × 6.57 in (105 × 105 × 167 mm)

OTHERS
Certification	CE, RoHS
Package Contents	1-pack 1 Deco X10-4G unit 1 RJ45 Ethernet Cable 1 Power Adapter 2 SMB to SMA Adapters Quick Installation Guide
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH
